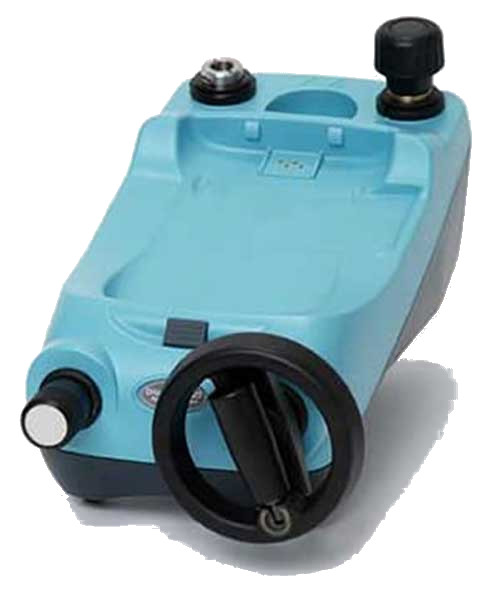

GE Druck PV 623 Pressure Station
Our Price: Discontinued Replaced by PV 623G
Item Number: PV623
Configuration: -PV623
Manufacturer: Druck (GE)
Part Number: PV623
Product Options
GE Druck PV 623 Intrinsically Safe Pneumatic Pressure Station Option
|
|
GE Druck PV 623 Pressure Station
ATEX Certified!
- PV 623 - hydraulic pressure generator for pressures up to 1000 bar (15000 psi).
Each pressure station is designed for stand-alone operation as a pressure generator and can replace conventional hand pumps and gas bottles to provide greater efficiency and ease of use. They can be used on the workbench or combined with a reference instrument, such as the DPI 104 they can be used as comparators and pressure calibrators.
Combining any of the pressure stations with a PM 620 pressure module and the DPI 620 calibrator creates a uniquely capable, self-contained pressure calibrator.
Features
- A uniquely capable, re-rangeable and self contained pressure test system
- Advanced pressure generation
- 95% vacuum to 20 bar (300 psi) pneumatic
- 95% vacuum to 100 bar (1500 psi) pneumatic
- 0 to 1000 bar (15000 psi) hydraulic
- Stand alone replacements for hand pumps and can be used as comparators
- Bench top use as comparators
- Overpressure protection valve can be fitted
- Quick fit, self sealing pressure adaptors and hoses reduces the need for tools and likelihood of leaks
Applications
- Maintenance and calibration
- System measurement and monitoring
- Indicator and recorder
- Process loop set up and diagnostics
- Switch, trip and safety system testing
Suitable for:
- Plant and process engineers
- Service companies and site contractors
- Installation and commissioning engineers
- Laboratories
Technical Specifications
|
Our Price: Discontinued Replaced by MC 620G
GE Druck MC 620 module carrier attaches the head of the DPI 620 to provide two independent pressure measurement channels. These can be fitted with any PM 620 pressure module from 25 mbar to 1000 bar (10 inH2O to 15000 psi).
|
GE Druck PM 620 is the latest development in digital output sensor technology incorporating a number of key innovations to allow pressure re-ranging of compatible equipment.
|
Our Price: Discontinued Replaced by PV 621G
GE Druck PV 621 - pneumatic pressure generator for pressures 95% vacuum to 20 bar (300 psi).
|
Our Price: Discontinued Replaced by PV 622G
GE Druck PV 622 - pneumatic pressure generator for pressures 95% vacuum to 100 bar (1500 psi).
|
GE Druck DPI 620 Series an ultra-compact electrical, temperature and frequency calibrator and HART communicator, which provides simultaneous measurement and source capabilities with a fully featured HART digital interface.
|
GE Druck DPI 620 IS allows configuration and multi-function calibration in hazardous areas. The ATEX and IECEx certification allows the instrument to be employed globally in Zone 0 areas.
|
