GE Druck DPI 620 Genii Calibrator and Hart Communicator
|
Item Number: DPI620G
Configuration: DPI620G
Manufacturer: Druck (GE)
Part Number: DPI620G
Product Options
* denotes required field
GE Druck DPI 620 Genii Model Options*
GE Druck DPI 620 Genii Pressure Base Station
GE Druck DPI 620 Genii Pressure Module Selection
* Whole number only
|
|

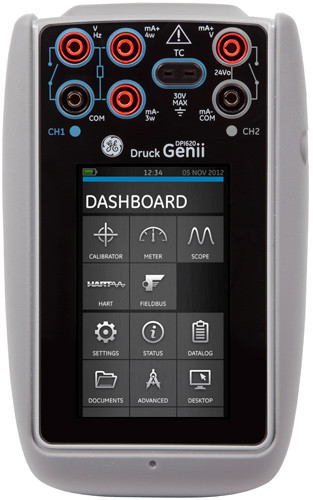

GE Druck DPI 620 Genii Calibrator and Hart Communicator
The GE Druck DPI 620 Genii is a flexible modular calibration system that uses three basic components to perform multiple functions that formerly required a wide range of different instruments. The basic component of this system is the GE Druck DPI 620 Genii multifunction calibrator, a next-generation, ultra-compact, electrical, frequency, and temperature calibrator, which provides simultaneous measurement and source capabilities. Pressure measurement is provided by interchangeable pressure modules that can be attached to the calibrator by a pressure module carrier. Inside is a fully functional HART field communicator, replacing the need for a stand-alone HART communication unit. A Foundation Fieldbus communicator is also available as an option. If pressure generation is required, the calibrator and pressure module can be attached to one of three pressure generation stations, to form a high performance, full-integrated pressure calibrator.
GE Druck DPI 620 Genii multifunction calibrators can measure and source mA, mV, V, Ohms, frequency, and a variety of RTDs and T/Cs. GE Druck DPI 620 Genii multifunction calibrators provide an isolated 24V loop power supply to energize devices and control loops and a stabilized DC voltage supply for ratio metric transducers. A HART digital configuration is provided for set-up and calibration adjustments of HART devices. As the next generation model, the DPI 620 Genii incorporates an advanced touch screen and new user interface for a flatter menu structure and greater ease-of-use. A completely new digital platform supports HART and Fieldbus applications. The intuitive dashboard allows for quickly launching applications. The compact and lightweight DPI 620 Genii multifunction calibrator is designed for rugged field applications, with a robust casing and weather-proofing to IP 65.
HART / Foundation Fieldbus Communicator
One DPI 620 Genii takes the place of a calibrator and a HART / Foundation Fieldbus communicator, saving you thousands of dollars.
- Hand-held HART / Foundation Fieldbus communicator with color interface
- Complete Device Description (DD) Library
- Free-of-charge DD Library updates
- Robust, weatherproof and extremely compact
Features
- Multifunction capabilities: electrical, frequency, temperature and pressure
- Complete HART communicator included
- Optional Foundation Fieldbus communicator
- Modular re-rangeable and expandable concept
- Individual components can be used as stand-alone instruments
- Allows significant inventory reductions
- Simplifies training and improves operator safety
- Reduces cost of ownership

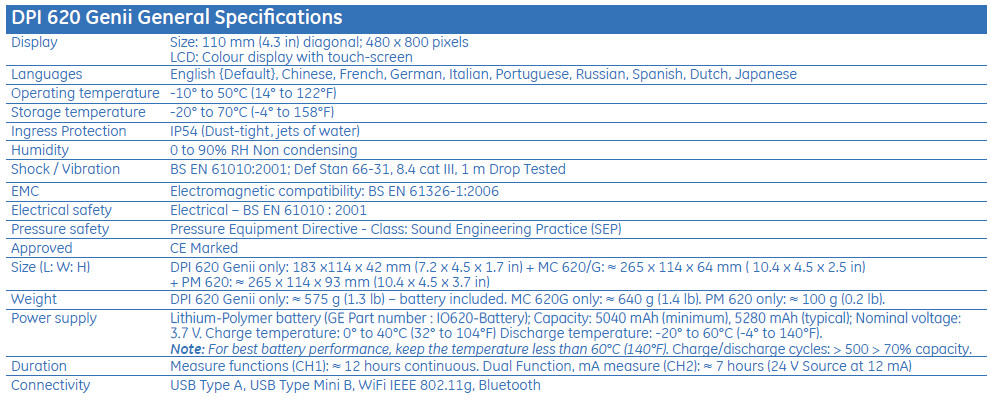

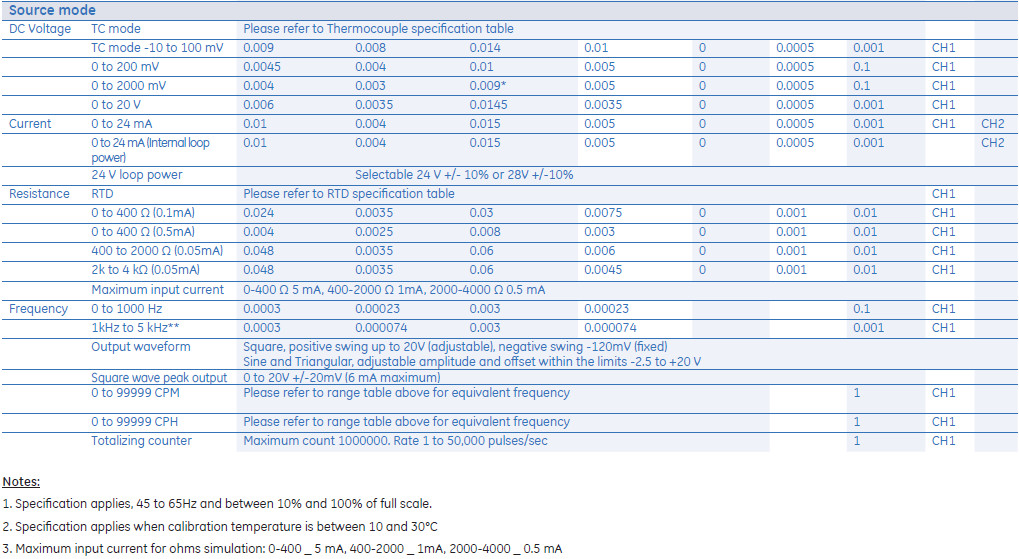

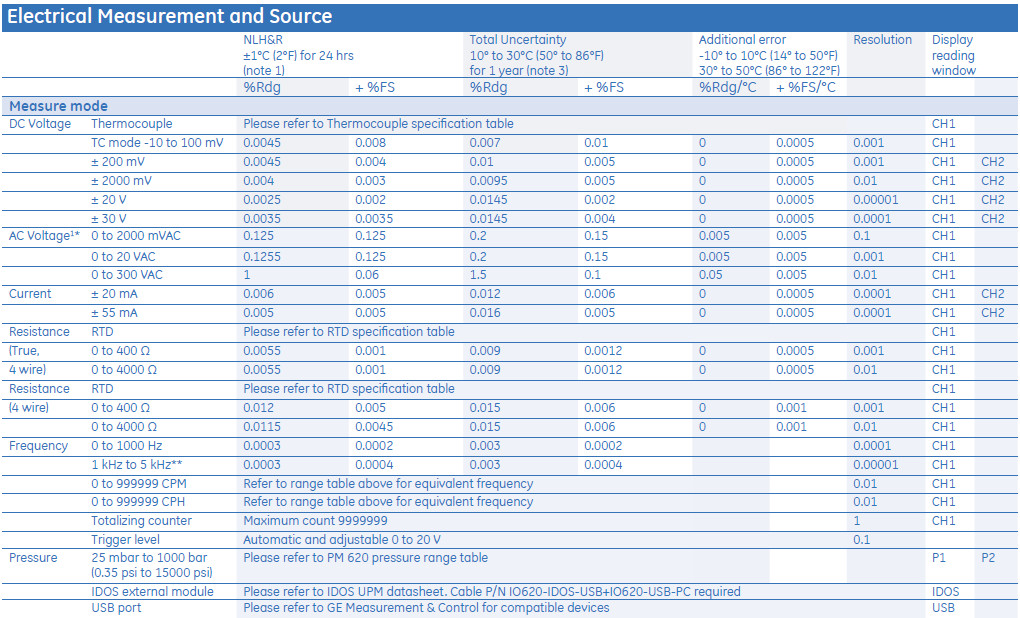

Technical Specifications
|
GE Druck MC 620G module carrier attaches the head of the DPI 620G to provide two independent pressure measurement channels. These can be fitted with any PM 620 pressure module from 25 mbar to 1000 bar (10 inH2O to 15000 psi).
|
GE Druck PM 620 is the latest development in digital output sensor technology incorporating a number of key innovations to allow pressure re-ranging of compatible equipment.
|
GE Druck PV 621G - Pneumatic pressure station 20 bar (300 psi).
|
GE Druck PV 622G - Pneumatic pressure station 100 bar (1500 psi).
|
GE Druck PV 623G - Pressure station 1000 bar (15000 psi).
| |
