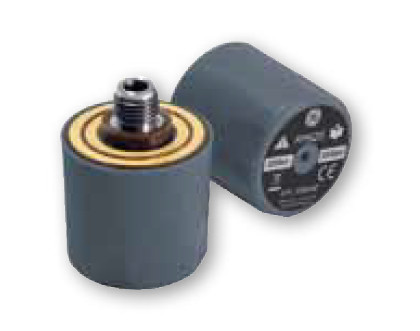

GE Druck PM 620 Pressure Module
|
Item Number: PM620
Manufacturer: Druck (GE)
Part Number: PM620
Product Options
GE Druck PM 620 Pressure Module Selection
* Whole number only
|
|
GE Druck PM 620 Pressure Module
The PM 620 is the latest development in digital output sensor technology incorporating a number of key innovations to allow pressure re-ranging of compatible equipment. A simple screw fit makes both the pressure and electrical connections without the need for tools, sealing tape, cables or plugs and digital characterisation allows interchangeability without set-up or calibration. The modules can be changed in a few seconds to re-range an instrument at a fraction of the cost of a new one.
The pressure modules can be used in conjunction with the relevant pneumatic or hydraulic pressure station and the DPI 620 multifunction calibrator to form an integrated pressure calibrator for test and calibration of pressure instruments including transmitters, transducers, switches, gauges, indicators and recorders. Alternatively, the modules can be combined with the pressure station by a module carrier, which adds a dual channel pressure measurement capability that can be re-ranged in seconds. Pressure ranges are available from 25 mbar to 1000 bar (10 inH2O to 15000 psi) with a total measurement uncertainty, including operation over 0 to 50o C (32 to 122°F) for one year.Features
- Fully interchangeable with no need for set-up or calibration
- Simple screw fit - hand tight no tools required
- Ranges from 25 mbar to 1000 bar (10 inH2O to 15000 psi)
- Accuracy from 0.005% FS
|
GE Druck MC 620G module carrier attaches the head of the DPI 620G to provide two independent pressure measurement channels. These can be fitted with any PM 620 pressure module from 25 mbar to 1000 bar (10 inH2O to 15000 psi).
|
GE Druck PV 621G - Pneumatic pressure station 20 bar (300 psi).
|
GE Druck PV 622G - Pneumatic pressure station 100 bar (1500 psi).
|
GE Druck PV 623G - Pressure station 1000 bar (15000 psi).
|
GE Druck DPI 620 Genii is a flexible modular calibration system that uses three basic components to perform multiple functions that formerly required a wide range of different instruments.
| |
