GE Druck PV 623G Pressure Station
|
Item Number: PV623G
Manufacturer: Druck (GE)
Part Number: PV623G
* Whole number only
|
|

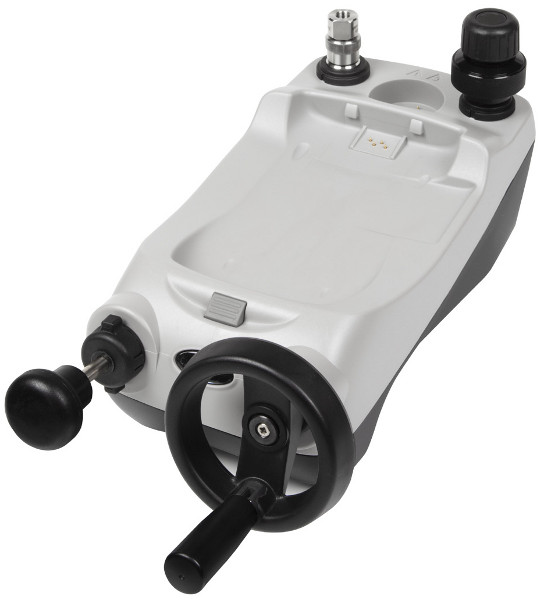

GE Druck PV 623G Pressure Station
- PV 623G - Pressure station 1000 bar (15000 psi)
There are three pressure generation stations: the PV 621/G, a pneumatic pressure generator for pressures 95% vacuum to 20 bar (300 psi); the PV 622/G, a pneumatic pressure generator for pressures 95% vacuum to 100 bar (1500 psi); and the PV 623/G, a hydraulic pressure generator for pressures up to 1000 bar (15000 psi). Each pressure station is designed for stand-alone operation as a pressure generator and can replace conventional hand pumps to provide greater efficiency and ease of use. They can also be used on the workbench as comparators. Combining any of the pressure stations with a PM 620 pressure module and the DPI 620/G calibrator creates a uniquely capable, self-contained pressure calibrator.
Features
- A uniquely capable, re-rangeable and self contained pressure test system
- Advanced pressure generation
- 95% vacuum to 20 bar (300 psi) pneumatic
- 95% vacuum to 100 bar (1500 psi) pneumatic
- 0 to 1000 bar (15000 psi) hydraulic
- Stand alone replacements for hand pumps
- Bench top use as comparators
- Compatible with PM620 pressure modules and DPI620 Genii multifunction calibrator
- Dual channel measurement available (MC620)

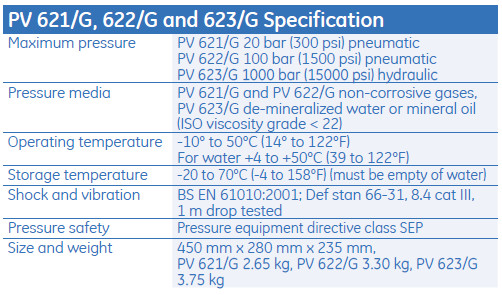

Technical Specifications
|
GE Druck MC 620G module carrier attaches the head of the DPI 620G to provide two independent pressure measurement channels. These can be fitted with any PM 620 pressure module from 25 mbar to 1000 bar (10 inH2O to 15000 psi).
|
GE Druck PV 621G - Pneumatic pressure station 20 bar (300 psi).
|
GE Druck PV 622G - Pneumatic pressure station 100 bar (1500 psi).
|
GE Druck DPI 620 Genii is a flexible modular calibration system that uses three basic components to perform multiple functions that formerly required a wide range of different instruments.
|
