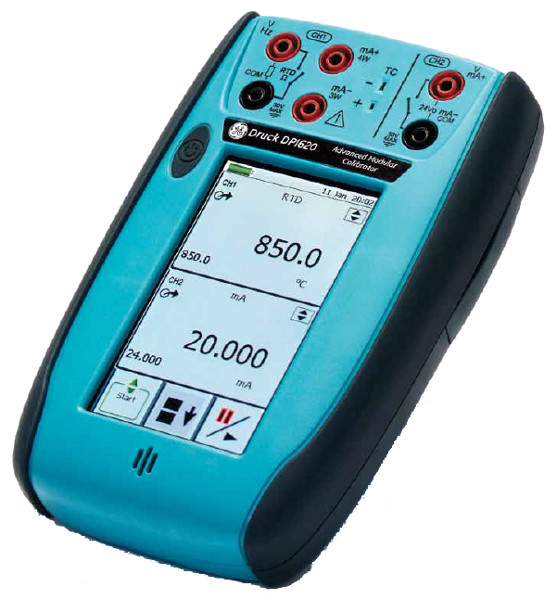

GE Druck DPI 620 Advanced Modular Calibrator

The DPI 620 Series an ultra-compact electrical, temperature and frequency calibrator and HART communicator, which provides simultaneous measurement and source capabilities with a fully featured HART digital interface. It integrates with pressure modules and pressure generation stations to form uniquely capable pressure test and calibration systems.

     The Intrinsically Safe version of the DPI 620 Series is now available allowing configuration and multi-function calibration in hazardous areas. The ATEX and IECEx certification allows the instrument to be employed globally in Zone 0 areas. The certification also applies to the instrument’s battery pack, permitting hot swapping within hazardous locations. The approval now further extends the range of potential applications of the powerful communicator/calibrator, especially in the oil and gas and process sectors. As with all instruments in the DPI 620 family, the IS version is rugged and compact and weather-proofed to IP65.

• Multi-function capabilities: electrical, frequency, temperature and pressure
• ATEX/IEC approved
• Complete HART communicator included
• Modular re-arrangeable and expandable concept
• Individual components can be used as stand-alone instruments
• Allows significant inventory reductions
• Simplifies training and improves operator safety
• Reduces cost of ownership
• Measure, source and simulate multiple parameters
• Complete HART communicator included
• Easy-to-use, with photo quality color touch screen, which can be operated by a gloved hand
• Weather-proof to IP 65
• Can display up to 6 active readings
• Available with a range of add-on modules, pressure measurement modules and generation stations, Intecal Field Calibration documenting module, 300Vac measurement probe (not available in IS version)
• Digital interface for pressure modules and future options
• USB master and slave for connecting to a PC and peripherals (not available in IS version)
• Available in Windows CE version
• Long-life battery pack

• Instrumentation installation, commissioning, maintenance and calibration
• HART device configuration, trimming and calibration
• Integrates with leading calibration software solutions
• PDA for documenting routine maintenance and viewing Word, Excel, Power Point, PDF and images
• System measurement and monitoring
• Indicator, recorder and controller testing
• Process loop set up and diagnostics
• Switch, trip and safety system testing
• Multi-channel data logging for system testing and diagnostics

DPI 620/CE

• Intecal Basic (P/N 781-016-B)
• Intecal Advanced (P/N 781-016-A)

• Carrying case (P/N IO620-CASE-1)
• System carrying case (P/N IO620-CASE-2)
• System carrying case (IO620-CASE-3)
• Modular System Transit Case (IO620-CASE-4)


• Spare/replacement lithium polymer rechargeable battery (P/N IO620-BATTERY)
• Battery charging station (P/N IO620-CHARGER)
• Spare/replacement battery charger. (IO620IS-CHARGER)

• Spare/replacement mains adapter (P/N IO620-PSU)

• USB cable (P/N IO620-USB-PC)
• IDOS to USB converter (P/N IO620-IDOS-USB)
• USB to RS 232 cable (P/N IO620-USB-RS232)

• WiFi IEEE 802.11g for DPI 620 CE (P/N IO620-WIFI)

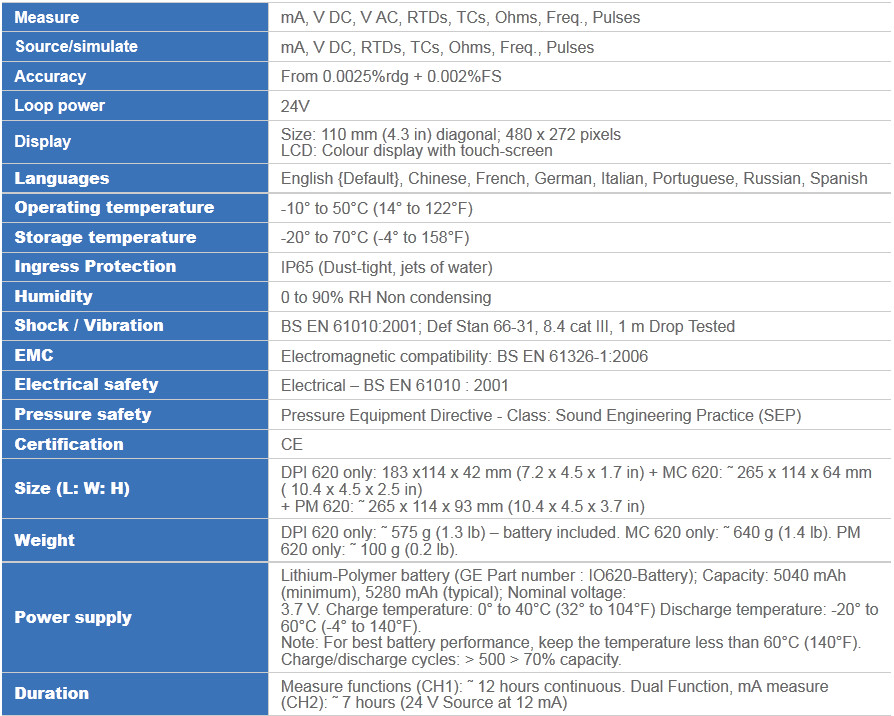

GE Druck DPI 620 Data Sheet
