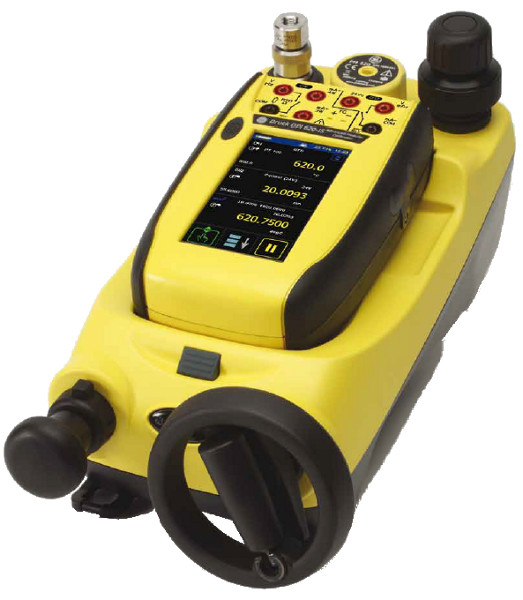

GE Druck DPI 620 IS Intrinsically Safe Advanced Modular Calibrator
ATEX Certified!
The DPI 620 Series an ultra-compact electrical, temperature and frequency calibrator and HART communicator, which provides simultaneous measurement and source capabilities with a fully featured HART digital interface. It integrates with pressure modules and pressure generation stations to form uniquely capable pressure test and calibration systems.
The Intrinsically Safe version of the DPI 620 Series is now available allowing configuration and multi-function calibration in hazardous areas. The ATEX and IECEx certification allows the instrument to be employed globally in Zone 0 areas. The certification also applies to the instrument’s battery pack, permitting hot swapping within hazardous locations. The approval now further extends the range of potential applications of the powerful communicator/calibrator, especially in the oil and gas and process sectors. As with all instruments in the DPI 620 family, the IS version is rugged and compact and weather-proofed to IP65.
Features
- Multi-function capabilities: electrical, frequency, temperature and pressure
- ATEX/IEC approved
- Complete HART communicator included
- Modular re-arrangeable and expandable concept
- Individual components can be used as stand-alone instruments
- Allows significant inventory reductions
- Simplifies training and improves operator safety
- Reduces cost of ownership
- Measure, source and simulate multiple parameters
- Complete HART communicator included

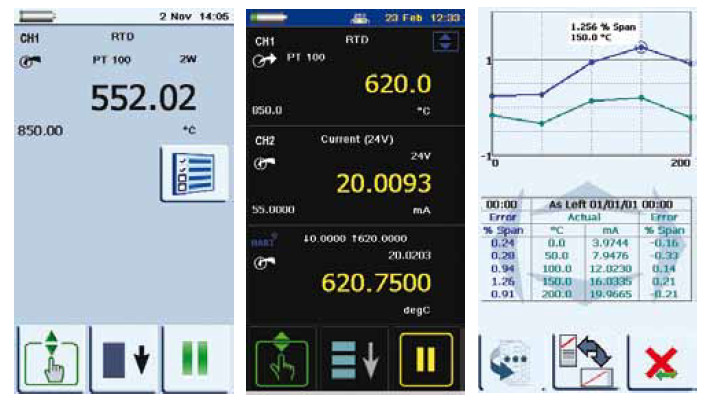

- Easy-to-use, with photo quality color touch screen, which can be operated by a gloved hand
- Weather-proof to IP 65
- Can display up to 6 active readings
- Available with a range of add-on modules, pressure measurement modules and generation stations, Intecal Field Calibration documenting module, 300Vac measurement probe (not available in IS version)
- Digital interface for pressure modules and future options
- USB master and slave for connecting to a PC and peripherals (not available in IS version)
- Available in Windows CE version
- Long-life battery pack

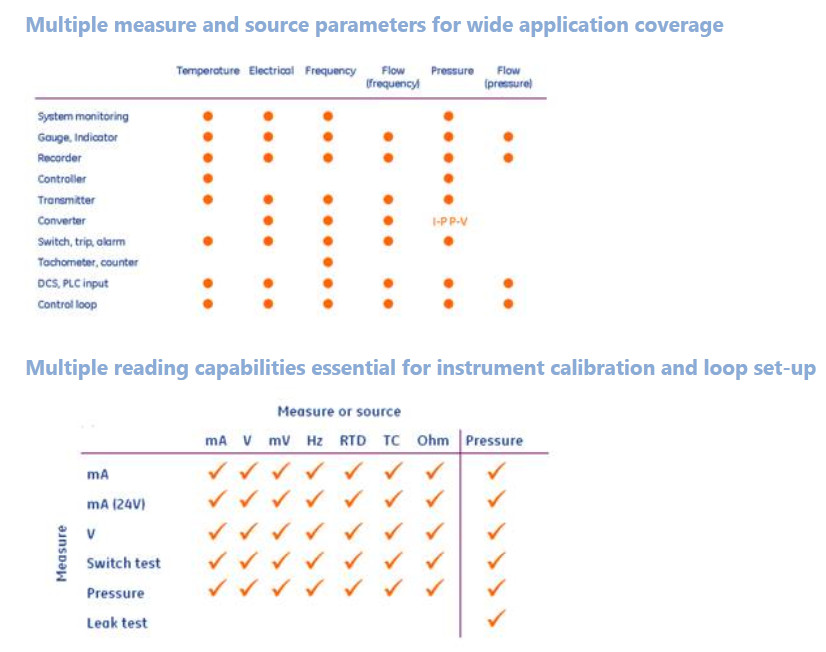

 Applications
- Instrumentation installation, commissioning, maintenance and calibration
- HART device configuration, trimming and calibration
- Integrates with leading calibration software solutions
- PDA for documenting routine maintenance and viewing Word, Excel, Power Point, PDF and images
- System measurement and monitoring
- Indicator, recorder and controller testing
- Process loop set up and diagnostics
- Switch, trip and safety system testing
- Multi-channel data logging for system testing and diagnostics

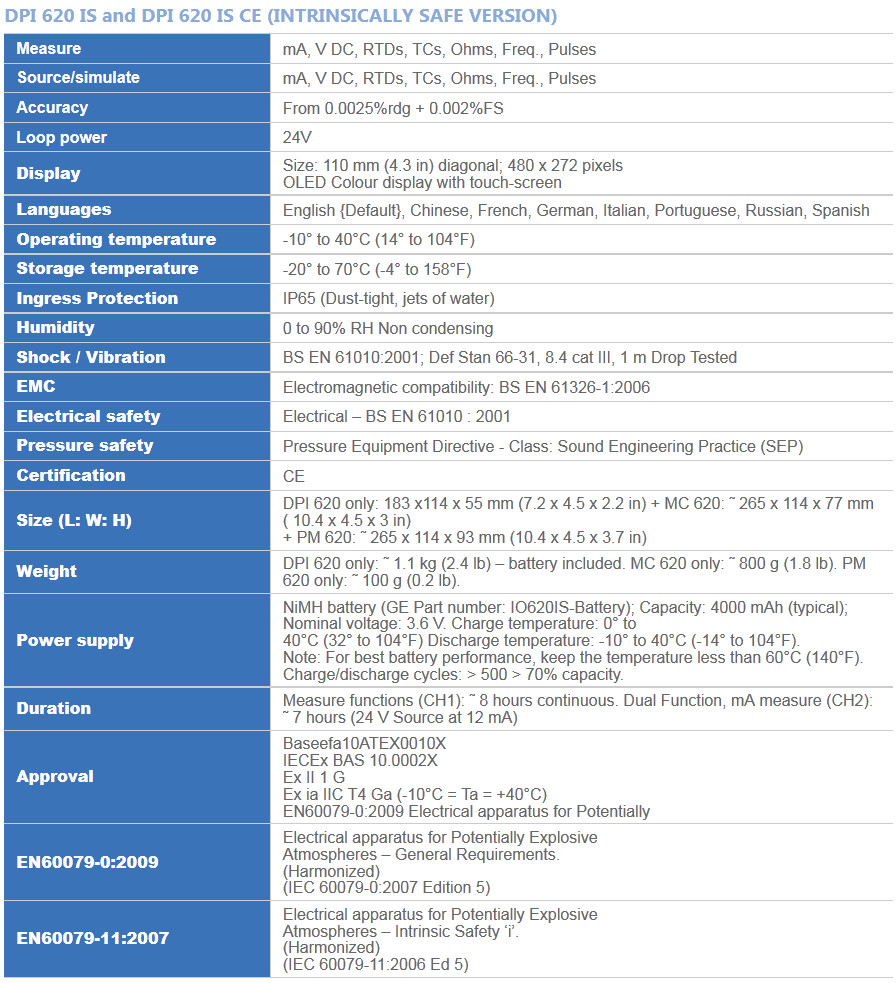

 Technical Specifications Accessories specifically for the DPI 620 IS / CE
- Carrying case (IO620-CASE-1-IS)
- System carrying case (IO620-CASE-2-IS)
- Spare/replacement NiMH rechargeable battery (IO620IS-BATTERY)
- Spare/replacement battery charger. (IO620IS-CHARGER)
- Spare/replacement battery charging station (IO620IS-CRADLE Ex)
|
GE Druck PM 620 is the latest development in digital output sensor technology incorporating a number of key innovations to allow pressure re-ranging of compatible equipment.
|
GE Druck DPI 620 Genii is a flexible modular calibration system that uses three basic components to perform multiple functions that formerly required a wide range of different instruments.
|
