GE Druck MC 620 Module Carrier
Our Price: Discontinued Replaced by MC 620G
Item Number: MC620
Manufacturer: Druck (GE)
Part Number: MC620
|
 GE Druck MC 620 Module Carrier GE Druck MC 620 Intrinsically Safe Module Carrier |
|
GE Druck MC 620 Module Carrier

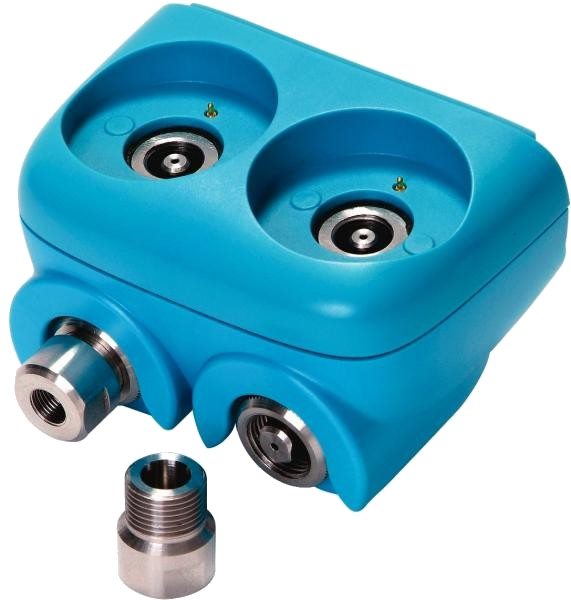

The MC 620 module carrier attaches the head of the DPI 620 to provide two independent pressure measurement channels. These can be fitted with any PM 620 pressure module from 25 mbar to 1000 bar (10 inH2O to 15000 psi). A simple screw fit means no tools are required and ensures both a high integrity pressure seal and a reliable digital interface.
The pressure connection to the device under test is a simple finger tight system with interchangeable adaptors. This tool-less connection method is quick to use and provides a high integrity seal. The same system is used on the interconnecting hose and adaptor accessories, such that the only connection requiring tools and seals/sealing tape is the final connection to the device under test. The carrier is also designed for pressure safety and will automatically seal if a module is not fitted or if the user attempts to remove it.
Features
- 2 independent pressure channels
- Simple to re-range
- No tools or setup – just a simple screw fit
- Pressure protection

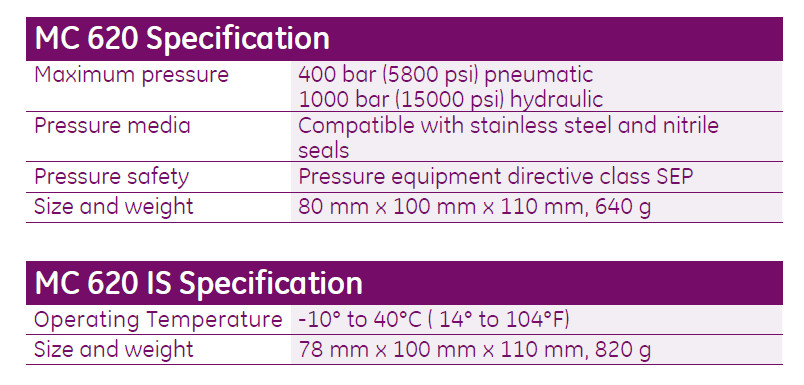

Technical Specifications
|
GE Druck PM 620 is the latest development in digital output sensor technology incorporating a number of key innovations to allow pressure re-ranging of compatible equipment.
|
Our Price: Discontinued Replaced by PV 621G
GE Druck PV 621 - pneumatic pressure generator for pressures 95% vacuum to 20 bar (300 psi).
|
Our Price: Discontinued Replaced by PV 622G
GE Druck PV 622 - pneumatic pressure generator for pressures 95% vacuum to 100 bar (1500 psi).
|
Our Price: Discontinued Replaced by PV 623G
GE Druck PV 623 - hydraulic pressure generator for pressures up to 1000 bar (15000 psi).
|
GE Druck DPI 620 Series an ultra-compact electrical, temperature and frequency calibrator and HART communicator, which provides simultaneous measurement and source capabilities with a fully featured HART digital interface.
|
GE Druck DPI 620 IS allows configuration and multi-function calibration in hazardous areas. The ATEX and IECEx certification allows the instrument to be employed globally in Zone 0 areas.
|
