Fluke CLV IR Window for Indoor Low Voltage

Our Price: Discontinued
Item Number: FLK-075-CLV
Manufacturer: Fluke
Part Number: FLK-075-CLV

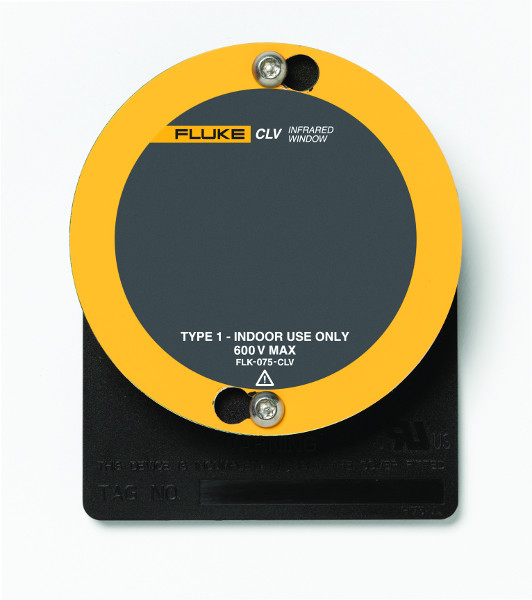

Fluke CLV IR Window for Indoor Low Voltage
Fluke CLV IR Window for Indoor Low Voltage
Fluke CLV IR Window for Indoor Low Voltage

Increase the safety and speed of infrared inspections with Fluke IR Windows. Why open panel doors and increase arc flash risk when you don’t have to? Stay protected, scan in minutes and scan more often – both visually and in infrared.

Low voltage does not mean low danger. CLV provides a heightened level of arc flash protection during IR inspections of low voltage equipment up to 600V.

Fluke CLV IR Windows are available in a 3 inch diameter and are UL50V and UL1558 certified.

Features

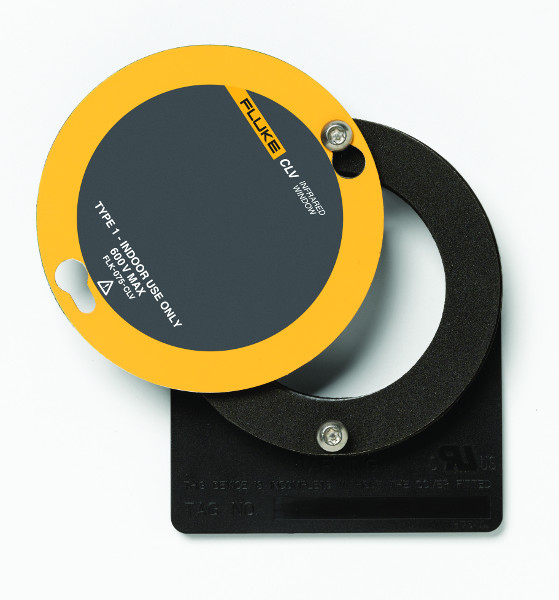

With a Kwik Twist cover that magnetically sticks to the panel when removed, Fluke IR Windows are easy to use and deliver unmatched image clarity through a CLIRVU® crystal. Exclusive to Fluke IR Windows, CLIRVU crystal technology is impervious to both moisture and vibration.
  • Flexibility to inspect both visually and with infrared
  • Certified by UL as suitable for Type 1 (Indoor) environment in North America.
  • Identification plate attached for unique, onsite numbering for rapid location confirmation and faster repairs.
  • Each infrared window comes complete with a security access key, installation instructions and self-adhesive drilling template.


Technical Specifications

Optic data
Crystal insert diameter 75 mm (2.96 in)
Viewing aperture diameter 68 mm (2.7 in)
Viewing aperture area 3632 mm2 (5.63 sq in)
Thickness 2 mm (0.08 in)
Shortwave IR, Midwave IR, Longwave IR, Ultraviolet (UV) capable Yes
Visual and fusion capable Yes
Underwriters Laboratories (UL)
UL50V Yes
UL1558 Yes
UL50 Type 1 Indoor
General Specifications
Maximum Temperature Gaskets: 250 °C (482 °F)
Body: 200 °C (392 ° F)
Optic: 1400 °C (2552 °F)
Warranty Lifetime replacement against manufacturing defects




Fluke IR Windows Brochure
