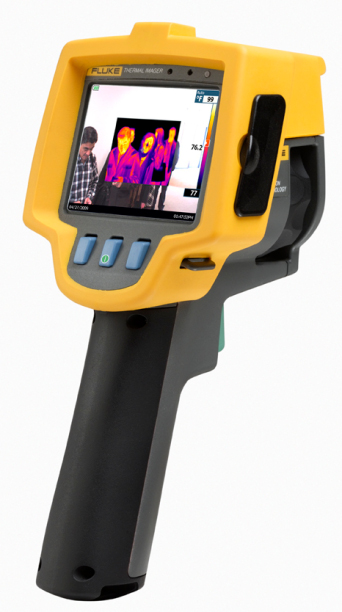

Fluke TiR1 9HZ Thermal Imager
|
Item Number: FLK-TIR1 9HZ
Manufacturer: Fluke
Part Number: FLK-TIR1 9HZ
|
|
Fluke TiR1 9HZ Thermal Imager
**Domestic Sales Only**
Optimized for building envelope, restoration and remediation, inspection and roofing applications.
The Fluke TiR1 Thermal Imaging cameras are the perfect imagers for building envelope, restoration and remediation, inspection and roofing applications.
IR-Fusion Technology
See things both waysinfrared and visual (visible light) images fused together communicating critical information faster and easiertraditional infrared images are no longer enough. IR-Fusion, a patent-pending technology that simultaneously captures a digital photo in addition to the infrared image and fuses it together taking the mystery out of IR image analysis. IR-Fusion is standard on TiR1 models.
Fluke TiR1 9HZ Thermal Imager Features:
-
Includes IR-Fusion Technology both in camera and software (combines visible image with IR image
in full screen or picture-in-picture views) for easy identification and reporting of problems
-
Rugged and reliable: Engineered to withstand a 2 m (6.5 ft) drop
-
9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD
-
Temperature range and thermal sensitivity optimized for building diagnostics applications
-
Reflected background temperature (reflected temperature compensation)
-
Perfect for any application and budget
-
Excellent thermal sensitivity for seeing even small temperature differences (which could indicate problems)
-
No need to carry pen and paperrecord findings by speaking into the camera. Voice annotations can be
recorded with every image you take. Voice comments are saved along with individual images for future reference
-
Adjustable hand strap for left- or right-handed users
-
Everything needed to get started is included. NEW! Training DVD is now included free. See how easy it is to
set up your thermal imager, create professional reports with SmartView software and learn thermography
theory with step-by-step video instructions.
-
Manufactured in the U.S.A
Fluke TiR1 9HZ Thermal Imager Specifications:
|
Detailed Specifications
|
|
Temperature
|
|
Temperature measurement range (not calibrated below -10 °C)
|
-20 °C to +100 °C (-4 °F to + 212 °F)
|
|
Accuracy
|
± 2 °C or 2 % (whichever is greater)
|
|
Measurement modes
|
Smooth auto-scaling and manual scaling
|
|
On-screen emissivity correction
|
Yes
|
|
|
Imaging performance
|
|
Field of view
|
23° x 17°
|
|
Spatial resolution (IFOV)
|
2.5 mRad
|
|
Minimum focus distance
|
Thermal lens: 15 cm (6 in);
Visible (visual) light lens: 46 cm (18 in)
|
|
Focus
|
Manual
|
|
Image frequency
|
9 Hz refresh rate
|
|
Detector type
|
160 X 120 focal plane array, uncooled microbolometer
|
|
Infrared lens type
|
20 mm F = 0.8 lens
|
|
Thermal sensitivity (NETD)
|
≤ 0.07 °C at 30 °C (70 mK)
|
|
Infrared spectral band
|
7.5 μm to 14 μm
|
|
Visual camera
|
640 x 480 resolution
|
|
|
Image presentation
|
|
Palettes
|
Ironbow, blue-red, high contrast, amber, hot metal, grey
|
|
Level and span
|
Smooth auto-scaling and manual scaling of level and span
|
|
Minimum span (in manual mode)
|
2.5 °C (4.5 °F)
|
|
Minimum span (in auto mode)
Fast Auto/Manual Range Toggle
Fast Auto Rescale
|
5 °C (9 °F)
|
|
IR-Fusion® information
|
Full Infrared with MAX, MID, or MIN automatic blending; and Picture-in-Picture with MAX, MID, or MIN automatic blending Visual and IR blending
|
|
Picture-In-Picture (PIP)
|
Three levels of on-screen IR blending displayed in center 320 x 240 pixels
|
|
Full screen (PIP off)
|
Three levels of on-screen IR blending displayed in center 640 x 480 LCD
|
|
|
Voice annotation
|
|
Voice annotation
|
60 seconds maximum recording time per image
|
|
|
Image and data storage
|
|
Storage medium
|
SD memory card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations or 3000 basic (.bmp) IR images
|
|
File formats
|
Non-radiometric (.bmp) or fully-radiometric (.is2)
No analysis software required for non-radiometric (.bmp) files
|
|
Export file formats w/SmartView™ software
|
JPEG, BMP, GIF, PNG, TIFF, WMF, EXIF, and EMF
|
|
|
General Specifications
|
|
Temperature
|
|
Operating:
|
-10 °C to 50 °C (14 °F to 122 °F)
|
|
Storage:
|
-20 °C to +50 °C (-4 °F to 122 °F) without batteries
|
|
|
Relative humidity
|
| |
10 % to 90 % non-condensing
|
|
|
Display
|
| |
9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto)
|
|
|
Controls and adjustments
|
| |
User selectable temperature scale (°C/°F)
|
| |
Language selection
|
| |
Time/date set
|
|
|
Software
|
| |
SmartView™ full analysis and reporting software included
|
|
|
Power
|
|
Battery:
|
Internal rechargeable battery pack(included)
|
|
Battery life:
|
3 to 4 hours continuous use (assumes 50 % brightness of LCD)
|
|
Battery charge time using ac adapter/charger or dc car charger:
|
2 hours for full charge
|
|
|
AC operation/charging
|
| |
AC adapter/charger (110 V ac to 220 V ac, 50 Hz to 60 Hz). Charges battery while imager is operating. Universal ac mains adapters included.
|
|
|
Power saving
|
| |
Sleep mode activated after 5 minutes of inactivity, automatic power off after 30 minutes of inactivity
|
|
|
Safety standards
|
|
CE Directive:
|
IEC/EN 61010-1 2nd Edition Pollution Degree 2
|
|
|
Electromagnetic compatibility
|
|
EMC directive:
|
EN61326-1
|
|
C-Tick:
|
IEC/EN 61326
|
|
US FCC:
|
CFR 47, Part 15 Class A
|
|
|
Vibration
|
|
|
Shock
|
| |
25 G, IEC 68-2-29 {2 m (6.5 ft) drop, 5 sides}
|
|
|
Dimensions (HxWxL)
|
| |
0.27 m x 0.13 m x 0.15 m (10.5 in x 5 in x 6 in)
|
|
|
Weight
|
|
|
IP rating
|
|
|
Warranty
|
|
|
Calibration cycle
|
| |
Two-years (assumes normal operation and normal aging)
|
|
|
Supported languages
|
|
English, Italian, German, Spanish, French, Russian, Portuguese, Swedish, Turkish, Czech, Polish, Finnish, Simplified Chinese, Traditional Chinese, Korean, and Japanese
|
|
|
Fluke CLKT is the most rugged on the market, with a heavy duty aluminum housing and arc-flash resistance to increase safety when conducting thermal inspections.
|
Fluke CLV IR Windows are available in a 3 inch diameter and are UL50V and UL1558 certified.
|
Fluke CLKTO can help increase the safety of your personnel and reduce the cost of predictive maintenance, in compliance with indoor switchgear codes.
| |
