Fluke CLKT IR Window for Outdoor and Indoor Application
|
Item Number: FLK-050-CLKT
Configuration: FLK-050-CLKT
Manufacturer: Fluke
Part Number: FLK-050-CLKT
Product Options
* denotes required field
Fluke CLKT IR Window Model Selection*
* Whole number only
|
 Fluke CLKT IR Window for Outdoor and Indoor Application |
|
Fluke CLKT IR Window for Outdoor and Indoor Application

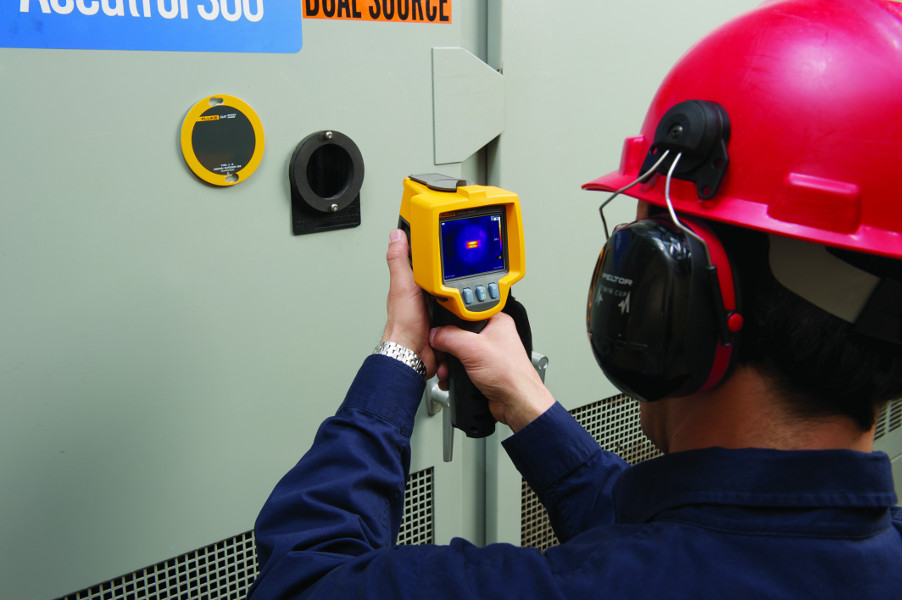

Increase the safety and speed of indoor and outdoor electrical thermography with these UL and CSA certified IR Windows. These IR Windows come in three diameters: 2", 3" or 4".
Fluke IR Windows are the most rugged on the market, with a heavy duty aluminum housing and arc-flash resistance to increase safety when conducting thermal inspections.
Features

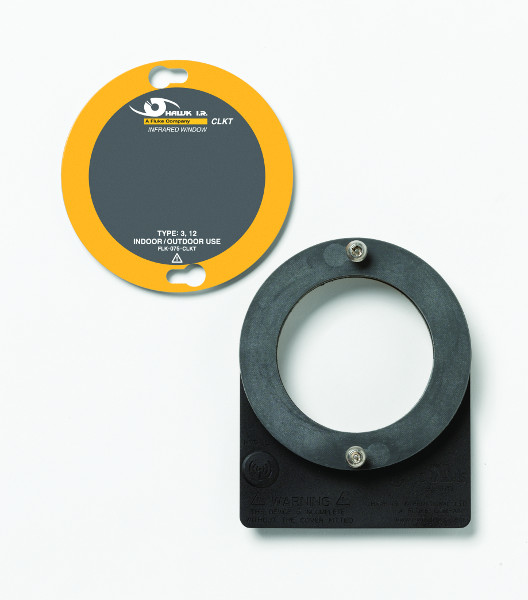

With a Kwik Twist cover that magnetically sticks to the panel when removed, Fluke IR Windows are easy to use and deliver unmatched image clarity through a CLIRVU® crystal. Exclusive to Fluke IR Windows, CLIRVU crystal technology is impervious to both moisture and vibration. CLIRVU crystals are designed to withstand the extreme pressures and temperatures of an arc-fault event, and offer protection from molten projectiles associated with arc-flashes.
- Engineered and tested to withstand electric-arcs up to 50 kA for30 cycles.
- Certified by UL & CSA for Type 3/12 (Outdoor) environments in North America, these C-Range windows are tested to withstand the long term aging effects of UV exposure.
- Certified by SIRA Certification IP65 (Outdoor) environments in Europe.
- The CLIRVU® coating—exclusive to Fluke IR Windows—seals the optic prior to assembly to protect against moisture degradation.
- Own a Fluke Camera? The Quadraband™ optic is IR-Fusion® compatible, allowing the thermographer to see potential problems in visual light and thermographic mode.
- Got more than one window per panel? Each C-Range window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs.
- Each infrared window comes complete with a security access key, installation instructions and self-adhesive drilling template.

Technical Specifications
| Optic data |
| Crystal insert diameter |
| 3460346 FLK-050-CLKT: |
50 mm (1.97 in) |
| 3460387 FLK-075-CLKT: |
75 mm (2.96 in) |
| 3460439 FLK-100-CLKT: |
100 mm (3.94 in) |
|
| Viewing aperture diameter |
| 3460346 FLK-050-CLKT: |
43 mm (1.7 in) |
| 3460387 FLK-075-CLKT: |
68 mm (2.7 in) |
| 3460439 FLK-100-CLKT: |
89 mm (3.5 in) |
|
| Viewing aperture area |
| 3460346 FLK-050-CLKT: |
1452 mm2 (2.25 sq in) |
| 3460387 FLK-075-CLKT: |
3632 mm2 (5.63 sq in) |
| 3460439 FLK-100-CLKT: |
6322 mm2 (9.79 sq in) |
|
| Thickness |
| 3460346 FLK-050-CLKT: |
2 mm (0.08 in) |
| 3460387 FLK-075-CLKT: |
2 mm (0.08 in) |
| 3460439 FLK-100-CLKT: |
4 mm (0.16 in) |
|
| CLIRVU coating |
| 3460346 FLK-050-CLKT: |
Yes |
| 3460387 FLK-075-CLKT: |
Yes |
| 3460439 FLK-100-CLKT: |
Yes |
|
| Shortwave IR capable |
| 3460346 FLK-050-CLKT: |
Yes |
| 3460387 FLK-075-CLKT: |
Yes |
| 3460439 FLK-100-CLKT: |
Yes |
|
| Midwave IR capable |
| 3460346 FLK-050-CLKT: |
Yes |
| 3460387 FLK-075-CLKT: |
Yes |
| 3460439 FLK-100-CLKT: |
Yes |
|
| Longwave IR capable |
| 3460346 FLK-050-CLKT: |
Yes |
| 3460387 FLK-075-CLKT: |
Yes |
| 3460439 FLK-100-CLKT: |
Yes |
|
| Ultraviolet (UV) capable |
| 3460346 FLK-050-CLKT: |
Yes |
| 3460387 FLK-075-CLKT: |
Yes |
| 3460439 FLK-100-CLKT: |
Yes |
|
| Visual capable |
| 3460346 FLK-050-CLKT: |
Yes |
| 3460387 FLK-075-CLKT: |
Yes |
| 3460439 FLK-100-CLKT: |
Yes |
|
| Fusion capable |
| 3460346 FLK-050-CLKT: |
Yes |
| 3460387 FLK-075-CLKT: |
Yes |
| 3460439 FLK-100-CLKT: |
Yes |
|
| Underwriters Laboratories (UL) recognized |
Yes |
| UL50 environmental |
|
| UL746C |
|
| UL94 |
|
| Canadian Standards Association (CSA) approval |
Yes |
| Environmental |
|
| KEMA (Arc-Testing) |
| ANSI C37.20.7 |
|
50 kA for 30 cycles @60 Hz |
|
| EEMACS 14-1 Type-B |
|
40 kA for 30 cycles @60 Hz |
|
| ASTA (Arc-Testing) |
| IEC 62271 |
|
20 kA for 5 cycles @50 Hz |
|
| TUV |
| Cyclic humidity withstand |
|
| Vibration withstand |
|
| NEMKO |
| Resistance of insulating materials to 100° |
|
| Resistance of insulating material to ball pressure (Brinell) |
|
| Glow-wire test 650 °C |
|
| Lloyds Register |
| Up to 11 kV marine switchgear, indoor or outdoor |
|
| General Specifications |
| Maximum temperature |
| Gaskets: |
250 °C (482 °F) |
| Body: |
659 °C (1219 °F) |
| Optic: |
1400 °C (2552 °F) |
|
| Gaskets |
|
Low smoke and fume (LSF) compliant silicone |
|
| IP rating |
|
| NEMA rating |
|
Type 3/12 (UL and CSA Third Party Certified) |
|
| Vibration rating |
|
| Humidity rating |
|
| Pull-out strength |
|
| Warranty |
|
Lifetime replacement against manufacturing defects |
|
