Fluke Ti 9 Thermal Imager
|
Item Number: FLK-TI9 9HZ
Manufacturer: Fluke
Part Number: FLK-TI9 9HZ
Product Options
Fluke Ti 9 Thermal Imager Calibration Option
* Whole number only
|
|
Fluke Ti-9 Thermal Imager

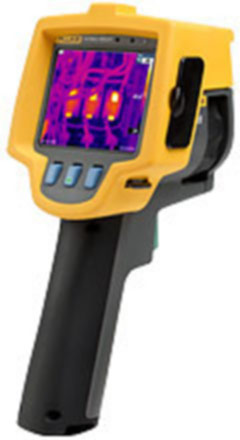

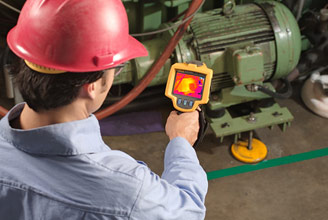

The The Fluke Ti 9 is the ideal entry-level instrument for electricians and HVAC/R, plant technicians
***Not available for Export Sales***

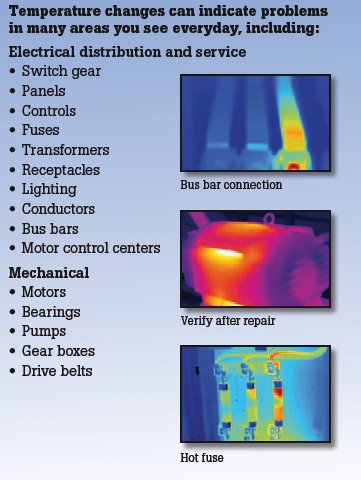

You won’t find a better or more rugged entry-level thermal imager than the Fluke Ti-9. Just point and shoot to capture the full picture, showing the hotspots that warn of equipment failure well before a catastrophic and expensive failure.. The 160 x 120 resolution shows all the essential temperature measurement details. That greatly increases the speed of pin pointing, inspecting, repairing and verifying electrical and (electro) mechanical equipment. Using a thermal imager as a diagnostics service tool or a preventative maintenance device extends equipment lifetime and avoids electrical fires and motor/compressor/bearing failures.
The Fluke Ti-9 is Rugged and easy to use. Just point and shoot. The Ti-9 is rated to IP54 and resists dust and water and withstands a drop test of 2 meters.
Features - Fluke Ti-9 Thermal Imager:
- Delivers the clear, crisp images needed to find problems fast.
- Optimized for field use in harsh work environments.
- Engineered and tested to withstand a 2 m (6.5 ft) drop—When was the last time you dropped a tool?
- Withstands dust and water - tested to an IP54 rating.
- Intuitive, three-button menu is easy to use -s imply navigate with the push of a thumb.
- Adjustable hand strap for left-or right-handed use.

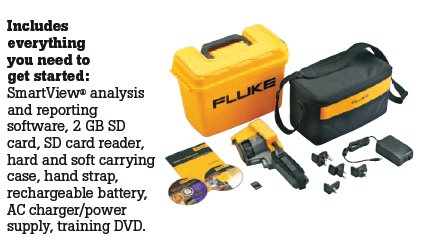

- Includes Smartview analysis and report PC software with 2 Gig memory card.
- 2 year warranty.
|
Fluke Ti-9 Detailed Specifications
|
|
Temperature
|
|
Temperature measurement range (not calibrated below -10 °C)
|
-20 °C to +250 °C (-4 °F to + 482 °F)
|
|
Accuracy
|
± 5 °C or 5 % (whichever is greater)
|
|
Imaging performance
|
|
Field of view
|
23° x 17°
|
|
Spatial resolution (IFOV)
|
2.5 mRad
|
|
Minimum focus distance
|
Thermal lens: 15 cm (6 in)
|
|
Focus
|
Manual
|
|
Image frequency
|
9 Hz refresh rate
|
|
Detector type
|
160 X 120 focal plane array, uncooled microbolometer
|
|
Infrared lens type
|
20 mm F = 0.8 lens
|
|
Thermal sensitivity (NETD)
|
≤ 0.2 °C at 30 °C (200 mK)
|
|
Infrared spectral band
|
7.5 μm to 14 μm
|
|
Image presentation
|
|
Palettes
|
Ironbow, blue-red, high contrast, grey
|
|
Level and span
|
Smooth auto-scaling and manual scaling of level and span
|
|
Minimum span (in manual mode)
|
5 °C (9 °F)
|
|
Minimum span (in auto mode)
|
10 °C (18 °F)
|
|
Image and data storage
|
|
Storage medium
|
SD memory card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR or 3000 basic (.bmp) IR images)
|
|
File formats
|
Non-radiometric (.bmp) or fully-radiometric (.is2)
No analysis software required for non-radiometric (.bmp) files
|
|
Export file formats w/SmartView® software
|
JPEG, BMP, GIF, PNG, TIFF, WMF, EXIF, and EMF
|
|
General specifications
|
|
Temperature -Operating:
|
-10 °C to 50 °C (14 °F to 122 °F)
|
|
Temperature - Storage:
|
-20 °C to +50 °C (-4 °F to 122 °F) without batteries
|
|
Display
|
9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto)
|
|
Controls and adjustments
|
- User selectable temperature scale (°C/°F)
- Language selection
- Time/Date set
|
|
Software
|
SmartView® full analysis and reporting software included
|
|
Battery:
|
Internal rechargeable battery pack (included)
|
|
Battery life:
|
Three to four hours continuous use (assumes 50 % brightness of LCD)
|
|
Battery charge time using ac adapter/charger and dc car charger:
|
Two hours for full charge
|
|
AC operation/charging
|
AC adapter/charger (110 Vac to 220 Vac, 50 Hz to 60 Hz). Charges battery while imager is operating. Universal ac mains adapters included.
|
|
Power saving
|
Sleep mode activated after 5 minutes of inactivity, automatic power off after 20 minutes of inactivity
|
|
Safety standards
|
CE Directive: IEC/EN 61010-1 2nd Edition Pollution Degree 2
|
|
Electromagnetic compatibility
|
- EMC directive: EN61326-1
- C-Tick: IEC/EN 61326
- US FCC: CFR 47, Part 15 Class A
|
|
Vibration
|
2 G, IEC 68-2-29
|
|
Shock
|
25 G, IEC 68-2-29 {2 m (6.5 ft) drop, 5 sides}
|
|
Dimensions (HxWxL)
|
0.27 m x 0.13 m x 0.15 m (10.5 in x 5 in x 6 in)
|
|
Weight
|
1.2 kg (2.65 lb)
|
|
IP rating
|
IP54
|
|
Warranty
|
Two-years
|
|
Calibration cycle
|
Two-years (assumes normal operation and normal aging)
|
|
Supported languages
|
English, Italian, German, Spanish, French, Russian, Portuguese, Swedish, Turkish, Czech, Polish, Finnish, Simplified Chinese, Traditional Chinese, Korean, and Japanese
|
|
