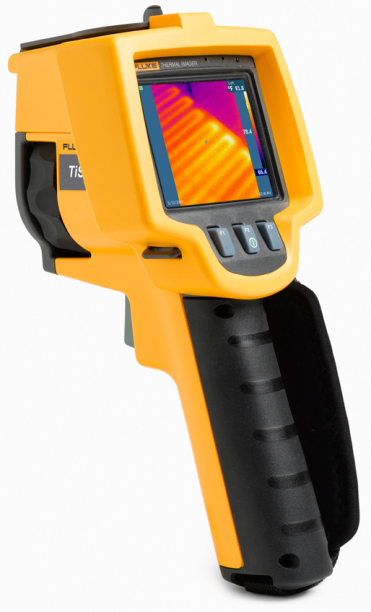

Fluke TiS 9HZ Thermal Imaging Scanner
|
Item Number: FLK-TIS 9HZ
Manufacturer: Fluke
Part Number: FLK-TIS 9HZ
* Whole number only
|
|
Fluke TiS 9HZ Thermal Imaging Scanner
**Domestic Sales Only**
Fluke proudly introduces an entry level thermal imager for quick, easy, and accurate problem identification and troubleshooting designed specifically for the building inspection professional.
Whether you are a building inspector, home inspector, electrician, energy auditor, HVAC, insulator, or windows installer the Fluke Thermal Imaging Scanner is the perfect tool to help youidentify hidden building construction issues, find moisture intrusion, detect energy loss/missing insulation, and many basic electrical connection and load problems. Now Fluke quality, durability, and performance are available in a thermal imager engineered for the value-conscious buildingprofessional. The Fluke TiS Thermal Imaging Scanner is the top-performing imager in its price class. The most affordable thermal imager on the market that meets the proposed RESNET infrared inspection standard Highest resolution (120x120) in price class Only imager in price class with versatile, manual focus Largest display size (3.7) in price class. 30% larger than comparable imagers! Long battery life lasts ~4 hours Rugged body engineered to withstand 2m (6.5 ft) drop test Award winning ergonomic design Easy to use the TiS Thermal Imaging Scanner provides you with a basic, reliable solution for the building professional Trusted quality of Fluke brand.
Fluke TiS 9HZ Thermal Imaging Scanner Features:
-
The most affordable thermal imager on the market that meets the proposed RESNET infrared inspection standard.
-
Highest resolution (120x120) in price class
-
Only imager in price class with versatile, manual focus
-
Largest display size (3.7) in price class. 30% larger than comparable imagers!
-
Long battery life lasts ~4 hours
-
Rugged body engineered to withstand 2m (6.5 ft) drop test
-
Award winning ergonomic design
-
Easy to use the TiS Thermal Imaging Scanner provides you with a basic, reliable solution for the building professional
-
Trusted quality of Fluke brand
Fluke TiS 9HZ Thermal Imaging Scanner Specifications:
Temperature
|
|
Temperature measurement range (not calibrated below -10 °C)
|
-20 °C to +100 °C (-4 °F to +212 °F)
|
|
Temperature measurement accuracy
|
± 5 °C or 5 % (at 25 °C nominal, whichever is greater)
|
Imaging Performance
|
|
Image capture frequency
|
9 Hz refresh rate
|
|
Detector type
|
120 X 120 Focal Plane Array, uncooled microbolometer
|
|
Thermal sensitivity (NETD)
|
≤ 0.1 °C at 30 °C target temp. (100 mK)
|
|
Infrared spectral band
|
7.5 μm to 14 μm (long wave)
|
|
Standard infrared lens type
|
Field of view: 17° x 17°
|
|
Spatial resolution: (IFOV) 2.50 mRad
|
|
Minimum focus distance: 15 cm (approx. 6 in)
|
|
Focus mechanism
|
Versatile, one-handed, manual focus capability
|
Image Presentation
|
|
Palettes
|
Ironbow, Blue-Red, Grayscale
|
|
Level and span
|
Smooth auto-scaling and lock of level and span
|
|
Minimum span (in auto mode)
|
5 °C (9 °F)
|
|
Image capture, review, save mechanism
|
One-handed image capture, review, and save capability
|
|
Storage medium
|
SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR images annotations, or 3000 basic bitmap (.bmp) images, transferrable to PC via included multi-format USB card reader
|
|
File formats
|
Non-radiometric (.bmp) or fully-radiometric (.is2) No analysis software required for non-radiometic bitmap (.bmp) files
|
|
Export file formats
|
w/SmartView® software BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
|
|
Memory review
|
Sequential image navigation and review
|
General Specifications
|
|
Operating temperature
|
-10 °C to +50 °C (14 °F to 122 °F)
|
|
Storage temperature
|
-20 °C to +50 °C (-4 °F to 122 °F) without batteries
|
|
Relative humidity
|
10 % to 95 % non-condensing
|
|
Display
|
9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover
|
|
Controls and adjustments
|
User selectable temperature scale (°C/°F)
|
|
Language selection
|
|
Time/Date set
|
|
User selectable backlight: “Full Bright” or “Auto”
|
|
Software
|
SmartView® full analysis and reporting software included
|
|
Batteries
|
Internal rechargeable battery pack (included)
|
|
Battery life
|
Three to four hours continuous use (assumes 50 % brightness of LCD)
|
|
Battery charge time
|
2.5 hours to full charge
|
|
AC battery charging
|
AC adapter/charger (110 V ac to 220 V ac, 50/60 Hz) (included), charges battery while imager is operating or turned off, ac mains adapters included
|
|
AC operation
|
AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz), ac mains adapters included
|
|
Power saving
|
Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity
|
|
Safety standards
|
CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01
|
|
Electromagnetic compatibility
|
Meets all applicable requirements in EN61326-1:2006
|
|
C Tick
|
IEC/EN 61326-1
|
|
US FCC
|
CFR 47, Part 15 Class B
|
|
Vibration
|
0.03 g2/Hz (3.8 grms), IEC 68-2-6
|
|
Shock
|
25 g, IEC 68-2-29
|
|
Drop
|
2 meter (6.5 feet)
|
|
Size
|
(H x W x L) 26.7 cm x 12.7 cm x 15.2 cm (10.5 in x 5.0 in x 6.0 in)
|
|
Weight (battery included)
|
1.2 kg (2.6 lb)
|
|
Enclosure rating
|
IP54 (protected against dust, limited ingress; protection against water spray from all directions)
|
|
Warranty
|
Two-years (standard)
|
|
Recommended calibration cycle
|
Two-years (assumes normal operation and normal aging)
|
|
Supported Languages
|
Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, and (Dutch and Hungarian in manual only)
|
|
