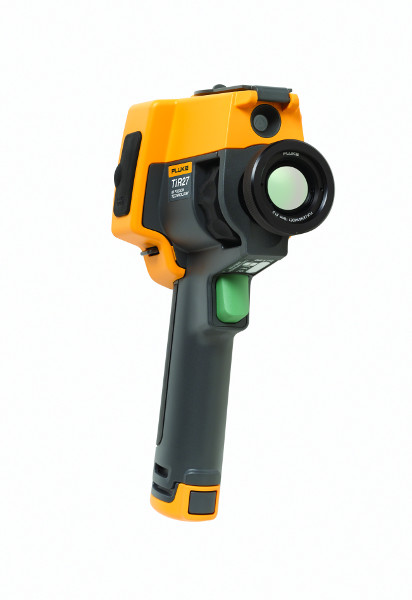

Fluke TiR27 60HZ Building Diagnostics Thermal Imager

     Designed specifically for the building inspection professional, the Fluke TiR27 delivers superior image quality, versatility, and affordability without compromise. With powerful 240x180 IR resolution, superior spatial resolution, and high definition display, the TiR27 delivers crisper images than the competition and impressive reports with the included professional SmartView® software. Whether you’re searching for energy waste, leaky roofs or moisture problems, Fluke TiR27 offers tested and proven game-changing technology that takes the guesswork out of finding problems and provides solutions. With its rugged body, integrated lens cover, protected display and 2 meter drop test, the TiR27 is designed to handle the harshest environments.

     The greatest technological advancement in thermography may be how Fluke has made it so simple to capture images and analyze data right out of the box. With just a push of your thumb, go from one handed manual smart focus to adding picture-in-picture and even add comments in your own voice.

The Fluke TiR27 also offers the only on-camera blended infrared with patented Fluke IR-Fusion® technology precisely aligning visible and IR images to better diagnose issues.

• Superior image quality
• One-handed, easy to use interface
• Torture tested™
• Patented Fluke IR-Fusion®
• Interchangeable lenses

Features

Superior image quality

• Delivers the clear, crisp images needed to find problems fast with its 240x180 infrared resolution.
• Identify even the smallest temperature differences that could indicate problems with industry-leading thermal sensitivity (NETD).
• Automatic alignment (parallax correction) of visual and infrared images with Fluke patented IR-Fusion®
• Optional telephoto and wide angle lenses available for added versatility and special applications (easily installable in the field).

Easy to use

• Field replaceable batteries give you maximum flexibility no matter where your work takes you.
• Intuitive, three-button menu is easy to use—simply navigate with the push of a thumb.
• No need to carry pen and paper—record findings by speaking into the imager. Voice annotations can be recorded with every image you take. Voice comments are saved along with individual images for future reference.
• One-handed focus capability, emissivity correction, reflected background temperature compensation, and transmission correction increase the accuracy of measurements in most situations.
• Adjustable hand strap for left-or right-handed use.
• Everything needed to get started is included.

Rugged

• Optimized for field use in challenging work environments.
• Engineered and tested to withstand a 2 m drop for the ultimate peace of mind - When was the last time you dropped a tool or piece of equipment?
• Withstands dust and water—tested to an IP54 rating.

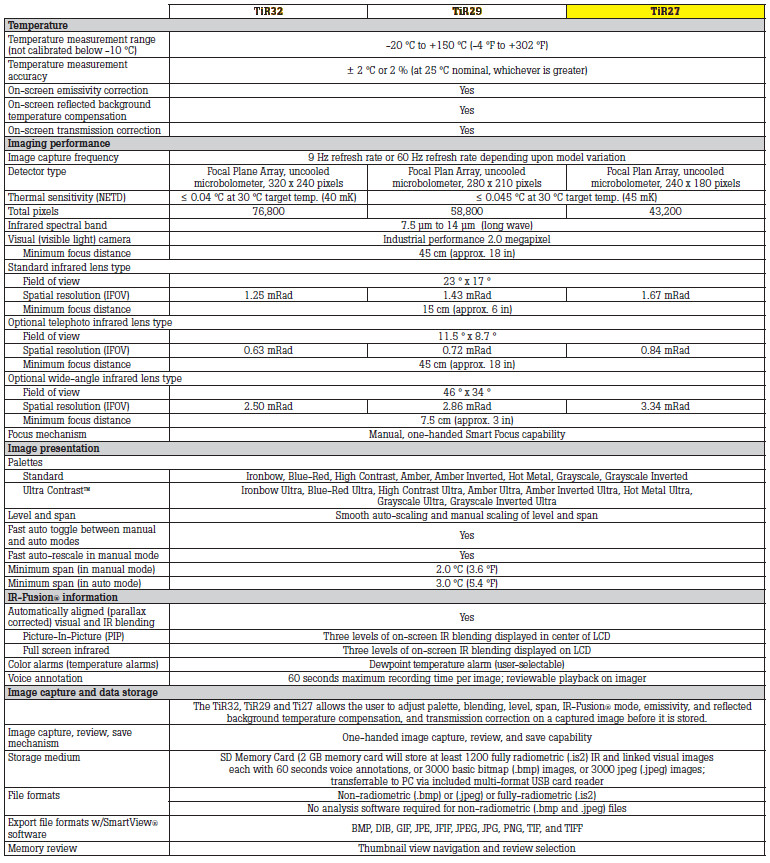

Technical Specification
