Graphtec Petit LOGGER GL100-N Data Logger
|
Item Number: GL100-N
Manufacturer: Graphtec Corp
Part Number: GL100-N
* Whole number only
|
|
Graphtec Petit LOGGER GL100-N Data Logger

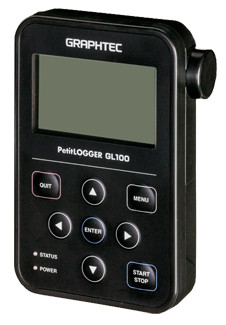

The GL100-N is a compact data logger that allows users to switch sensors and terminals for measuring various signals.
Easy connection to PC
Features
- Modular
- Supports a variety of measurements by exchanging the input module
- PC and smart mobile device software available
- Industry-specific software: agriculture, logistics, power
- Built-in memory ~4.9MB
- microSD memory card port
Applications
Technical Specifications
|
Specifications of GL100-N
|
|
Item
|
Description
|
|
Number of channel
|
Up to 4 channels
(varies by the type of input module used, and measurement type is fixed with each input module.)
|
|
Interface to PC
|
USB 2.0
|
|
Functions
|
• Real-time data capturing
• Display the captured data value to the LCD in real-time and save the monitoring values
• Set conditions using the Menu setting
|
|
While using USB port:
• Output captured data in real-time
• Output the saved data from the internal memory
• Full control of the GL100 from the PC application software
|
|
Display
|
LCD (backlit monochrome, graphical type)
|
|
Storage device
|
• Built-in RAM (Approx. 4.9 MB)
• micro SD memory card
* Maximum file size for captured data is 1.9 GB.
|
|
Sampling interval
|
0.5 to 30 seconds and 1 to 60 minutes
|
|
Output signal
|
Alarm (1 channel)
|
|
Power source
|
• Battery (AA x 2)
• USB bus-power (micro USB connector)
* The required power capacity is 5V, 1A when AC adapter for microUSB drive is used. AC adapter is not included.
|
|
Operating environment
|
Temperature: -10 ºC to 50 ºC
Humidity: up to 80% RH (non condensed)
Water resistance: IP54
|
|
External dimension
|
Approx. 66 x 100 x 27 mm (exclude protrusion)
|
|
Weight
|
GL100-N: Approx. 125 g, GL100-WL: Approx. 130 g
|
|
Software
|
|
Item
|
Description
|
|
Supported OS
|
Windows: 8.1 / 8 / 7 / Vista (32- or 64-bit), Android OS: 4.3 or later, iOS: 7 or later
|
|
Controlled units
|
Up to 10 units
|
|
Accessories
|
|
Item
|
Model number
|
Description
|
|
Thermistor sensor (Normal
type)
|
GS-103AT-4P
|
Sensor for GS-4TSR module, 3 m, 4 pcs/set, Temp. range: -40 to
105 ºC
|
|
Thermistor sensor (Ultrathin
type)
|
GS-103JT-4P
|
Sensor for GS-4TSR module, 3 m, 4 pcs/set, Temp. range: -40 to
120 ºC
|
|
AC Current sensor
|
GS-AC50A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 50 A AC
|
|
AC Current sensor
|
GS-AC100A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 100 A AC
|
|
AC Current sensor
|
GS-AC200A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 200 A AC
|
|
Dual port adapter
|
GS-DPA
|
Connect up to two (2) sensors
|
|
Module Extension Cable
|
GS-EXC
|
Extension cable for input module, 1.5 m long
|
|
Specifications of input module
|
|

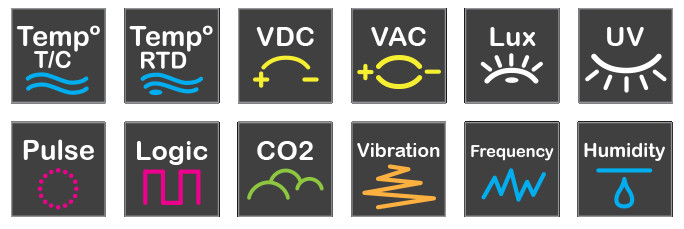

Temperature & Humidity sensor (GS-TH)
|
|
Type of measurement
|
Temperature, and Humidity
Accumulated temp. (calculated value), Dew-point temp. (calculated value)
|
|
Measuring range
|
Temperature: -20 to 85 ºC
Humidity: 0 to 100 % RH
|
|
Acceleration & Temperature sensor (GS-3AT)
|
|
Type of measurement
|
Acceleration in 3-axis (X-, Y-, Z-axis), and Temperature
|
|
Measuring range
|
Acceleration: ±2 (20 m/s²), ±5 (50 m/s²), ±10G (100 m/s²)
Temperature: -10 to 50 ºC
|
|
Sampling interval
|
5 to 100 ms in memory mode, 0.5 s to 60 min. in direct mode (*²)
|
|
Illuminance & Ultraviolet sensor (GL-LXUV)
|
|
Type of measurement
|
Illuminance, and UV intensity
Accumulated Illuminance (calculated value), Accumulated UV intensity (calculated value)
|
|
Measuring range
|
Illuminance: 0 to 200 klx
UV intensity: 0 to 30 mW/cm²
|
|
Carbon dioxide (CO2) sensor (GL-CO2)
|
|
Type of measurement
|
Carbon dioxide concentration
|
|
Measuring range
|
0 to 9999 ppm
|
|
Operating environment
|
Temperature: 0 ºC to 50 ºC, Humidity: up to 80% RH (non condensed)
|
|
AC Current sensor adapter (GS-DPA-AC)
|
|
Type of measurement
|
Current
Power (calculated value), Electric energy (calculated value)
|
|
Application circuit
|
Single-phase two-wire, Single-phase three-wire system, or Three-phase three-wire
|
|
Sensor
|
Clamp-on current probe (optional), Two (2) sensors are able to connect
|
|
Measuring range
|
50, 100, 200 A RMS (varies by the sensor)
|
|
Voltage & Thermocouple input terminal (GL-4VT)
|
|
Number of channel
|
Analog voltage 4 channels,
Logic or Pulse 4 channels (*³)
|
|
Measuring range
|
Voltage: 20mV to 50V, 1-5V FS
Thermocouple: K type (-200 to 1370 ºC) & T type (-200 to 400 ºC)
Logic (signal pattern): 0 to 24 V (common ground)
Pules (count): Max. 200 counts/sampling intervall, accumulating up to 65535 counts
|
|
Temperature sensor input terminal (GL-4TSR)
|
|
Number of channel
|
Sensor 4 channels,
Logic or Pulse 4 channels (*³)
|
|
Sensor
|
Thermistor sensor (optional)
|
|
Measuring range
|
Temperature: -40 to 120 ºC (varies by the type of sensor)
Logic (signal pattern): 0 to 24 V (common ground)
Pulse (count): Max. 200 counts/sampling interval, accumulating up to 65535 counts
|
*1: Memory capacity is up to 128 k samples in the memory mode.
*2: The measurement type for analog input channels can each be separately selected
but also available as set of 4 channels.
|
The Graphtec GL100-WL is a wireless LAN that goes up to 4 channels.
|
The Graphtec GL100-N-TH is a compact data logger that measures temperature from -20ºC to 85ºC and humidity from 0.0 – 100.0% RH.
|
The Graphtec GL100-N-3AT is a compact data logger that measures temperature type A -40.0º to 105.0ºC; GS103AT-4Ptime and type B: -40.0º to 120.0ºC; GS-103JT-4Ptime.
|
The Graphtec GL100-N-LXUV is a compact data logger that has a measuring range from 0 lux to 200k lux in Luminance and 0 to 30mW/cm2 in UV Ray.
|
The Graphtec GL100-N-3AT is a compact data logger that measures temperature from -10ºC to 50ºC and acceleration is ±2% of F.S.
|
The Graphtec GL100-N-3AT is a compact data logger that has a measuring range from 0 to 9,999ppm.
|
The Graphtec GL100-N-3AT is a compact data logger that measures DC voltage 20mV to 50V as well as 1-5V and the thermocouple K: -200.0ºC~1370.0ºC and T: -200.0ºC~400.0ºC.
| |
