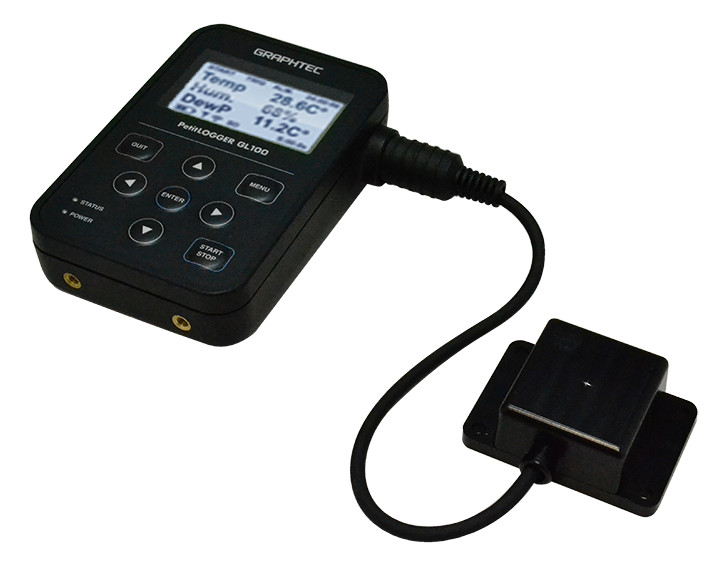

Graphtec Petit LOGGER GL100-N Data Logger w/ Acceleration/Temp. Sensor
|
Item Number: GL100-N-3AT
Manufacturer: Graphtec Corp
Part Number: GL100-N-3AT
* Whole number only
|
|
Graphtec Petit LOGGER GL100-N Data Logger w/ Acceleration/Temp. Sensor
The GL100-N data logger comes with the axis acceleration temperature sensor with internal CMOS that is designed for industries requiring climate monitoring and control such as greenhouse, hydroponics, agriculture and botanical rooms gives managers real time environment and climate monitoring.

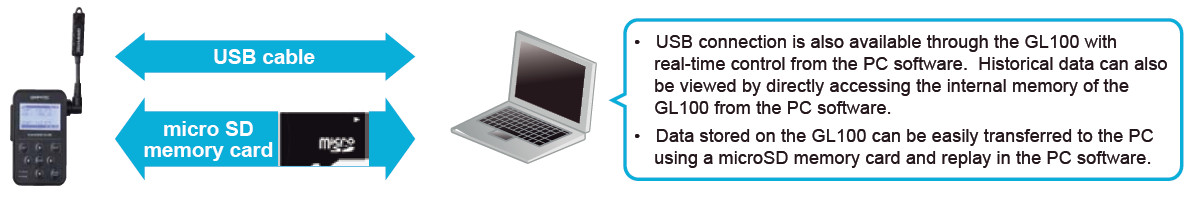

Easy connection to PC
GL100-N Features
- Modular
- Supports a variety of measurements by exchanging the input module

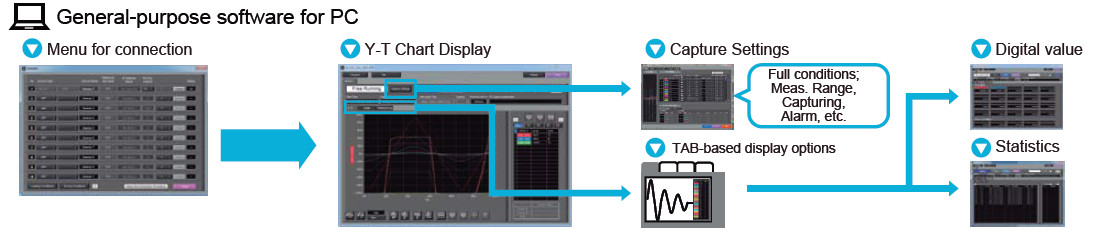

- PC and smart mobile device software available
- Industry-specific software: agriculture, logistics, power
- Built-in memory ~4.9MB
- microSD memory card port
Applications
Technical Specifications
|
Specifications of GL100-N
|
|
Item
|
Description
|
|
Number of channel
|
Up to 4 channels
(varies by the type of input module used, and measurement type is fixed with each input module.)
|
|
Interface to PC
|
USB 2.0
|
|
Functions
|
• Real-time data capturing
• Display the captured data value to the LCD in real-time and save the monitoring values
• Set conditions using the Menu setting
|
|
While using USB port:
• Output captured data in real-time
• Output the saved data from the internal memory
• Full control of the GL100 from the PC application software
|
|
Display
|
LCD (backlit monochrome, graphical type)
|
|
Storage device
|
• Built-in RAM (Approx. 4.9 MB)
• micro SD memory card
* Maximum file size for captured data is 1.9 GB.
|
|
Sampling interval
|
0.5 to 30 seconds and 1 to 60 minutes
|
|
Output signal
|
Alarm (1 channel)
|
|
Power source
|
• Battery (AA x 2)
• USB bus-power (micro USB connector)
* The required power capacity is 5V, 1A when AC adapter for microUSB drive is used. AC adapter is not included.
|
|
Operating environment
|
Temperature: -10 ºC to 50 ºC
Humidity: up to 80% RH (non condensed)
Water resistance: IP54
|
|
External dimension
|
Approx. 66 x 100 x 27 mm (exclude protrusion)
|
|
Weight
|
GL100-N: Approx. 125 g, GL100-WL: Approx. 130 g
|
|
Software
|
|
Item
|
Description
|
|
Supported OS
|
Windows: 8.1 / 8 / 7 / Vista (32- or 64-bit), Android OS: 4.3 or later, iOS: 7 or later
|
|
Controlled units
|
Up to 10 units
|
|
Accessories
|
|
Item
|
Model number
|
Description
|
|
Thermistor sensor (Normal
type)
|
GS-103AT-4P
|
Sensor for GS-4TSR module, 3 m, 4 pcs/set, Temp. range: -40 to
105 ºC
|
|
Thermistor sensor (Ultrathin
type)
|
GS-103JT-4P
|
Sensor for GS-4TSR module, 3 m, 4 pcs/set, Temp. range: -40 to
120 ºC
|
|
AC Current sensor
|
GS-AC50A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 50 A AC
|
|
AC Current sensor
|
GS-AC100A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 100 A AC
|
|
AC Current sensor
|
GS-AC200A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 200 A AC
|
|
Dual port adapter
|
GS-DPA
|
Connect up to two (2) sensors
|
|
Module Extension Cable
|
GS-EXC
|
Extension cable for input module, 1.5 m long
|
|
Item
|
Description |
|
GS-3AT
|
Measure tri-axial (X,Y,Z axis)
Temperature measured by internal CMOS sensor (-10º to 50ºC) |
| |
|
Measurement Data
|
X | Y | Z Acceleration, Temperature |
|
Measurement Range
|
±2G (20m/s2, ±5 (50m/s2, ±10 (100m/s2
(Gravitational Acceleration 1G=approx. 9.807m/s |
| |
|
Acceleration
Measurement Degree
of Accuracy
|
±2% of F.S. (including non-linearity) |
|
Response
(acceleration measurement)
|
0Hz to 100Hz |
|
Noise
|
25mG RMS |
|
Temperature
Measurement Range
|
-10ºC to 50ºC (C-MOS Sensor) |
|
Temperature
Measurement
Accuracy
|
-10 ≤TS < 50: ±1.0ºC |
|
Response Time (Temperature)
|
Approximately 300 seconds |
|
Measurement Mode
|
Memory Mode, Direct Mode |
|
Memory Capacity
(Memory Mode)
|
16 | 32 | 64 | 128k sample |
|
Pre-trigger
(Memory Mode)
|
OFF/10 | 25 | 50 | 100% of selected memory |
|
Sampling Intervals
|
Memory Mode |
5 | 10 | 20 | 50 | 100 ms
|
| Direct Mode |
0.5 | 1 | 2 | 5 | 10 | 20 | 30 sec
1 | 2 | 5 | 10 | 20 | 30 | 60 min
|
|
Processor
Functionality
|
Function |
The result from the calculation between selected intervals, (1e) 5ms, 1s saved
|
| Calculation type |
Average value, Peak value, Root mean
squared (RMS) value, or OFF (default value
will be saved)
|
|
Temperature Unit of Denomination
|
ºC/ºF (selectable)
|
|
Offset Adjust
Functionality
|
ON (sets the static acceleration value of current to zero) |
|
Dust-proof and Water-proof
|
IP54 |
|
Extension Cable
|
Approx 200mm
|
|
Operating
Environment
|
-10º to 50ºC, 80% RH and below (non-condensed) |
|
External Dimensions
|
51mm x 36mm x 19.5mm (excludes protrusion) |
|
Weight
|
Approx. 64g (2.25 oz) |
(1) Displays accuumulated value only during recording
(2) Accumulated value resets when recording starts or QUIT key is pressed
|
The Graphtec GL100-N is a compact data logger that goes up to 4 channels.
| |
