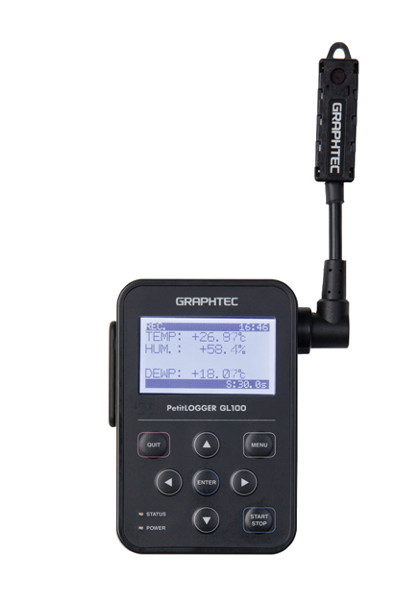

Graphtec Petit LOGGER GL100-N Data Logger w/ Temp./Humidity Sensor
|
Item Number: GL100-N-TH
Manufacturer: Graphtec Corp
Part Number: GL100-N-TH
* Whole number only
|
|
Graphtec Petit LOGGER GL100-N Data Logger w/ Temp./Humidity Sensor
The GL100-N data logger comes with the temperature humidity datalogger sensor that is designed for industries requiring climate monitoring and control such as greenhouse, hydroponics, agriculture and botanical rooms gives managers real time environment and climate monitoring.
Easy connection to PC
GL100-N Features
- Modular
- Supports a variety of measurements by exchanging the input module
- PC and smart mobile device software available
- Industry-specific software: agriculture, logistics, power
- Built-in memory ~4.9MB
- microSD memory card port
Applications
Technical Specifications
|
Specifications of GL100-N
|
|
Item
|
Description
|
|
Number of channel
|
Up to 4 channels
(varies by the type of input module used, and measurement type is fixed with each input module.)
|
|
Interface to PC
|
USB 2.0
|
|
Functions
|
• Real-time data capturing
• Display the captured data value to the LCD in real-time and save the monitoring values
• Set conditions using the Menu setting
|
|
While using USB port:
• Output captured data in real-time
• Output the saved data from the internal memory
• Full control of the GL100 from the PC application software
|
|
Display
|
LCD (backlit monochrome, graphical type)
|
|
Storage device
|
• Built-in RAM (Approx. 4.9 MB)
• micro SD memory card
* Maximum file size for captured data is 1.9 GB.
|
|
Sampling interval
|
0.5 to 30 seconds and 1 to 60 minutes
|
|
Output signal
|
Alarm (1 channel)
|
|
Power source
|
• Battery (AA x 2)
• USB bus-power (micro USB connector)
* The required power capacity is 5V, 1A when AC adapter for microUSB drive is used. AC adapter is not included.
|
|
Operating environment
|
Temperature: -10 ºC to 50 ºC
Humidity: up to 80% RH (non condensed)
Water resistance: IP54
|
|
External dimension
|
Approx. 66 x 100 x 27 mm (exclude protrusion)
|
|
Weight
|
GL100-N: Approx. 125 g, GL100-WL: Approx. 130 g
|
|
Software
|
|
Item
|
Description
|
|
Supported OS
|
Windows: 8.1 / 8 / 7 / Vista (32- or 64-bit), Android OS: 4.3 or later, iOS: 7 or later
|
|
Controlled units
|
Up to 10 units
|
|
Accessories
|
|
Item
|
Model number
|
Description
|
|
Thermistor sensor (Normal
type)
|
GS-103AT-4P
|
Sensor for GS-4TSR module, 3 m, 4 pcs/set, Temp. range: -40 to
105 ºC
|
|
Thermistor sensor (Ultrathin
type)
|
GS-103JT-4P
|
Sensor for GS-4TSR module, 3 m, 4 pcs/set, Temp. range: -40 to
120 ºC
|
|
AC Current sensor
|
GS-AC50A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 50 A AC
|
|
AC Current sensor
|
GS-AC100A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 100 A AC
|
|
AC Current sensor
|
GS-AC200A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 200 A AC
|
|
Dual port adapter
|
GS-DPA
|
Connect up to two (2) sensors
|
|
Module Extension Cable
|
GS-EXC
|
Extension cable for input module, 1.5 m long
|
|
Item
|
Description |
|
GS-TH
|
Relative Temperature and Humidity Sensor |
| |
|
Measurement Data
|
Temperature, Humidity, Dew Point Temperature (calculated value)
Accumulated Temperature ºCh
Accumulated Temperature only recorded |
|
Measurement Range
|
±2G (20m/s2, ±5 (50m/s2, ±10 (100m/s2
(Gravitational Acceleration 1G=approx. 9.807m/s |
| |
|
Measuring Method
|
C-MOS sensor |
|
Range of Temperature Measurement
|
-20ºC to 85ºC |
|
Temperature Measurement Degree of Accuracy
|
-20 ≤TS < 0 ±0.8(ºC)
0 ≤TS < 60 ±0.5(ºC)
60 < TS ≤85 ±0.8ºC |
|
Range of Humidity Measurement
|
0.0 – 100.0% RH |
|
Humidity Measurement Accuracy
|
At 25ºC
±1.0% RH (0-10% RH)
±8% RH (10-20% RH)
±5% RH (20-80% RH)
±8% RH (80-90% RH)
±10% RH (90-100% RH) |
|
Response Time (Temperature)
|
Temperature, Humidity: approx. 100 seconds to reach 63% at 25ºC with airflow speed of 1m/s(1) |
|
Processor Functionality
|
Accumulated Temperature: 0 to 999,999kº ch(2) |
|
Memory Capacity (Memory Mode)
|
16 | 32 | 64 | 128k sample |
|
Pre-trigger
(Memory Mode)
|
OFF/10 | 25 | 50 | 100% of selected memory |
|
Sampling Interval
|
0.5 | 1 | 2 | 5 | 10 | 20 | 30 sec
1 | 2 | 5 | 10 | 20 | 30 | 60 min
|
|
Alarm
|
OFF/level |
|
Temperature Unit of Denomination
|
ºC/ºF (selectable)
|
|
Waterproofing
|
Waterproof protection filter at the connection point. |
| |
|
Operating Environment
|
Within range of Temp/Humidity measurement.(3) |
|
External Dimensions
|
15mm x 45mm x 10.2mm (excludes protrusion) |
|
Weight
|
Approx. 14g (0.49 oz) |
(1) Varies by operating environment.
(2) Reset count at start of recording; exceeding or falling below standard temperature.
(3) GL100 main unit??????.
|
The Graphtec GL100-N is a compact data logger that goes up to 4 channels.
| |
