Graphtec Petit LOGGER GL100-N Data Logger w/ Voltage/Temp. Terminal
|
Item Number: GL100-N-4VT
Manufacturer: Graphtec Corp
Part Number: GL100-N-4VT
* Whole number only
|
|
Graphtec Petit LOGGER GL100-N Data Logger w/ Voltage/Temp. Terminal

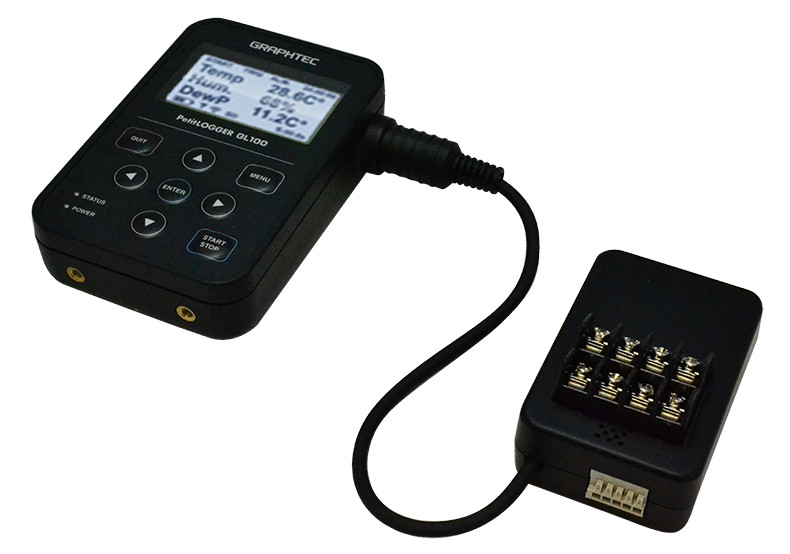

The GL100-N data logger can connect up to 4ch of voltage DC (20mV to 50V as well as 1-5V) and thermocouple (K or T type) temperature measurement. Each voltage / temperature channel is configurable and the combination of pulse and logic channels can be measured at the same time.
Easy connection to PC
GL100-N Features
- Modular
- Supports a variety of measurements by exchanging the input module
- PC and smart mobile device software available
- Industry-specific software: agriculture, logistics, power
- Built-in memory ~4.9MB
- microSD memory card port
Applications
Technical Specifications
|
Specifications of GL100-N
|
|
Item
|
Description
|
|
Number of channel
|
Up to 4 channels
(varies by the type of input module used, and measurement type is fixed with each input module.)
|
|
Interface to PC
|
USB 2.0
|
|
Functions
|
• Real-time data capturing
• Display the captured data value to the LCD in real-time and save the monitoring values
• Set conditions using the Menu setting
|
|
While using USB port:
• Output captured data in real-time
• Output the saved data from the internal memory
• Full control of the GL100 from the PC application software
|
|
Display
|
LCD (backlit monochrome, graphical type)
|
|
Storage device
|
• Built-in RAM (Approx. 4.9 MB)
• micro SD memory card
* Maximum file size for captured data is 1.9 GB.
|
|
Sampling interval
|
0.5 to 30 seconds and 1 to 60 minutes
|
|
Output signal
|
Alarm (1 channel)
|
|
Power source
|
• Battery (AA x 2)
• USB bus-power (micro USB connector)
* The required power capacity is 5V, 1A when AC adapter for microUSB drive is used. AC adapter is not included.
|
|
Operating environment
|
Temperature: -10 ºC to 50 ºC
Humidity: up to 80% RH (non condensed)
Water resistance: IP54
|
|
External dimension
|
Approx. 66 x 100 x 27 mm (exclude protrusion)
|
|
Weight
|
GL100-N: Approx. 125 g, GL100-WL: Approx. 130 g
|
|
Software
|
|
Item
|
Description
|
|
Supported OS
|
Windows: 8.1 / 8 / 7 / Vista (32- or 64-bit), Android OS: 4.3 or later, iOS: 7 or later
|
|
Controlled units
|
Up to 10 units
|
|
Accessories
|
|
Item
|
Model number
|
Description
|
|
Thermistor sensor (Normal
type)
|
GS-103AT-4P
|
Sensor for GS-4TSR module, 3 m, 4 pcs/set, Temp. range: -40 to
105 ºC
|
|
Thermistor sensor (Ultrathin
type)
|
GS-103JT-4P
|
Sensor for GS-4TSR module, 3 m, 4 pcs/set, Temp. range: -40 to
120 ºC
|
|
AC Current sensor
|
GS-AC50A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 50 A AC
|
|
AC Current sensor
|
GS-AC100A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 100 A AC
|
|
AC Current sensor
|
GS-AC200A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 200 A AC
|
|
Dual port adapter
|
GS-DPA
|
Connect up to two (2) sensors
|
|
Module Extension Cable
|
GS-EXC
|
Extension cable for input module, 1.5 m long
|
|
Item
|
Description |
|
GS-4VT
|
|
| |
|
Measurement Data
|
Voltage / Tempaerature, Logic / Pulse (instant, accumulated) |
| |
|
Measurement
channels
|
Voltage / Temperature 4ch
Logic / Pulse 4ch |
|
Voltage Measurement Range
|
20 | 50 | 100 | 200 | 500mV
1 | 2 | 5 | 10 | 20 | 50V
1-5FV F.S. |
|
Voltage Measurement Degree of Accuracy
|
0.15% of F.S. |
|
Input Impedence /
Input Method
|
1Ω±5% / Scan by means of photo-memory, full channel input disconnection
|
|
Temperature
Coefficient
|
Amplification: 0.01% of F.S./ºC Zero: 0.02% of F.S./ºC
|
|
Permitable Signal Resistance
|
300Ω and below
|
|
Maximum Input
Voltage
|
Input Terminal + / – Interval: 60Vp-p
Input Terminal / Input terminal interval: 60Vp-p
Input Terminal / GND Interval: 60Vp-p |
|
Voltage-Proofing
|
Input Terminal / Input terminal interval: 350Vp-p 1 Minute
Input Terminal / GND interval: 350Vp-p 1 Minute |
|
Insulation Resistance
|
Input Terminal / GND interval: 50MΩ and greater (at DC500V) |
|
Common Mode
Removal Ratio
|
90dB and greater (50/60Hz source signal 300Ω and lower) |
|
Noise
|
48dB and greater (+ / – at short) |
|
Range of
Temperature Measurement
|
<Thermocouple> K: -200.0ºC~1370.0ºC
T: -200.0ºC~400.0ºC |
Temperature Measurment Degree
of Accuracy
(Standard Compensation of ±0.5ºC) |
K-type
Thermocouple |
-200≤TS≤-100 ± (0.05% of rdg +2.0ºC)
-100≤TS≤1370ºC ± (0.05% of rdg +1.0ºC)
|
T-type
Thermocouple |
-200≤TS≤-100 ± (0.1% of rdg +1.5ºC)
-100≤TS≤400ºC ± (0.1% of rdg +0.5ºC)
|
|
Burnout Detection
|
Yes |
| Logic / Pulse Input |
Range of Input
Voltage |
0 to +24V (Single line ground input) |
| Input Signal |
Wireless pressure point (a contact point, b contact point, NO, NC),
open corrector, voltage input |
Input Voltage
Threshold |
Approx. 2.5V |
| Hysterisis |
Approx. 0.5V (+2v to +2.5V) |
|
Range of Pulse Measurement
|
Instant: Maximum 200C / sampling
Accumulated value: Maximum 65535C (clear accumulated value by QUIT key or when
starting recording) |
|
Room Temperature Compensation
|
ON / OFF |
|
Temperature Unit of Denomination
|
ºC/ºF |
|
Sampling Intervals
|
0.5 | 1 | 2 | 5 | 10 | 20 | 30 sec
1 | 2 | 5 | 10 | 20 | 30 | 60 min
|
|
Extension Cable
|
Approx. 20cm |
|
Operating
Environment
|
-10º to 50ºC, 80% RH and below (dew-less) |
|
External Dimensions
|
46mm x 66mm x 35.5mm (excludes protrusion) |
|
Weight
|
85g (2.99 oz) |
|
The Graphtec GL100-N is a compact data logger that goes up to 4 channels.
| |
