Graphtec Petit LOGGER GL100-N Data Logger w/ Illuminance/UV Sensor
|
Item Number: GL100-N-LXUV
Manufacturer: Graphtec Corp
Part Number: GL100-N-LXUV
* Whole number only
|

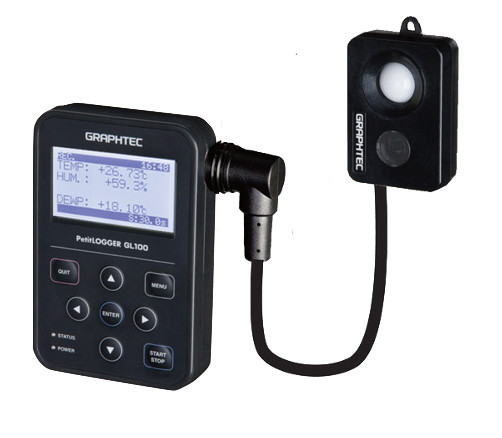

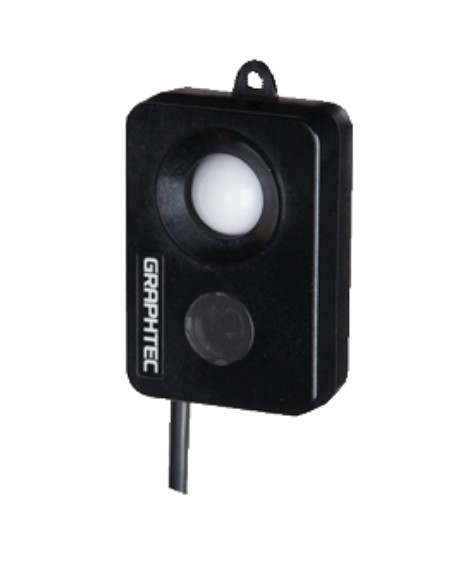

 Graphtec GL100-N Data Logger with Illuminance/UV Sensor Graphtec GL100-LXUV Luminance & UV Sensor |
|
Graphtec Petit LOGGER GL100-N Data Logger w/ Illuminance/UV Sensor
The GL100-N data logger comes with the illuminance and UV sensor for industries requiring accurate light metering with UV ray strength and accumulated luminance monitoring. This is the perfect hardware application for greenhouse, hydroponics, agriculture and botanical rooms gives managers real time environment and climate monitoring.
Easy connection to PC
GL100-N Features
- Modular
- Supports a variety of measurements by exchanging the input module
- PC and smart mobile device software available
- Industry-specific software: agriculture, logistics, power
- Built-in memory ~4.9MB
- microSD memory card port
Applications
Technical Specifications
|
Specifications of GL100-N
|
|
Item
|
Description
|
|
Number of channel
|
Up to 4 channels
(varies by the type of input module used, and measurement type is fixed with each input module.)
|
|
Interface to PC
|
USB 2.0
|
|
Functions
|
• Real-time data capturing
• Display the captured data value to the LCD in real-time and save the monitoring values
• Set conditions using the Menu setting
|
|
While using USB port:
• Output captured data in real-time
• Output the saved data from the internal memory
• Full control of the GL100 from the PC application software
|
|
Display
|
LCD (backlit monochrome, graphical type)
|
|
Storage device
|
• Built-in RAM (Approx. 4.9 MB)
• micro SD memory card
* Maximum file size for captured data is 1.9 GB.
|
|
Sampling interval
|
0.5 to 30 seconds and 1 to 60 minutes
|
|
Output signal
|
Alarm (1 channel)
|
|
Power source
|
• Battery (AA x 2)
• USB bus-power (micro USB connector)
* The required power capacity is 5V, 1A when AC adapter for microUSB drive is used. AC adapter is not included.
|
|
Operating environment
|
Temperature: -10 ºC to 50 ºC
Humidity: up to 80% RH (non condensed)
Water resistance: IP54
|
|
External dimension
|
Approx. 66 x 100 x 27 mm (exclude protrusion)
|
|
Weight
|
GL100-N: Approx. 125 g, GL100-WL: Approx. 130 g
|
|
Software
|
|
Item
|
Description
|
|
Supported OS
|
Windows: 8.1 / 8 / 7 / Vista (32- or 64-bit), Android OS: 4.3 or later, iOS: 7 or later
|
|
Controlled units
|
Up to 10 units
|
|
Accessories
|
|
Item
|
Model number
|
Description
|
|
Thermistor sensor (Normal
type)
|
GS-103AT-4P
|
Sensor for GS-4TSR module, 3 m, 4 pcs/set, Temp. range: -40 to
105 ºC
|
|
Thermistor sensor (Ultrathin
type)
|
GS-103JT-4P
|
Sensor for GS-4TSR module, 3 m, 4 pcs/set, Temp. range: -40 to
120 ºC
|
|
AC Current sensor
|
GS-AC50A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 50 A AC
|
|
AC Current sensor
|
GS-AC100A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 100 A AC
|
|
AC Current sensor
|
GS-AC200A
|
For GS-DAP-AC module, Cable 200 mm, Current range : 200 A AC
|
|
Dual port adapter
|
GS-DPA
|
Connect up to two (2) sensors
|
|
Module Extension Cable
|
GS-EXC
|
Extension cable for input module, 1.5 m long
|
|
Item
|
Description |
|
GS-LXUV
|
Luminance (0 lux to 200k lux) and
UV rays (0 to 30mW/cm2)
Dual sensor module |
| |
|
Measurement Data
|
Luminance, UV ray strength, Accumulated Luminance(1)
Accumulated UV ray strength(1) |
| |
|
Measurement ch
|
Luminance |
1ch
|
| UV Ray |
1ch
|
|
Measurement Range
|
Luminance |
0 lux to 200k lux
|
| UV Ray |
0 to 30mW/cm2
|
|
Measurement Degree
of Accuracy
|
Luminance |
±5%
|
| UV Ray |
±5%
|
|
Spectrum of Accuracy
|
Luminance |
400 to 750nm (peak 560nm)
|
| UV Ray |
260 to 400nm (peack 370nm)
|
|
Measurement
Resolution
|
Luminance |
0.1 lux
|
| UV Ray |
0.001mW/cm2
|
|
Response Time
|
Luminance |
1ms or less
|
| UV Ray |
1ms or less
|
|
Processor
Functionality
|
Luminance |
0 to 999,999 klxh
|
| UV Ray |
0 to 999,999W/cm2 (2)
|
|
Sampling Intervals
|
0.5 | 1 | 2 | 5 | 10 | 20 | 30 sec
1 | 2 | 5 | 10 | 20 | 30 | 60 min
|
|
Extension Cable
|
Approx 200mm
|
|
Operating Environment
|
-10º to 50ºC, 80% RH and below (non-condensed) |
|
External Dimensions
|
46mm x 66mm x 19mm (excludes protrusion) |
|
Weight
|
65g (2.29 oz) |
(1) Displays accuumulated value only during recording
(2) Accumulated value resets when recording starts or QUIT key is pressed
|
The Graphtec GL100-N is a compact data logger that goes up to 4 channels.
| |
