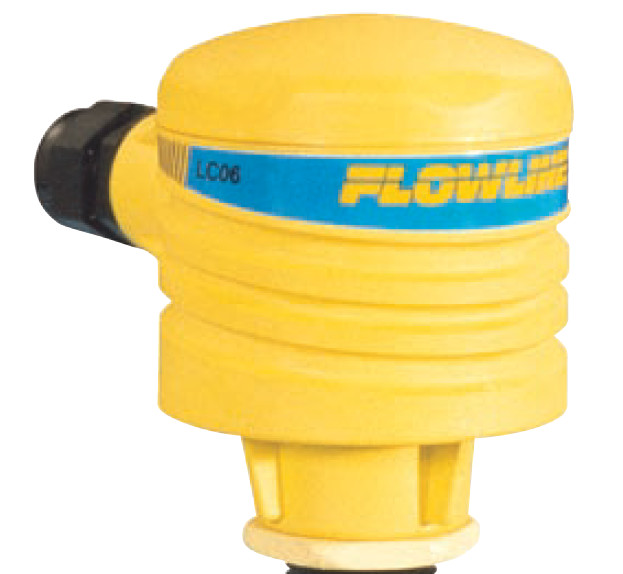

Flowline Switch-Pro LC0X Compact Junction Box
Our Price: Starting at $60.00
Manufacturer: Flowline
Part Number: LC0X
Product Options
| Size / terminals: |
|
| Enclosure mount: |
|
* Whole number only
|
|
Flowline Switch-Pro LC0X Compact Junction Box
Application
Offered in small and large sizes, the compact junction box is ideal for sensor wiring and conduit termination. The junction box is universally compatible with Flowlines level switch, flow switch and fitting products. The small enclosure has 6 poles and is typically used with a single level or flow switch sensor. The large enclosure has 12 poles for multiple level switches and is typically used with Smart Trak.
Features
- Polypropylene enclosure rated NEMA 4X with 300° conduit swivel base
- Compatible with Flowline sensors, installation fittings and alarms
- Removable terminal strips with upper and lower screw poles
- Offered in large and small sizes for single and multi-point installations
Technical Specifications
Sensor inputs:
|
LC05: 1-4 sensors
LC06: 1-2 sensors |
Terminal strip:
|
LC05: 12 pole socket
LC06: 6 pole socket |
| Enclosure rating: |
NEMA 4X (IP65) |
| Encl. material: |
PP, UL94VO |
Encl. mount:
|
1001: 3/4" NPT
1051: 3/4" Rp |
| Encl. rotation: |
300° swivel base
|
| Conduit entrance: |
Single, 1/2" NPT |
Temp. rating:
|
F: -40° to 158°
C: -40° to 70°
|
CE compliance:
|
EN 61326 EMC
EN 61010-1 safety |
|
