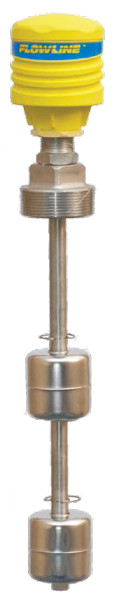

Flowline Float-Point AVX6 with Compact Junction Box
Application
The general purpose level float switch package provides reliable, multi-point liquid level detection of relatively clean liquids such as water, diluted chemicals and light weight oils up to 8' (2.44m) with 1-5 reed switch outputs and a compact junction box for integral wiring termination. The stainless steel level float switch is selected for high temperature or pressure process tank level applications.
Compact Junction Box with LM90-1001 liquid tight fitting
Features
- Multi-point float level switch package for high temp and pressure
- 60VA VA dry contacts selectable NO or NC via float orientation
- Rugged 316 stainless steel float, guide and process mounting plug
- Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment
- Assembled to your guide length and switch set point dimensions

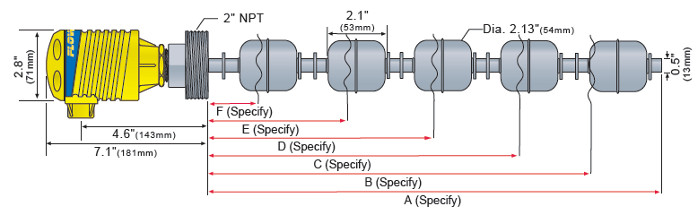

Dimensions (See A, B, C, D, E Measurements for Ordering Options)
Technical Specifications
| Length: |
3" to 8' (7.6cm to 2.4m) |
| Accuracy: |
± 3mm in water |
| Repeatability: |
± 1 mm in water |
| Specific gravity: |
0.55 minimum |
| Orientation: |
± 20° vertical |
| Switch points: |
1-5 (factory set) |
| Contact type: |
SPST reed(s) |
| Contact rating: |
240 VAC / VDC @ 60 VA |
| Contact output: |
Normally open |
| Process temp.: |
F: -40° to 392°
C: -40° to 200° |
| Ambient temp.: |
F: -40° to 140°
C: -40° to 60° |
| Installed height: |
5.2" (13.2cm) |
| Pressure: |
200 psi (13.8 bar) |
| Enclosure rating: |
NEMA 4X (IP65) |
| Enclosure mat.: |
PP, UL94VO |
| Terminal strip: |
12-pole, socket |
| Wire type: |
3-12 wire, #18 AWG |
| Conduit entrance: |
1/2" NPT |
| Wetted material: |
316 SS |
| Process mount: |
2" NPT |
| Classification: |
General purpose |
| Compliance: |
CE, RoHS |
| Approvals: |
UL |
|
