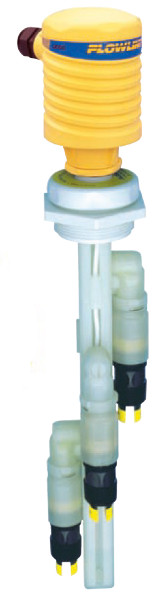

Flowline Smart Trak AXXX with Compact Junction Box
Our Price: CALL FOR PRICING
Manufacturer: Flowline
Part Number: AXXX
FREE SHIPPING IS NOT AVAILABLE FOR THIS PRODUCT
Product Options
| Sensor technology: |
|
| Number of sensors: |
|
| Contacts: |
|
| Process mount: |
|
Product Options

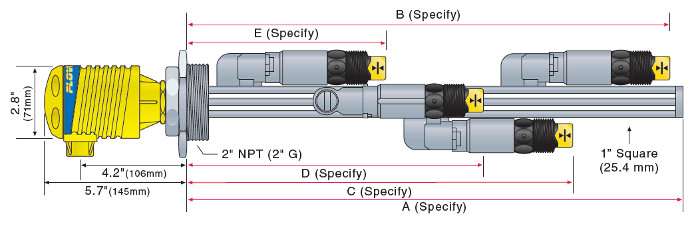

Flowline AXXX Switch Dimensions (See A, B, C, D, E Dimensions Below)
|
|
FREE SHIPPING IS NOT AVAILABLE FOR THIS PRODUCT
Flowline Smart Trak AXXX with Compact Junction Box
Application
The general purpose level switch package provides reliable, multi-point liquid level detection up to 10' (3m) with 1-4 adjustable level switch points and a compact junction box for integral wiring termination. Available in three level sensor technologies, select the sensor type based upon your application media. This PP liquid level switch package is widely applied in process, sump and day tank level applications for automatic filling or emptying with high level alarm and/or low level alarm.
Compact Junction Box
Features
- Rugged polypropylene multi-point level switch package for corrosive liquids
- 60VA relay or 15VA dry contact selectable NO or NC via wiring
- Offered in 3 sensing technologies for broad application coverage: ultrasonic, vibration & buoyancy
- Adjustable level switch cars enable sensor adjustment in the field
- Polypropylene enclosure rated NEMA 4X with swivel base and terminal strip
Dimensions (See A, B, C, D, E Measurements for Ordering Options)
Technical Specifications
| Length: |
8" to 10' (20cm to 3m) |
| Accuracy: |
± 1mm in water |
| Repeatability: |
± 0.5mm in water |
| Orientation: |
± 20° vertical |
| Switch points: |
1-4 (field adjustable) |
| Supply voltage: |
AVX6: N/A
AUX8: 12-36 VDC
AZX8: 12-30 VDC |
| Consumption: |
AVX6: N/A
AUX8 / AZX8: 100 mA max. |
| Contact type: |
AVX6: SPDT reed(s)
AUX8 / AZX8: SPST relay(s) |
| Contact rating: |
AVX6: 15 VA, 0.25A max.
AUX8 / AZX8: 60 VA, 1A max. |
| Contact output: |
Selectable NO / NC |
| Process temp.: |
F: -40° to 176°
C: -40° to 80° |
| Ambient temp.: |
F: -40° to 140°
C: -40° to 60° |
| Pressure: |
Atmospheric |
| Enclosure rating: |
NEMA 4X (IP65) |
| Enclosure mat.: |
PP, UL94VO |
| Terminal strip: |
12-pole, socket |
| Conduit entrance: |
1/2" NPT |
| Wetted material: |
PP (glass fill) |
| Process mount: |
2" NPT (2" G) |
| Classification: |
General purpose |
| Compliance: |
CE |
|
