Flowline Switch-Pak AX1X with Compact Junction Box
Our Price: CALL FOR PRICING
Manufacturer: Flowline
Part Number: AX1X
FREE SHIPPING IS NOT AVAILABLE FOR THIS PRODUCT
Product Options
| Sensor technology: |
|
| Contacts: |
|
| Wetted material: |
|
| Process mount: |
|
Product Options
Flowline AX1X Switch Dimensions (See A Dimensions Below)
|
|
FREE SHIPPING IS NOT AVAILABLE FOR THIS PRODUCT

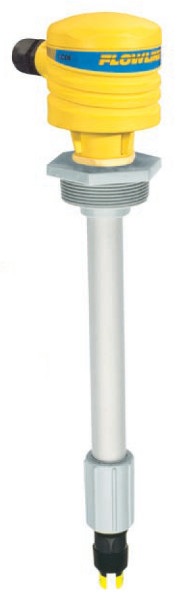

Flowline Switch-Pak AX1X with Compact Junction Box
Application
The general purpose level switch package provides reliable, high or low liquid level detection with one relay or reed switch output and a compact junction box for integral wiring termination. Available in three level sensor technologies, select the sensor type based upon your application media. This polypropylene or PVDF liquid level switch package is broadly applied in bulk storage, sump and day tank level applications as a high level alarm or low level alarm.
Junction Box
Features
- Polypropylene or PVDF single-point level switch package for corrosive liquids
- 60VA relay or 15VA dry contact selectable NO or NC via wiring
- Offered in 3 sensing technologies for broad application coverage: ultrasonic, vibration & buoyancy
- Available in intrinsically safe and general purpose classifications
- Polypropylene enclosure rated NEMA 4X with swivel base and terminal strip

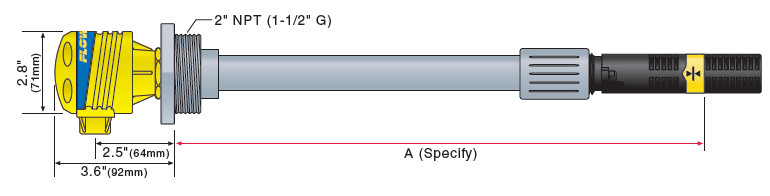

Dimensions (See A Measurements for Ordering Options)
Technical Specifications
| Length: |
6" to 10' (15cm to 3m) |
| Accuracy: |
± 1mm in water |
| Repeatability: |
± 0.5mm in water |
| Orientation: |
± 20º vertical |
| Switch points: |
1 (factory set) |
| Supply voltage: |
AV16: N/A
AU18: 12-36 VDC
AZ18: 12-30 VDC |
| Consumption: |
AV16: N/A
AU18 / AZ18: 25 mA max. |
| Contact type: |
AV16: (1) SPDT reed
AU18 / AZ18: (1) SPST
relay |
| Contact rating: |
AV16: 15 VA, 0.25A max.
AU18 / AZ18: 60 VA, 1A max. |
| Contact output: |
Selectable NO / NC |
| Process temp.: |
F: -40° to 176°
C: -40° to 80° |
| Ambient temp.: |
F: -40° to 140°
C: -40° to 60° |
| Pressure: |
AV16: 25 psi (1.7 bar)
AU15 / AZ18: 150 psi
(10 bar) |
| Enclosure rating: |
NEMA 4X (IP65) |
| Enclosure mat.: |
PP, UL94VO |
| Terminal strip: |
6-pole, socket |
| Conduit entrance: |
1/2" NPT |
| Wetted material: |
AV16-224X: PP
AU18-224X: PP
AU18-524X: PVDF
AZ18-424X: PP-Ryton® |
| Process mount: |
-X243: 2" NPT
-X247: 1 1/2" G |
| Classification: |
General purpose |
| Compliance: |
CE |
|
Our Price: Starting at $35.00
The Flowline LM50 is a quick and easy solution for mounting any level detector or sensor with a 2” NPT or metric fitting.
LM50-1001-1: 1" NPT Bracket, PP
LM50-1001: 2" NPT Bracket, PP
LM50-1061: 2" G Bracket, PP
|
Our Price: Starting at $60.00
Flowline Switch-Pro LC0X is ideal for sensor wiring and conduit termination. The junction box is universally compatible with Flowlines level switch, flow switch and fitting products.
|
