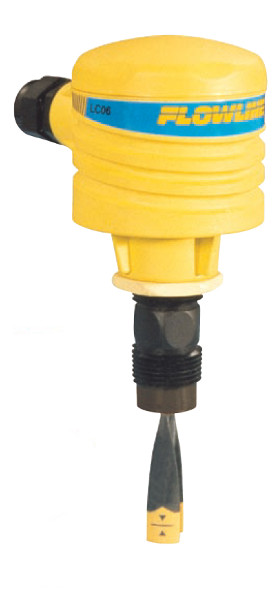

Flowline Switch-Pro AX18 with Compact Junction Box
Our Price: Starting at $435.00
Manufacturer: Flowline
Part Number: AX18
Product Options
| Sensor technology: |
|
| Contacts / classification: |
|
| Wetted material: |
|
| Process mount: |
|
* Whole number only
|
|
Flowline Switch-Pro AX18 with Compact Junction Box
Application
Intended for side wall installation, the general purpose level switch package provides reliable liquid level detection with one 1A relay and a compact junction box for integral wiring termination. Available in two level sensor technologies, select the type and material based upon your application media. This liquid level switch package is widely applied in bulk storage and process tank level applications as a high level alarm or low level alarm.

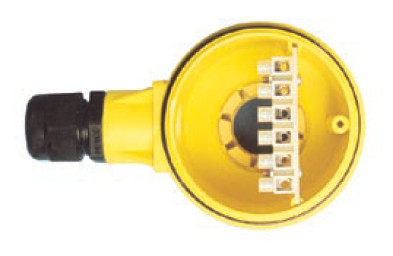

Junction Box
Features
- Rugged PP, Ryton® or PFA sensor for corrosive liquid applications
- 60VA relay selectable NO or NC via power supply wiring polarity
- Polypropylene enclosure rated NEMA 4X with swivel base and terminal strip
- Offered in 2 sensing technologies for broad application coverage: ultrasonic & vibration

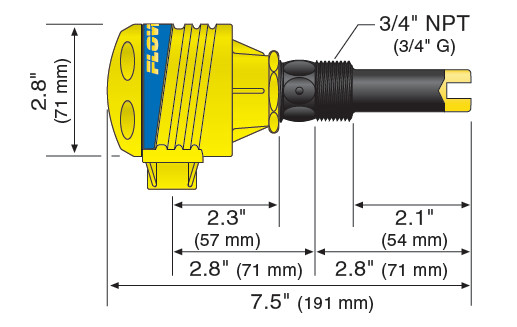

Dimensions (AU15-1130)
Technical Specifications
| Accuracy: |
± 1mm in water |
| Repeatability: |
± 0.5mm in water |
| Orientation: |
± 20º horizontal |
| Supply voltage: |
AZ18: 12-30 VDC
AU18: 12-36 VDC |
| Consumption: |
25 mA maximum |
| Contact type: |
(1) SPST relay |
| Contact rating: |
AU18 / AZ18: 60 VA, 1A max. |
| Contact output: |
Selectable NO / NC |
| Process temp.: |
F: -40º to 176º
C: -40º to 80º |
| Ambient temp.: |
F: -40° to 140°
C: -40° to 60° |
| Pressure: |
150 psi (10 bar) |
| Enclosure rating: |
NEMA 4X (IP65) |
| Enclosure mat.: |
PP, UL94VO |
| Terminal strip: |
6-pole, socket |
| Conduit entrance: |
1/2" NPT |
| Wetted material: |
AZ18-113X: Ryton®
AU18-113X: PP
AU18-213X: PFA |
| Process mount: |
3/4" NPT (3/4" G) |
| Mount. gasket: |
Viton® |
| Classification: |
General purpose |
| Compliance: |
CE |
|
Our Price: Starting at $60.00
Flowline Switch-Pro LC0X is ideal for sensor wiring and conduit termination. The junction box is universally compatible with Flowlines level switch, flow switch and fitting products.
| |
