Flowline DeltaSpan LD32 IS Submersible Pressure Level Transmitter
Our Price: Starting at $1,250.00
Manufacturer: Flowline
Part Number: LD32-IS
Product Options
| Cable Jacket: |
|
| Sensor Range: |
|
Product Options
Flowline DeltaSpan LD32 Accessory Options
* Whole number only
|
|

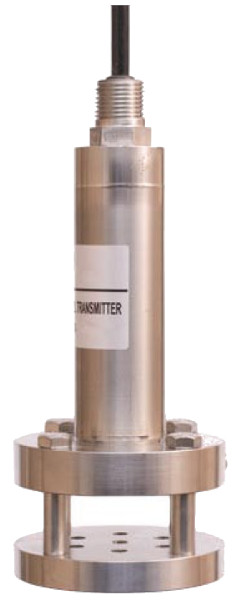

Flowline DeltaSpan LD32 IS Submersible Pressure Level Transmitter
Application
The intrinsically safe submersible pressure level transmitter is offered in two styles for different liquid types and provides continuous level measurement up to 46' (14m) of water column with a 4-20 mA signal output. Select the LD32 liquid level sensor for dirty, foaming or slurry type liquids. Application examples include municipal sewer or storm pump lift stations.
Features
- Corrosion resistant 316 SS body with polyurethane or ETFE cable
- Strong cable design with maintenance free breather tube and vent filter
- Automatic temperature compensation for accurate measurement
- Rugged clog and damage resistant diaphragm design

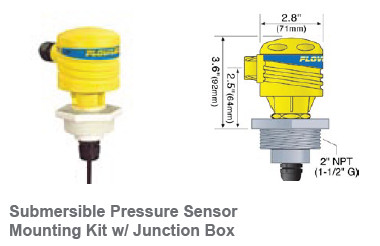

Accessories Dimensions
Technical Specifications
| Range: |
-SX01: 0 to 5 psi (0.34 bar),
0 to 11' (0 to 3.4m) wc
-SX11: 0 to 10 psi (0.69 bar),
0 to 23' (0 to 7m) wc
-SX21: 0 to 15 psi (1.0 bar),
0 to 34' (0 to 10.4m) wc
-SX31: 0 to 20 psi (1.38 bar),
0 to 46' (0 to 14m) wc |
| Accuracy: |
± 0.25% of full scale |
| Configuration: |
None, fixed span |
| Supply voltage: |
10 to 28 VDC |
| Loop resist.: |
900 Ohms |
| Signal output: |
4-20 mA, two-wire |
| Process temp.: |
F: 0° to 176°
C: -18° to 80° |
| Temp. comp.: |
F: 0° to 176°
C: -18° to 80° |
| Proof pressure: |
2 x full scale |
| Response time: |
50ms |
| Weight: |
4.3 lb (2.0 kg) |
| Trans. rating: |
NEMA 6 (IP67) |
| Trans. material: |
316 SS, 316L SS,
Buna-N |
| Trans. thread: |
1/2" NPT |
| Cable type: |
2-conductor, shielded
with vent tube |
| Cable length: |
-SX01 & SX11: 40' (12.2m)
-SX21 & SX31: 60' (18.3m) |
| Cable material: |
-S3X1: Polyurethane (IS)
-S4X1: ETFE (IS) |
| Classification: |
Intrinsically safe
Class I Div. 1 Groups A, B,
C & D; Class II Div. 1
Groups E, F & G;
Class III Div. 1T4 @ 80 °C ambient |
| Compliance: |
CE, UL Intrinsically safe
to UL standard 913
IEC 61000-4-2:2001
IEC 61000-4-3:2006
IEC 61000-4-4:2004
IEC 61000-4-5:2005
IEC 61000-4-6:2006
IEC 61000-4-8:2001
CENELEC EN 55011:2003
CENELEC EN 61326:2003
89/336/EEC EMC Directive |
| Parameters: |
Vmax = 28 VDC
Imax = 93 mA
Ci = 0.051_F
Li = 240_H
Pi = 0.651_W |
|
