Flowline DeltaSpan LD34 Small Bore Pressure Level Transmitter
Application
The general purpose LD34 small-bore submersible pressure level transmitter provides continuous level measurement up to 100' (30.4m) of water column with a 4-20 mA signal output. Select the LD34 liquid level sensor for monitoring of relatively clean water. Application examples include ballast tanks, ground water, surface water, dewatering, down hole and remediation.
Features
- Welded 316 SS body and 316 SS nose cap provide years of trouble free service
- Tapered body top prevents damage or snaring when removing from installation
- Incorporates lighting and surge protection
- Provides precise output readings with its ±0.25% of full scale accuracy

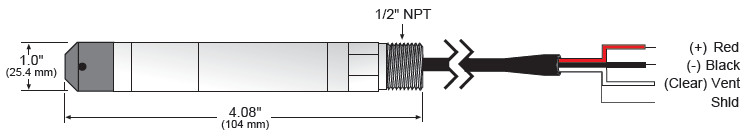

Accessories Dimensions
Technical Specifications
| Range: |
-SX01: 0 to 5 psi (0.34 bar),
0 to 11.55? (0 to 3.5m) wc
-SX11: 0 to 6.5 psi (0.45 bar),
0 to 15? (0 to 4.6m) wc
-SX21: 0 to 8.6 psi (0.60 bar),
0 to 20? (0 to 6.1m) wc
-SX31: 0 to 13 psi (0.90 bar),
0 to 30? (0 to 9.1m) wc
-SX41: 0 to 21.6 psi (1.49 bar),
0 to 50? (0 to 15.2m) wc
-SX51: 0 to 43.3 psi (2.99 bar),
0 to 100? (0 to 30.5m) wc |
| Service: |
Compatible liquids |
| Accuracy: |
± 0.25% of full scale |
| Configuration: |
None, fixed span |
| Supply voltage: |
10 to 33 VDC |
| Loop resist: |
1000 Ohms @ 30 VDC |
| Signal output: |
4-20 mA, two-wire |
| Process temp.: |
F: -4° to 176°
C: -20° to 80° |
| Temp. comp.: |
F: 0° to 158°
C: -18° to 70° |
| Thermal effect: |
±0.45% FS TEB |
| Proof pressure: |
2 x full scale |
| Response time: |
<50ms |
| Body weight: |
0.235 lb (0.107 kg) |
| Cable weight: |
0.037lb (0.0009 kg) per foot |
| Body and nose: |
316 SS |
| Seals: |
Fluroelastomer |
| Seals: |
Fluroelastomer |
| Trans. thread: |
½" NPT |
| Cable type: |
2-conductor, shielded with vent tube |
| Cable length: |
-S101 & S111: 40' (12.2m)
-S121 & S131: 60' (18.3m) |
| Cable material: |
Polyurethane |
|
