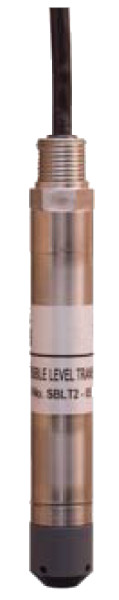

Flowline DeltaSpan LD31 IS Submersible Pressure Level Transmitter
Our Price: Starting at $900.00
Manufacturer: Flowline
Part Number: LD31-IS
Product Options
| Cable Jacket: |
|
| Sensor Range: |
|
Product Options
Flowline DeltaSpan LD31 Accessory Options
* Whole number only
|
|
Flowline DeltaSpan LD31 IS Submersible Pressure Level Transmitter
Application
The intrinsically safe submersible pressure level transmitter provides continuous level measurement up to 46' (14m) of water column with a 4-20 mA signal output. Select the LD31 liquid level sensor for relatively clean water, light weight oil or diluted chemical. Application examples include wet wells and water remediation.
Features
- Corrosion resistant 316 SS body with polyurethane or ETFE cable
- Strong cable design with maintenance free breather tube and vent filter
- Automatic temperature compensation for accurate measurement
Accessories Dimensions
Technical Specifications
| Range: |
-SX01: 0 to 5 psi (0.34 bar),
0 to 11' (0 to 3.4m) wc
-SX11: 0 to 10 psi (0.69 bar),
0 to 23' (0 to 7m) wc
-SX21: 0 to 15 psi (1.0 bar),
0 to 34' (0 to 10.4m) wc
-SX31: 0 to 20 psi (1.38 bar),
0 to 46'(0 to 14m) |
| Accuracy: |
± 0.25% of full scale |
| Configuration: |
None, fixed span |
| Supply voltage: |
10 to 28 VDC |
| Loop resist.: |
900 Ohms @ 28 VDC |
| Signal output: |
4-20 mA, two-wire |
| Process temp.: |
F: 0° to 176°
C: -18° to 80° |
| Temp. comp.: |
F: 0° to 176°
C: -18° to 80° |
| Proof pressure: |
2 x full scale |
| Weight: |
2.2 lb (1.0 kg) |
| Trans. rating: |
NEMA 6 (IP67) |
| Trans. material: |
316 SS, 316L SS,
Buna-N & PVC |
| Trans. thread: |
1/2" NPT |
| Cable type: |
2-conductor, shielded
with vent tube |
| Cable length: |
-SX01 & SX11: 40' (12.2m)
-SX21 & SX31: 60' (18.3m) |
| Cable material: |
-S3X1: Polyurethane (IS)
-S4X1: ETFE (IS) |
| Classification: |
Intrinsically safe
Class I Div. 1 Groups A, B,
C & D; Class II Div. 1
Groups E, F & G;
Class III Div. 1T4 @ 80 °C ambient |
| Compliance: |
CE, UL Intrinsically safe
to UL standard 913
IEC 61000-4-2:2001
IEC 61000-4-3:2006
IEC 61000-4-4:2004
IEC 61000-4-5:2005
IEC 61000-4-6:2006
IEC 61000-4-8:2001
CENELEC EN 55011:2003
CENELEC EN 61326:2003
89/336/EEC EMC Directive |
| Parameters: |
Vmax = 28 VDC
Imax = 93 mA
Ci = 0.051_F
Li = 240_H
Pi = 0.651_W |
|
