Newport Infinity IDP 4 Digit Process Panel Meter
|
Item Number: IDP
Manufacturer: Newport Electronics
Part Number: IDP
Product Options
* denotes required field
Newport IDP Model Selection*
You must select an option for 'Newport IDP Model Selection'.
Newport NEMA 4 Splash Proof Meter Cover*
You must select an option for 'Newport NEMA 4 Splash Proof Meter Cover'.
Newport Buttonless Bezel Option*
You must select an option for 'Newport Buttonless Bezel Option'.
Panel Meter NIST Calibration & Scaling*
You must select an option for 'Panel Meter NIST Calibration & Scaling'.
If Ordering Calibration and Scaling, Please Specify Scale in Engineering Units:
* Whole number only
|
|
Newport Infinity IDP Process Panel Meter
The Newport Model IDP is an economical, user-friendly panel meter which can be scaled without the use of an electronic calibrator. The IDP accepts voltage (0 to 5, 1 to 5 and 0 to 10 Vdc) or current (4 to 20 mA) signals. After scaling, the front keypad can be locked out to avoid unauthorized changes, and an optional bezel without “buttonholes” can be snapped into place.
Features:
- Easily Scaled in Any Engineering Unit from -1999 to 9999
- Full-Size 0.56" (14.2 mm) LED Display
- Contains 24 Vdc or 10 Vdc for Transducer Excitation
- Front Panel Min or Max and Tare Functions
- External Display Hold and Tare Standard
- Exceeds High Standards for Immunity and Emission
Very easy scaling via the front-panel pushbuttons provides an economical solution for monitoring a variety of process parameters. The Model IDP accepts voltage or current inputs and provides a 4-digit scaled indication of the measured value. The display is available in red or green, and an optional blank lens and NEMA-4 lens cover offer versatility for different applications. A 19-inch anodized aluminum panel is also available for mounting the meter into an existing rack. Standard features include a front panel activated, digital tare function, recall of the maximum or minimum measurement and a space saving short case.
Specifications - Newport IDP:
Accuracy: @ 25 C (77 F) +/-0.05 Rdg +/-1 lsd
Input: 0-5 Vdc, 1-5 Vdc, 0-10 Vdc/4-20 mA (bi-directional)
Operating Temp: 0 to 50 C (32 to 122 F)
Storage Temp: -40 to 85 C (-40 to 185 F)
Temp. Coefficient: 50 ppm/ C
Display: 4-digit, red or green LED, 0.56" (14 mm) high
Display Range: -1999 to 9999
Relative Humidity: 95% @ 40 C (104 F), non-condensing
Connections: Screw terminals
External Features: Tare, reset tare, display hold
Voltage: 115 Vac +/-10% standard (230 Vac or 10-32 Vdc optional)
Frequency: 50 or 60 Hz
Power Consumption: 3.5 watts max.
Dimensions: 96 x 48 x 104 mm (3.78 W x 1.89 H x 4.10" D)

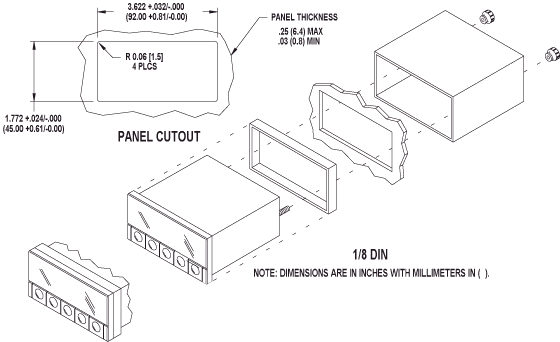

Panel Cutout: 92 x 45 mm (1/8 DIN, 3.62 W x 1.77" H)
Depth Behind Panel: 100 mm (3.94")
Weight: 312 g (11 oz)
OPTION SPC4 NEMA 4 SPLASH PROOF METER COVER
|
The SPC4 Option is a front-panel cover which provides environmental protection to NEMA-4 standards for all 1/8 DIN instruments, as seen from the front of the instrument panel
| |
