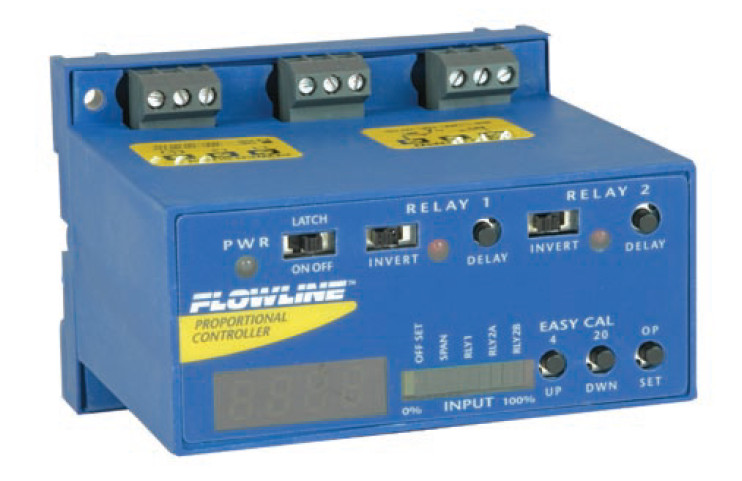

Flowline DataPoint LC52 Level Controller
|
Item Number: LC52-1001
Manufacturer: Flowline
Part Number: LC52-1001
Product Options
Single & Two Controller NEMA Box Accessory Option
* Whole number only
|
|
Flowline DataPoint LC52 Level Controller
Application
The general purpose controller provides single tank level indication with 2 relays, 1-3 set points and an isolated analog repeater. Relay 1 is configurable on a single set point. Relay 2 can be configured on a single set point or latched on two set points for automatic fill or empty control. Package the controller with any of our level transmitters. The NEMA 4X polycarbonate enclosure is a great choice for field mount installations and comes complete with a DIN rail mounting kit.
Features
- 3.5 digit LED display indicates level in custom engineering units
- Fail-safe relay control of pumps or valves with 0-60 second delay
- Easy set up with push button calibration for span, display and relay set points
- 35 mm DIN rail mount polypropylene enclosure with removable terminal strips
- Invert switch changes relay state from NO to NC without rewiring

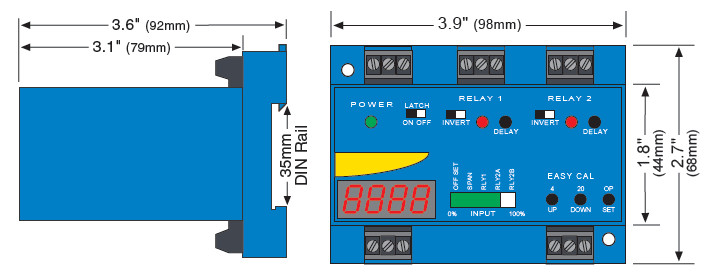

Dimensions
Technical Specifications
| Display type: |
LED, 3.5 digit |
| Display units: |
Engineering |
| Display output: |
0 to 999 |
| LED indication: |
Power & relay |
| LED bar graph: |
Span and set points |
| Memory: |
Non-volatile |
| Security: |
Set point lock out |
| Configuration: |
Push button |
| Alarm indication: |
Amber: < 4mA
Red: > 20 mA |
| Sensor input: |
(1) 4-20 mA |
| Supply voltage: |
Selectable 120 / 240
VAC 50-60 Hz |
| Sensor supply: |
24 VDC @ 1.5 watts |
| Loop power: |
4-20 mA, 18 VDC |
| Consumption: |
5 watts maximum |
| Contact type: |
(2) SPDT relays
(one latching) |
| Contact rating: |
250 VAC @ 10A |
| Contact output: |
Selectable NO / NC |
| Contact latch: |
Selectable ON / OFF |
| Contact delay: |
0-60 seconds |
| Repeater output: |
4-20 mA, 12-36 VDC |
| Ambient temp.: |
F: -40° to 158°
C: -40° to 70° |
| Enclosure type: |
35mm DIN rail
(EN 50 022) |
| Enclosure mat.: |
PP, UL94VO |
| Classification: |
General purpose |
| Compliance: |
CE |
Accessories
For enhanced flexibility and performance, use the below recommended accessories.
Single & Two Controller NEMA Box
P/N Description
LM94-1001 Single Controller, Windowed, 35mm Rail, Polycarbonate
LM95-1001 Two Controller, Windowed, 35mm Rail, Polycarbonate
|
