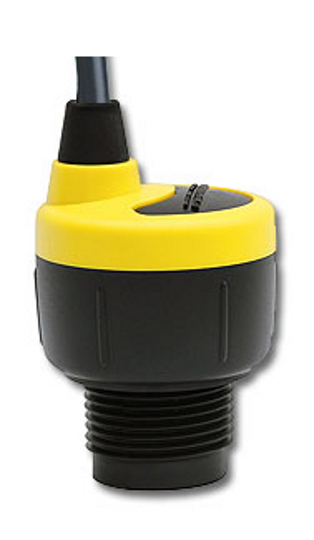

Flowline EchoPod DL14 1.25m Ultrasonic Multi-Function Transmitter, Switch & Controller
Our Price: Starting at $350.00
Manufacturer: Flowline
Part Number: DL14
Product Options
| DL14 Process Mount: |
|
| DL14 Fob USB Interface: |
|
* Whole number only
|
|
Flowline EchoPod DL14 1.25m Ultrasonic Multi-Function Transmitter, Switch & Controller
Application
The general purpose, ultrasonic sensor provides non-contact level detection up to 49.2" (1.25m) with 4 SPST 60 VA 1A relays and a two-wire 4-20 mA level measurement output. Each relay can be configured on a single set point alarm or latched on two sets for automatic fill or empty in simplex or duplex control modes with fail-safe logic. The embedded controller can replace external control hardware. The sensor is well suited for a wide range of corrosive, sticky or dirty type media. EchoPod is broadly selected for small atmospheric day tank, skid or process vessel, lift station, IBC, drum and sump applications. To configure EchoPod, download our free WebCal software and purchase one USB interface tool.
Features
- Switch and control functions with continuous level measurement output up to 49.2' (1.25m)
- Configuration is fast and easy via WebCal software and USB adapter
- Narrow 2" beam width and short 2" dead band optimized for small tanks
- Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail-safety
• 1 pump or valve with 3 alarms
• 2 pumps (lead-lag) with 2 alarms
• 2 pumps (duplexing) with 2 alarms
• 4 independent switch point alarms
- PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
- Automatic temperature compensation for accurate measurement
Technical Specifications
| Range: |
49.2" (1.25m) |
| Accuracy: |
0.125" (3mm) |
| Resolution: |
0.019" (0.5mm) |
| Dead band: |
2" (5cm) |
| Beam width: |
2" (5cm) |
| Configuration: |
WebCal® PC Windows® USB 2.0 USB 2.0 |
| Memory: |
Non-volatile |
| Supply voltage: |
24 VDC (loop) |
| Consumption: |
0.5W |
| Loop resist.: |
400Ω max |
| Signal output: |
4-20 mA, two-wire |
| Signal invert: |
4-20 mA or 20-4 mA |
| Signal fail-safe: |
4 mA, 20 mA, 21 mA,
22 mA or hold last |
| Contact type: |
(4) SPST relays |
| Contact rating: |
60 VA, 1A maximum |
| Contact fail-safe: |
Power loss: Hold last
Power on: Open, close
or hold last |
| Hysteresis: |
Selectable |
| Process temp.: |
F: 20° to 140°
C: -7° to 60° |
| Temp. comp.: |
Automatic |
| Ambient temp.: |
F: -31° to 140°
C: -35° to 60° |
| Pressure: |
MWP = 30 PSI (2 bar) |
| Enclosure rating: |
Type 6P, encapsulated,
corrosion resistant & submersible |
| Encl. material: |
Polycarbonate |
| Strain relief mat.: |
Santoprene |
| Trans. material: |
PVDF |
| Cable jacket mat.: |
Polyurethane |
| Cable type: |
9-conductor, shielded |
| Cable length: |
48" (1.2m) |
| Process mount: |
1" NPT (1" G) |
| Mount gasket: |
Viton® |
| Classification: |
General purpose |
| Compliance: |
CE, RoHS |
| Approvals: |
cFMus
|
|
Flowline DataPoint LC52 provides single tank level indication with 2 relays, 1-3 set points and an isolated analog repeater.
|
Flowline Commander LI90 displays engineering units with four 4-20 mA continuous level sensor inputs and 6 programmable relays.
|
