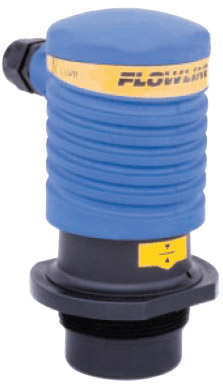

Flowline Echotouch IS Two-Wire Ultrasonic Level Transmitter (up to 18 Feet)

Flowline Echotouch IS Two-Wire Ultrasonic Level Transmitter

     • Intrinsically safe transmitter for use in hazardous environments
     • LCD digital display indicates level in inches or centimeters
     • PP enclosure rated NEMA 4X with rugged Kynar transducer
     • EasyCal simple push button calibration for all user set points

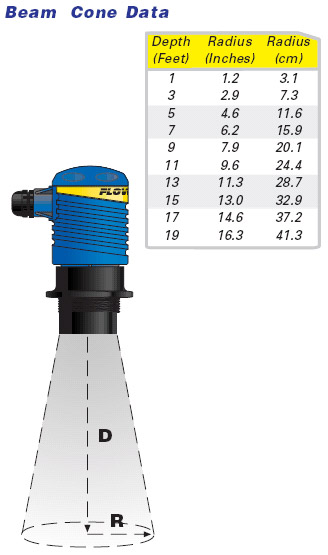

     • Adjustable dead band and range filters eliminate false echo returns

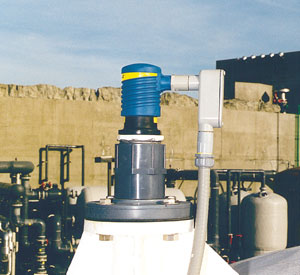

Offered in CSA and Cenelec approved intrinsically safe or general purpose configurations, the two-wire ultrasonic transmitter provides noncontact level measurement up to 18’ or 5.4m, and is ideally suited for challenging corrosive, slurry or waste liquids. The transmitter is typically selected for atmospheric bulk storage, day tank and waste sump applications located within a classified hazardous area. Media examples include diesel fuel and hydrochloric acid. The transmitter is calibrated in less than a minute using the LCD display, 4-button interface and intuitive calibration menu. All user set points are held in nonvolatile memory. In the event of acoustic signal loss, the transmitter will hold the current output at the user designated safe state.

Flowline LU20 Data Sheet
