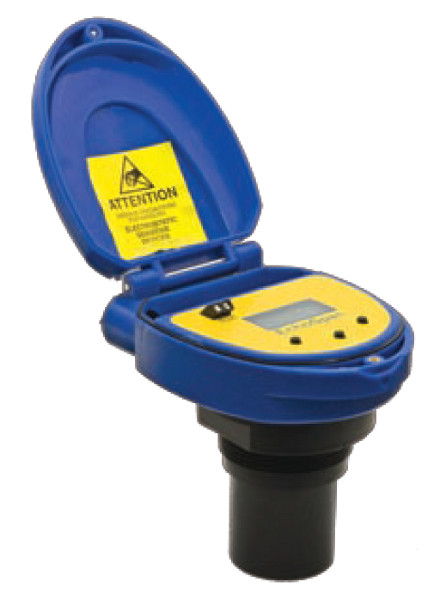

Flowline EchoSpan Two-Wire Ultrasonic Level Transmitter
|
Item Number: LU
Manufacturer: Flowline
Part Number: LU
Product Options
* denotes required field
Echospan Sensor Range Selection*
You must select an option for 'Echospan Sensor Range Selection'.
Echospan Process Mount Selection*
You must select an option for 'Echospan Process Mount Selection'.
* Whole number only
|
|
Flowline EchoSpan Two-Wire Ultrasonic Level Transmitter
Application
The general purpose ultrasonic level transmitter provides continuous level measurement up to 32.8' (10m) with a 4-20 mA signal output, and is configured via its integral push button display module. This non-contact liquid level sensor is ideally suited for corrosive, ultrapure, sticky or dirty liquids, and is broadly selected for bulk storage, day tank, lift station and process tank level applications.
Feature
- Offered in 4 measurement ranges from 9.8' (3m) to 32.8' (10m)
- Configuration is simple via integral push button display module
- LCD display indicates level in inches, centimeters and percentages
- Narrow 2" or 3" beam width for applications with limited measurement space
- Fail-safe intelligence and diagnostic feedback for simple troubleshooting
- PVDF transducer and NEMA 4X polycarbonate enclosure for corrosive liquids
- Automatic temperature compensation for accurate measurement

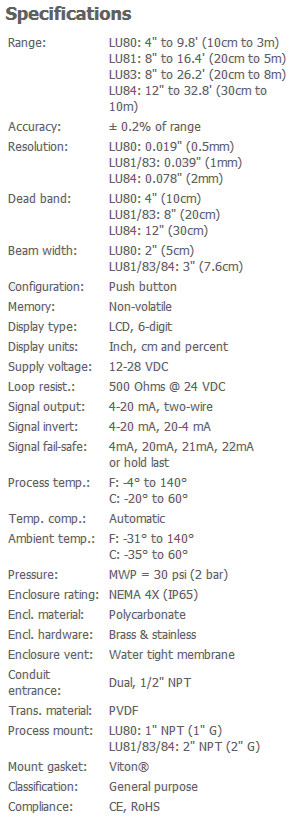

Technical Specifications

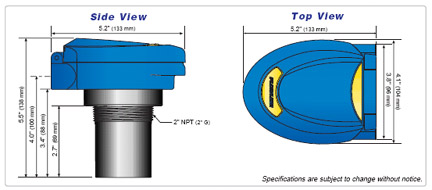

Dimensions

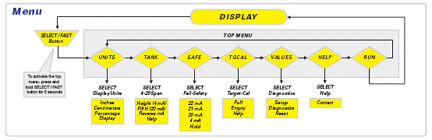

Calibration
Calibration is fast and simple with our scrolling single layer menu, three button interface and 6-segment LCD display. Troubleshooting is easy with our unique Setup and Diagnostic feedback modes. Setup displays the transmitter's calibration set points. Diagnostics provides users with a snapshot of sensor performance and application variables. Its full feature level made simple.
|
