Additel ADT223A Documenting Process Calibrator
|
Item Number: ADT223A
Manufacturer: Additel Corporation
Part Number: ADT223A
* Whole number only
|
|

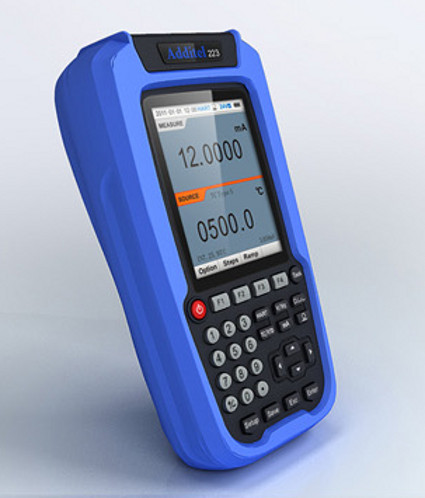

Additel ADT223A Documenting Process Calibrator
A highly integrated multifunction calibrator featuring several patented technologies, the ADT223A is an ultra-compact, rugged, and easy-to-use hand-held device for sourcing, simulating and measuring pressure, temperature, and electrical signals. Its smartphone-like menu and interface make the operation simpler and easier. With HART communication capability, the ADT223A is ideal for calibrating, maintaining, and troubleshooting HART instrumentation. Automation and documentation capabilities make the ADT223A a turnkey solution.
Additel ADT223A Features:
- Sourcing, simulating and measuring pressure, temperature and electrical signals
- Sournces and measures mV, mA, ohms, RTDs, thermocouples, frequency, and pulses
- Simulates and measures 13 thermocouples, 11 RTDs, and pressure to calibrate transmitters
- Measures and sources pressure using ADT 160 series Intelligent Digital Pressure Modules form -15 psi to 10,000 psi (-1 bar to 700 bar)
- 24V loop power supply
- Simultaneous dual reading capability
- Automatic switch test
- Supports square root transmitter
- Pulse frequency output for the calibration of flow totalizer
- Easy to use
- Smartphone-like menu and interface make the operation simpler and easier
- Ultra-compact, size 3.9" x 7.6" x 2.0" (100mm x 192mm x 52mm), and weight 1.6 lb (0.7 kg)
- One hand operation
- Calibrated cold junction compensation (Patented)
- Cold junction equivalent block in the calibrator
- A calibrated PRT element with flexible leads is installed in the equivalent block for thermocouple cold junction compensation
- This PRT element can be pulled from the calibrator and re-calibrated and corrected at ice point by users
- Built-in temperature readout
CVD coefficientsof a calibrated PRT can be input into the calibrator for accurate temperature measurement
- Multi lingual interface
English, German, French, Italian, Spanish, Portuguese, Simplified Chinese (Traditional Chinese, Japanese and Russian are available per request)
- Documenting and automated procedure capability
- Manage the information of the device under test
- Set up automated calibration procedures, and ADT223A performs the test, calculates the errors, displays and/or stores the results in the memory, and highlights the out-of-tolerance points.
- As-found and As-left functions allow recording and documenting results for quality control
- Download tasks and upload the results
- Snapshots allow you to capture and save work
- Hart Communication capability
Support HART® instrumentation
- Build-in unit conversion tool
Build-in converters for pressure units, temperature units, temperature vs. resistance (RTDs), and temperature vs. millivolt (thermocouple)
- Display
3.5 inch TFT color screen
- Rugged
- Rugged design for harsh environments
- Passed a 1-meter drop test
- Three year warranty for the ADT223A, and one year for the battery pack
- Misuse protection
Up to 30V voltage on any two sockets and up to 1A current on current sockets will not damage the calibrator. The calibrator will return to normal condition as soon as the voltage or current is removed
- Rechargeable battery
- Rechargeable Li-ion battery for 15 hours uninterrupted use
- Battery life will be reduced when 24V is applied
- The rechargeable battery is replaceable
- NIST Traceable Calibration with Data
- Warranty: 3 years
Additel ADT223A Applications:
The ADT223A multifunction calibrator is a process tool for measuring, sourcing and simulating mA, V, RTDs, thermocouples, ohms, frequency, pulses and pressure, captures switch values and provides 24 V loop power.
- Electrical
- Resistance measurement/simulation
- Frequency measurement/generation
- Switch sensing
- Voltage Masurement/generation
- Pulse counting/generation
- Current measurement/generation
- 24 VDC loop supply
- Switch sensing
- Temperature
- RTD measurement/simulation
- TC measurement/simulation

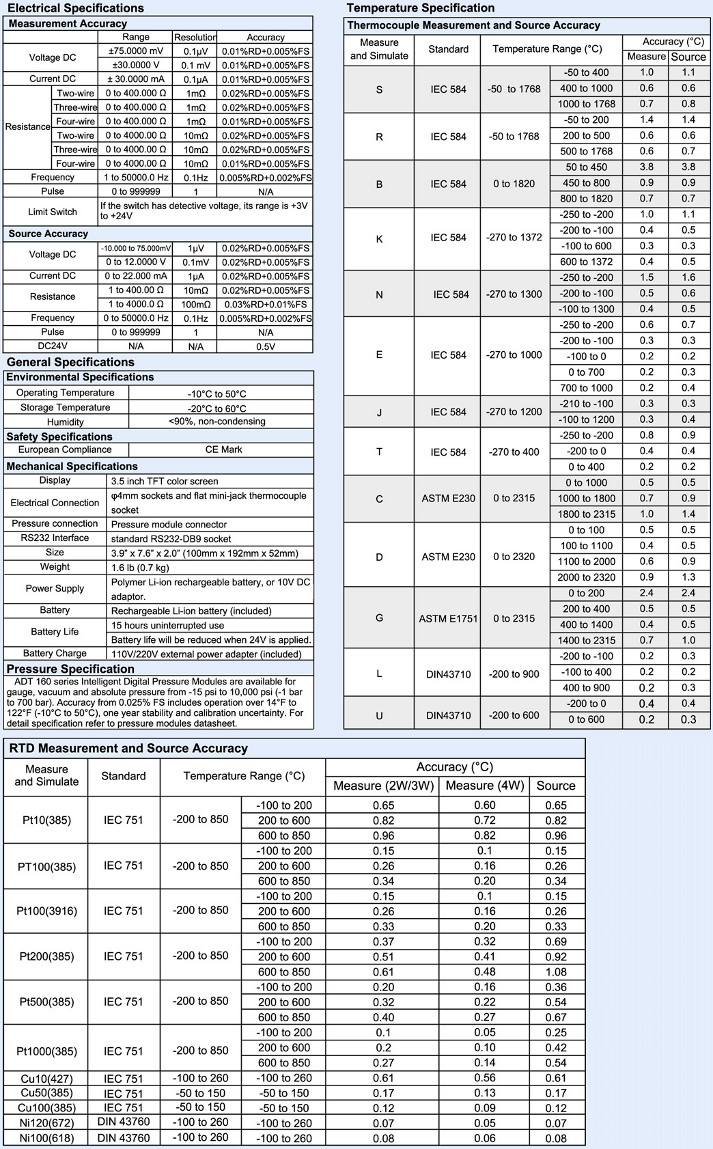

Additel ADT223A Specifications:
|
