Additel ADT220 Multifunction Loop Calibrator
|
Item Number: ADT220
Manufacturer: Additel Corporation
Part Number: ADT200
* Whole number only
|
|

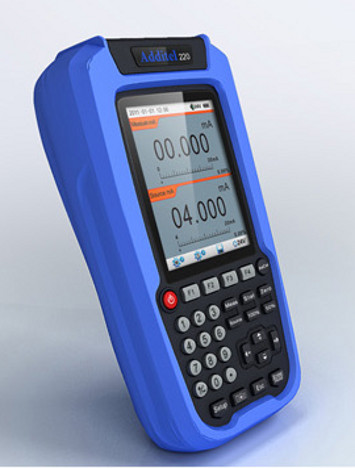

Additel ADT220 Multifunction Loop Calibrator
The Additel ADT220 is a highly integrated loop calibrator that features several patented technologies. The calibrator is ultra-compact, rugged,
and best of all, easy to use. It is a true hand held device that will source, simulate, and measure loop current, mV/V, loop integrity and also perform
switch testing. It's smart phone like menu makes it simple and easy to use. The ADT220 is ideal for calibrating, maintaining, and troubleshooting
various loop devices in the field.
Additel ADT220 Features:
- Measuring and sourcing loop current, mV, and V
- Measures loop current up to 30mA with 0.1uA resolution
- Measures voltage signals up to 60 V, and mV signals up to 300mV
- Sources loop current, mV, and V
- 24V loop power supply with simultaneous current measurement
- Simultaneous dual reading capability
- Capture switch
- Data Statistics and analysis
- Display max, min, peak-to-peak, average, and percentage simultaneously
- Convert data to a real physical value through re-scaling function
- Data Logging
- High-capacity storage with up to twenty thousand records
- On-line view, index, analyze, auto-curve, and list the data
- Various sources and converting mode
- Support linear, flow, valve, and 25% stepping source
- Auto-source of ramping and stepping
- Gauge span examination
- "As Cal" on-site calibration tools
- Four on-site calibration tools preset: loop indicator, sensor/transmitter, signal isolator/converter, and limit alarm/switch
- Support 2W transmitter connection
- Multi lingual interface
- English, simplified Chinese
- Convenient tools
- Calculator, thermocouple converter, HOLD screen lock
- Easy to Use
- Smartphone-like menu and interface make the operation simpler and easier
- Ultra-compact, size 3.9" x 7.6" x 2.0" (100mm x 192mm x 52mm), and weight 1.6 lb (0.7 kg)
- One hand operation
- Snapshot
- Save and manage up to 100 snapshots
- Display
- 3.5 inch TFT color screen
- 4, 5, or 6 digits adjustable display
- Rugged
- Rugged design for harsh environments.
- Passed a 1-meter drop test
- Three year warranty for the ADT 220, and one year for the battery pack
- Misuse protection and Electrical Isolation
- Up to 30V voltage on any two sockets and up to 1A current on current sockets will not damage the calibrator. The
calibrator will return to normal condition as soon as the voltage or current is removed
- Measuring, sourcing and loop power circuits are electrically isolated each other.
- Rechargeable battery
- Rechargeable Li-ion battery for 15 hours uninterrupted use
- Battery Life will be reduced when 24V is applied
- This rechargeable battery is replaceable
- NIST Traceable Calibration with data
- Firmware upgrade
- support firmware upgrade when available
- Warranty: 3 years
Additel ADT220 Applications:
The ADT220 loop calibrator is a process tool for measuring, sourcing and simulating mA, mV, and V, captures switch values
and provides 24 V loop power. It is a high performance solution for calibration, repair, and maintenance of various loops
devices, loop integrity check, and switch capture.

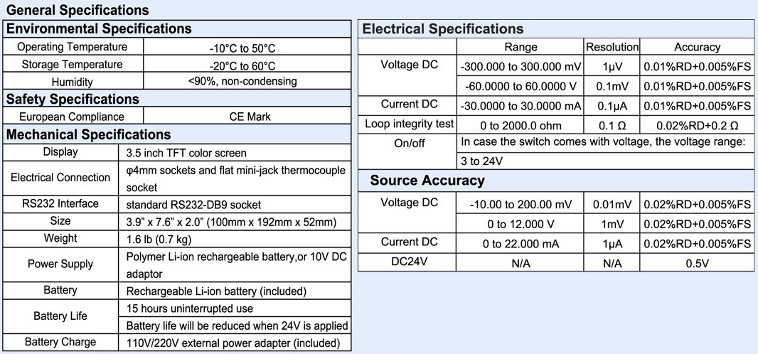

Additel ADT220 Specifications:
|
