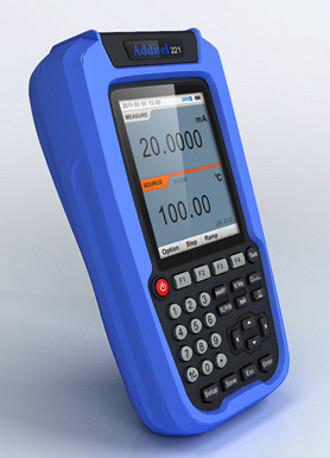

Additel ADT221A Multifunction Temperature Calibrator
The Additel ADT221A is a highly integrated Multifunction Temperature Calibrator featuring several patented technologies,
the ADT221A is a ultra-compact, rugged, and easy-to-use hand-held device for sourcing, simulating and measuring temperature,
and electrical signals. Its smartphone-like menu and interface make the operation simpler and easier. The ADT221A is ideal for
calibrating, maintaining, and troubleshooting process instrumentation. Automation and documentation capabilities make the
ADT221A a turnkey solution.
Additel ADT221A Features:
- Sourcing, simulating and measuring temperature and electrical signals
- Sources and measures mV, mA, ohms, RTDs, thermocouples, frequency, and pulses
- Simulates and measures 13 thermocouples and 11 RTDs to calibrate transmitters
- 24V loop power supply
- Simultaneous dual reading capability
- Automatic switch test
- Supports square root transmitter
- Pulse frequency output for the calibration of flow totalizer
- Easy to Use
- Smartphone-like menu and interface make the operation simpler and easier
- Ultra-compact, size 3.9" x 7.6" x 2.0" (100mm x 192mm x 52mm), and weight 1.6 lb (0.7kg)
- One hand operation
- Calibrated cold junction compensation (Patented)
- Cold junction equivalent block in the calibrator
- A calibrated PRT element with flexible leads are installed in the equivalent block for thermocouple cold junction.
- This PRT element can be pulled out from the calibrator and re-calibrated and corrected at ice point by users
- Built-in temperature readout
CVD coefficients of a calibrated PRT can be input into the calibrator for accurate temperature measurement
- Multilingual interface
English, German, French, Italian, Spanish, Portuguese, Simplified Chinese (Traditional Chinese, Japanese and
Russian are available per request)
- Documenting and automated procedure capability
- Manage the information of the device under test
- Set up automated calibration procedures, and ADT221A performs the test, calculates the errors, and displays and/or
stores the results in the memory, and highlights the out-of-tolerance points
- As-found and As-left functions allow recording and documenting results for quality control
- Download tasks and upload the results
- Snapshots allow you to capture and save work
- Built-in unit conversion tool
Built-in converters for pressure units, temperature units, temperature vs. resistance (RTDs), and temperature
vs. millivolt (Thermocouples)
- Display
3.5 inch TFT color screen
- Rugged
- Rugged design for harsh environments
- Passed a 1-meter drop test
- Three year warranty for the ADT221A, and one year for the battery pack
- Misuse protection
Up to 30V voltage on any two sockets and up to 1A current on the current sockets will not damage the calibrator.
The calibrator will return to normal condition as soon as the voltage or current is removed
- NIST Traceable Calibration with data
- Rechargeable battery
- Rechargeable Li-ion battery for 15 hours uninterrupted use
- Battery life will be reduced when 24V is applied
- The rechargeable battery is replaceable
- Warranty: 3 years
Additel ADT221A Applications:
The ADT221A multifunction temperature calibrator is a process tool for measuring, sourcing, and simulating mA,
mV, V, RTDs, thermocouples, ohms, frequency, and pulses, caputures switch valves and provides 24V loop power
- Electrical
- Resistance measurement / simulation
- Voltage measurement / generation
- Current measurement /generation
- Frequency measurement / generation
- Pulse counting / generation
- 24 VDC loop supply
- Switch sensing
- Temperature
- RTD measurement / simulation
- TC measurement / simulation

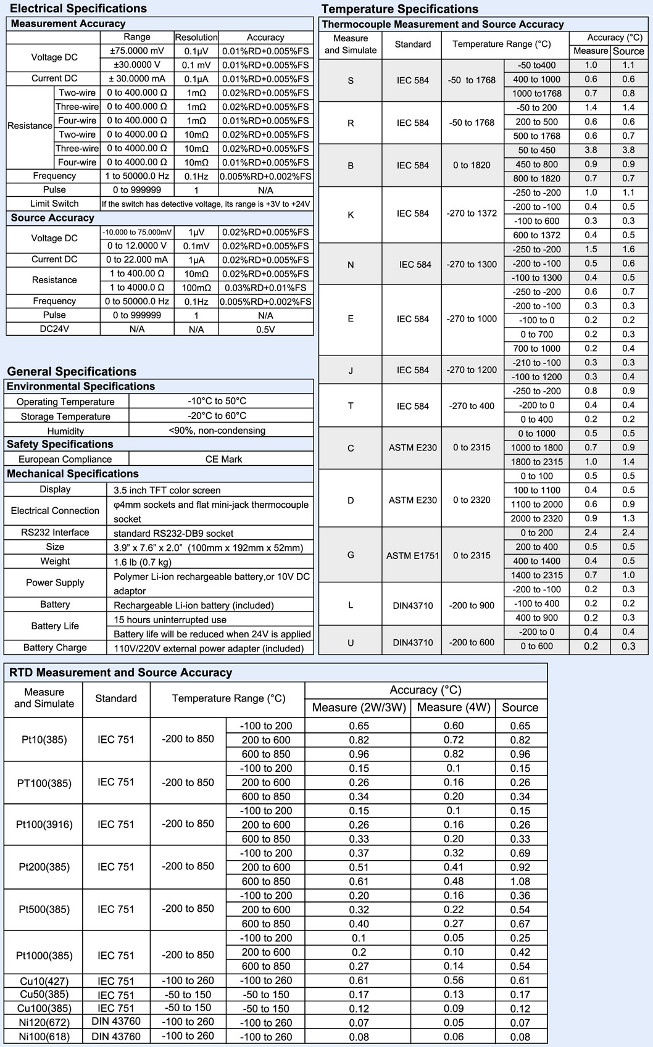

Additel ADT221A Specifications:
|
