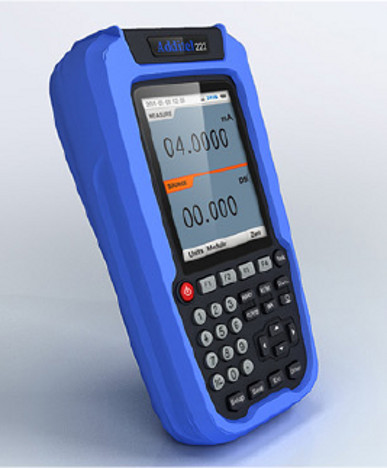

Additel ADT222A Multifunction Process Calibrator
A highly integrated multifunction calibrator featuring several patented technologies, the ADT222A is an ultra-compact, rugged, and easy-to-use hand-held device for sourcing, simulating and measuring pressure, temperature, and electrical signals. Its smartphone-like menu and interface make the operation simpler and easier. The ADT222A is ideal for calibrating, maintaining, and troubleshooting process instrumentation. Automation and documentation capabilities make the ADT222A a turnkey solution.
Additel ADT222A Features:
- Sourcing, simulating, and measuring pressure, temperature and electrical signals
- Sources and measures mV, mA, ohms, RTDs, thermocouples, frequency, and pulses
- Simulates and measures 13 thermocouples, 11 RTDs, and pressure to calibrate transmitters
- Measures and sources pressure using ADT 160 series Intelligent Digital Pressure Modules from -15 psi to 10,000 psi (-1 bar to 700 bar)
- 24V loop power supply
- Simultaneous dual reading capability
- Automatic switch test
- Support square root transmitter
- Pulse frequency output for the calibration of flow totalizer
- Easy to Use
- Smartphone-like menu and interface make the operation simpler and easier
- Ultra-compact, size 3.9" x 7.6" x 2.0" (100mm x 192mm x 52 mm), and weight 1.6 lb (0.7 kg)
- One hand operation
- Calibrated Cold Junction Compensation (Patented)
- Cold juction equivalent block in the calibrator
- A calibrated PRT element with flexible leads is installed in the equivalent block for thermocouple cold junction compensation
- This PRT element can be pulled out from the calibrator and re-calibrated and corrected at ice point by users
- Built-in temperature readout
CVD coefficients of a calibrated PRT can be input into the calibrator for accurate temperature measurement
- Multi Lingual interface
English, German, French, Italian, Spanish, Portuguese, Simplified Chinese (Traditional Chinese, Japanese and Russian are available per request
- Documenting and automated procedure capability
- Manage the information of the device under test
- Set up automated calibration procedures, and the ADT222A performs the test, calculates the errors, displays and/or stores the results in the memory, and the highlights the out-of-tolerance points
- As-found and As-left data allow recording and documenting results for quality control
- Download tasks and upload the results
- Snapshots allow you to capture and save work
- Build-in unit conversion tool
Built-in converters for pressure units, temperature units, temperature vs resistance (RTDs), and temperature vs millivolt (thermocouples)
- Display
3.5 inch TFT color screen
- Rugged
- Rugged design for harsh environments
- Passed a 1-meter drop test
- Three year warranty for the ADT222A, and one year for the battery pack
- Misuse protection
Up to 30V voltage on any two sockets and up to 1A current on current sockets will not damage the calibrator. The calibrator will return to normal condition as soon as the voltage or current is removed
- Rechargeable battery
- Rechargeable LI-ion battery for 15 hours uninterrupted use.
- Battery life will be reduced when 24V is applied
- The rechargeable battery is replaceable
- NIST Traceable Calibration with Data
- Warranty: 3 years
Additel ADT222A Applications:
The ADT222A multifunction process calibrator is a process tool for measuring, sourcing and simulating mA, mV, V, RTDs, thermocouples, ohms, frequency, pulses and pressure, captures switch values and provides 24 V loop power.
- Electrical
- Resistance measurement / simulation
- Voltage Measurement / generation
- Current measurement / generation
- Frequency measurement / generation
- Pulse counting / generation
- 24VDC loop supply
- Switch sensing
- Temperature
- RTD measurement / simulation
- TC measurement / simulation
- Pressure
- Gauge pressure measurement
- Absolute pressure measurement

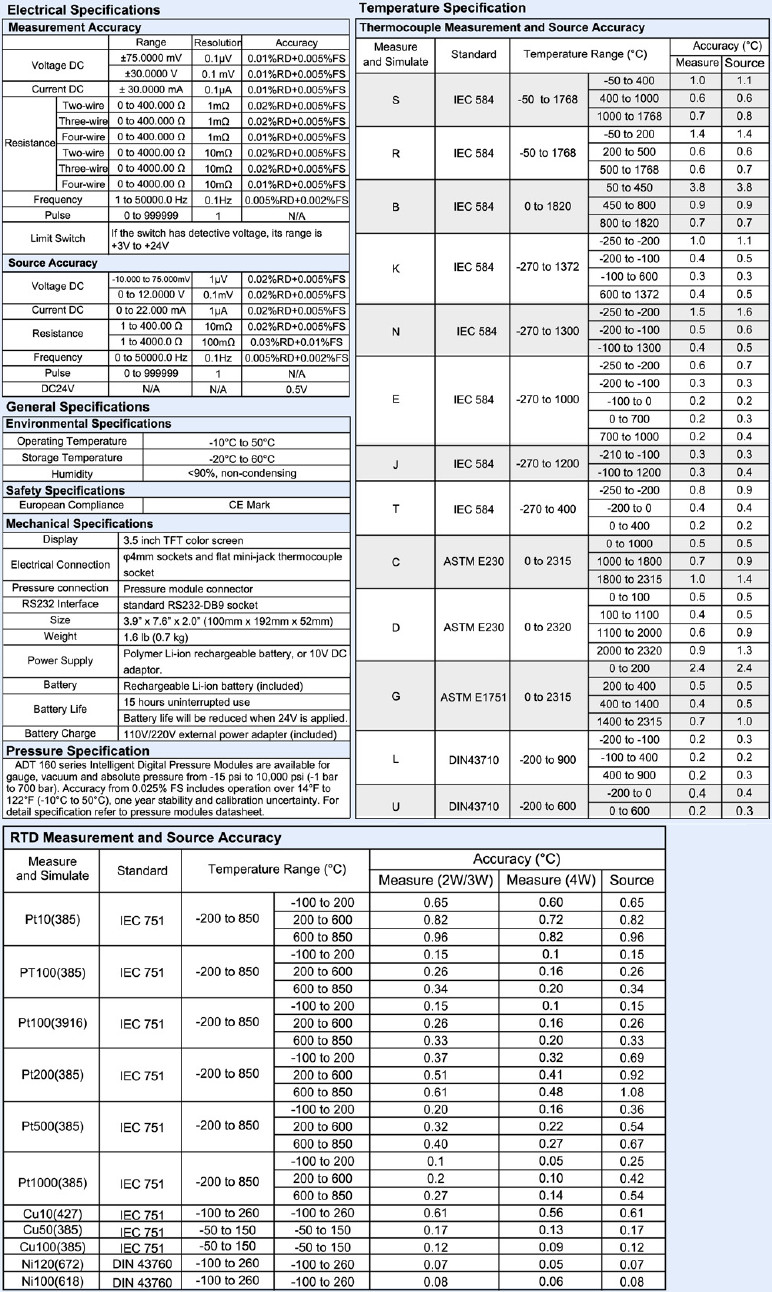

Additel ADT222A Specifications:
|
