Additel ADT 160 Intelligent Digital Pressure Module
|
Item Number: ADT160
Configuration: -N
Manufacturer: Additel Corporation
Part Number: ADT160
Product Options
* denotes required field
Additel ADT 160 Pressure Range Selection*
You must select an option for 'Additel ADT 160 Pressure Range Selection'.
Additel ADT 160 Pressure Port Type*
You must select an option for 'Additel ADT 160 Pressure Port Type'.
* Whole number only
|
|

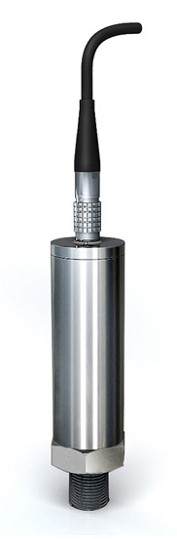

Additel ADT 160 Intelligent Digital Pressure Module
With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the ADT 160 series Intelligent Digital Pressure Module (IDPM) provides an accurate, reliable, and economic solution for wide range of pressure applications. It is loaded with functionality and remarkably easy to use. In order to reach the best performance, every silicon pressure sensor in the module has been specially aged, tested and screened before assembly. The ADT160 IDPM is unmatched in performance and reliability.
Additel ADT 160 Features:
- Gauge pressure measurement accuracy of 0.025% FS
Absolute Pressure measurement accuracy of 0.1% FS
- Pressure ranges to 10,000 psi (700 bar)
- Advanced temperature compensation
- NIST traceable calibration (optional)
Additel ADT 160 Applications:
ADT 160 series Digital Pressure Modules (IDPM) are specially designed for ADT 222A Multifunction Process Calibrators and ADT 223A Documenting Process Calibrators.

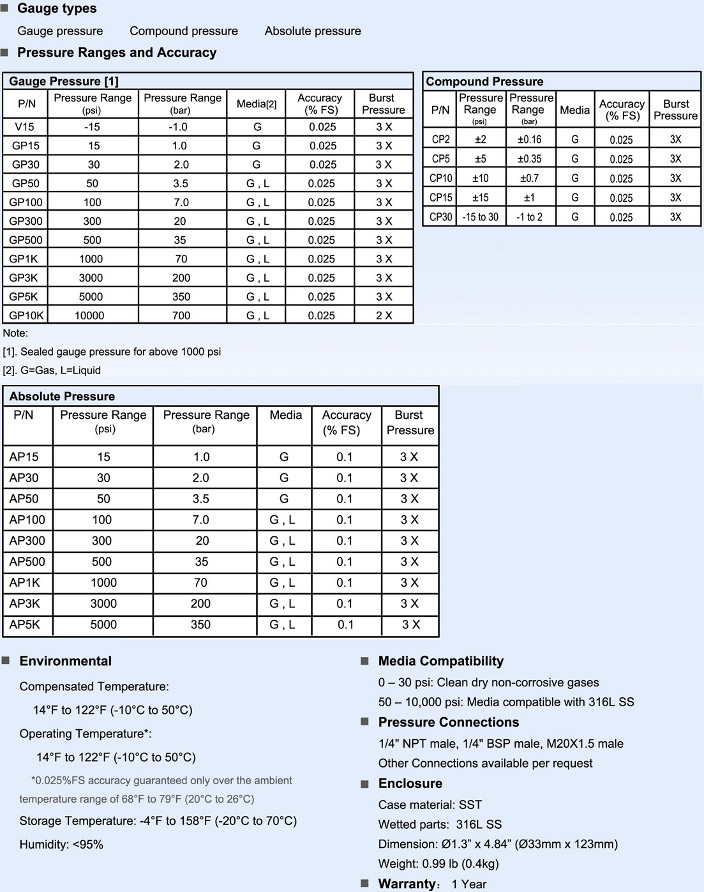

Additel ADT 160 Specifications:
This unit is also available in Bar, call (732) 632-6400 for details!
|
The ADT222A is a highly integrated multifunction calibrator featuring several patented technologies. The ADT222A is ideal for calibrating, maintaining, and troubleshooting process instrumentation.
|
The Additel ADT223A is a highly integrated multifunction calibrator featuring several patented technologies. It is a ultra-compact, rugged, easy-to-use hand-held device for sourcing, simulating and measuring pressure, temperature, and electrical signals.
|
Our Price: Starting at $10,800.00
The Additel ADT 761 pressure calibrator automatically generates and controls air pressure as you calibrate switches, gauges and transmitters. The ADT 762 is available in 3 models from low to high pressure ranges and 0,02% FS accuracy.
| |
