Additel ADT 761 Automatic Pressure Calibrator

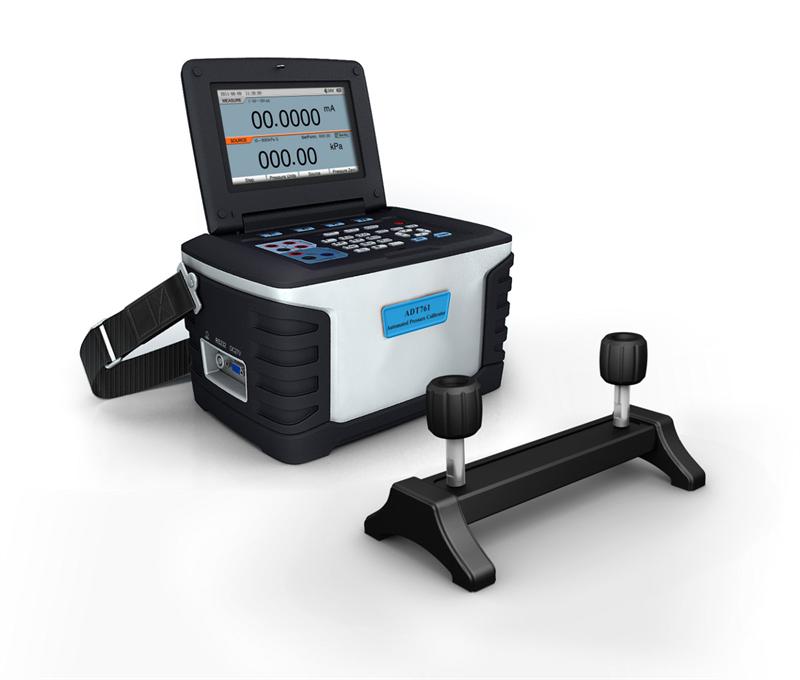

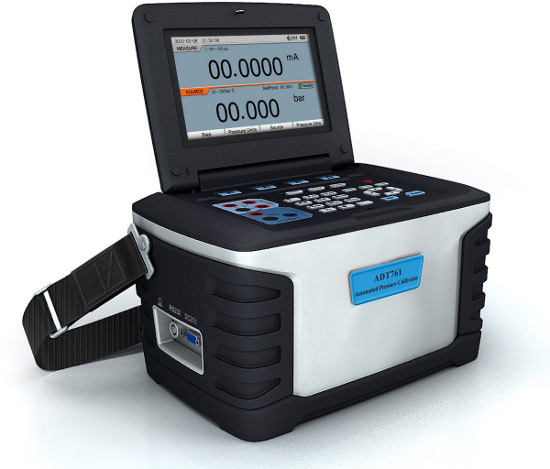

Additel ADT-761 Pressure Calibrator

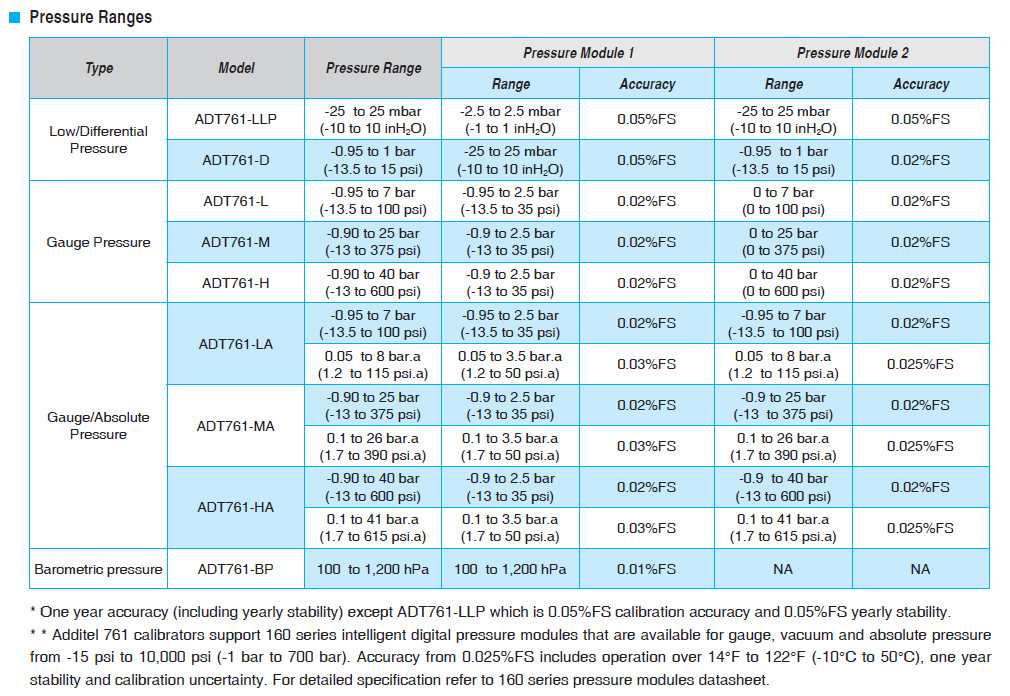

   With a built-in high performance electronic pump and precision pressure controller, the 761 series portable automated pressure calibrators provide a turn-key solution for calibration of gauges, transmitters, and switches both in the field and in the laboratory. In a portable package, this calibrator can automatically generate pressures from 90% vacuum to 600 psi (40 bar) with 0.005% FS pressure control stability and 0.02% FS accuracy. To improve the calibrator accuracy, two pressure modules with differing ranges are built-in and integrated with the internal pump and controller.

The 761-LLP is specially designed for low pressure calibration, and pressures as low as 0.01 Pa (0.00004 inH2O) can be automatically generated and controlled.

The 761-BP is designed for barometric gauge calibration. With a quartz pressure sensor, the accuracy of 761-BP can achieve 0.01%FS accuracy.

   With optional external pressure modules (160 series), the 761 can measure pressures up to 10,000 psi (700 bar) with 0.025%FS accuracy. In addition to the pressure generation, control, and measurement capabilities, the 761 also features HART communication capability, supplies 24V loop power, and reads the current or voltage produced by the pressure transducers. The 761 is a state of the art automated pressure calibrator which brings automated pressure calibration to the field.

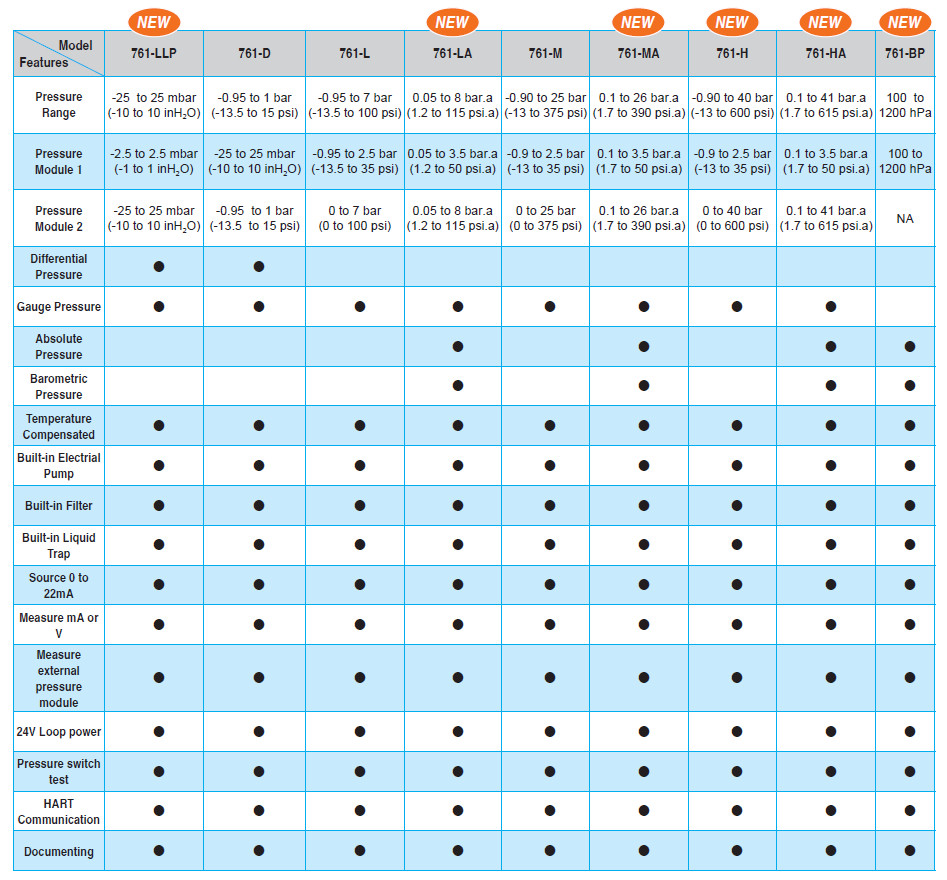

Features

Technical Specifications

Control Stability
<0.005%FS;
ADT761-LLP: < 0.05 Pa (0.0002 inH2O)
Pressure Connections
G1/8 Female on calibrator
Two 1/4NPT(or 1/2NPT, 1/4BSP, M20×1.5) female
hand-tight connectors on the external pressure
manifold (included)
External Pressure Module Connection
External pressure module connector

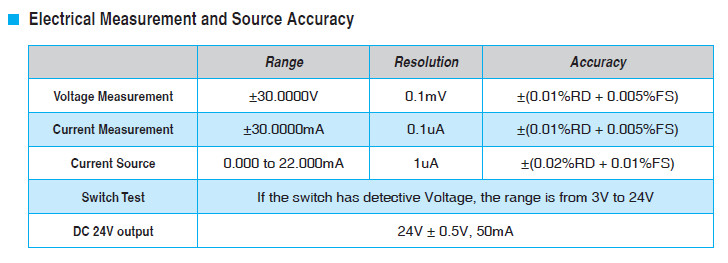

Electrical Connection
0.156 inch (4mm) banana sockets
Documenting and data logging
Task management capability
Internal memory stores 200 tasks
Download tasks and upload results
Display
7" LCD color screen (800×480)
Display rate: 5 readings per second
Pressure Units
Pa, kPa, MPa, psi, bar, mbar, inH2O@4°C,
mmH2O@4°C, inH2O@20°C, mmH2O@20°C,
inHg@0°C, mmHg@0°C, kgf/cm2, and hPa (ADT761-
BP)
Power
Battery: Rechargeable Li-ion Polymer battery (included)
Li-Battery working time: ~8 hours
Recharge time: ~3 hours
External Power: 110/220V Power adapter (DC 27 V) (Included)
Environmental Specification:
Operating temperature: 32°F to 122°F (0°C to 50°C)
Compensated Temperature: 32°F to 122°F (0°C to
50°C)
Storage temperature: -20°C to 60°C
Humidity: <90%, non-condensing
European Compliance: CE Marked
Communication
RS232 (DB9/F, environmentally sealed)
Baud rate: 2400, 4800, 9600, 19200, 38400, 57600,
115200
Data length: 7 Bits, 8 Bits
Stop bit: 1 Bit, 2 Bits
Address: from 1 to 121
Dimension
11.65" X 7.32" X 7.09"(296mm X186mm X180mm)
Weight: 12.4 lb (5.6 kg)
Warranty: 18 months

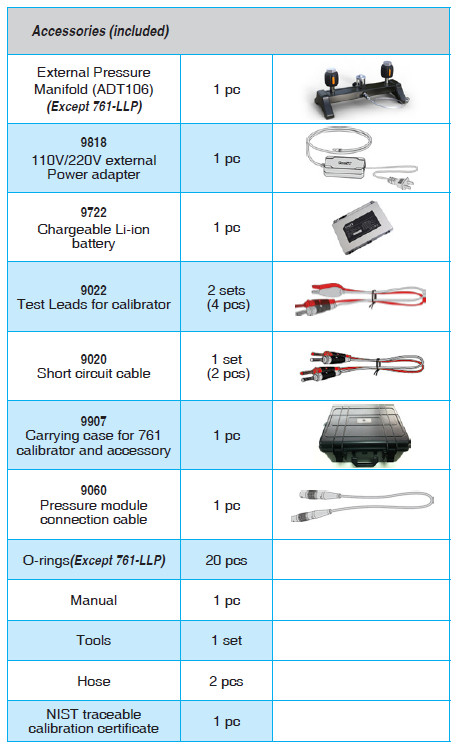

Additel ADT761 Data Sheet
