Ametek MG Type T (TSQ) Single column piston/cylinder Deadweight Tester
|
Item Number: TSQ
Configuration: -5-1AL/C
Manufacturer: Ametek (JOFRA)
Part Number: TSQ
Product Options
* denotes required field
Ametek M&G Type TSQ Range Option*
Ametek M&G Type TSQ Calibration Options*
Ametek M&G Type TSQ Pressure Medium Option*
Ametek M&G Type TSQ O-ring Option*
* Whole number only
|
|

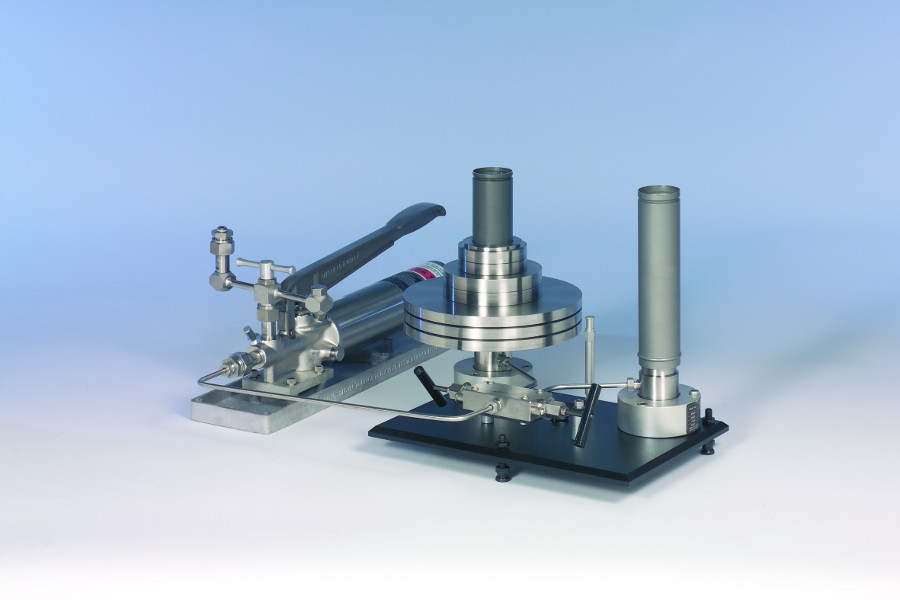

Ametek M&G Type T Deadweight Tester
*This Model is available in different Ranges, Please Call For Prices*
Single column, single piston/cylinder assembly, imperial engineering units, ±0.015% accuracy, with standard accessories, NIST traceable certification

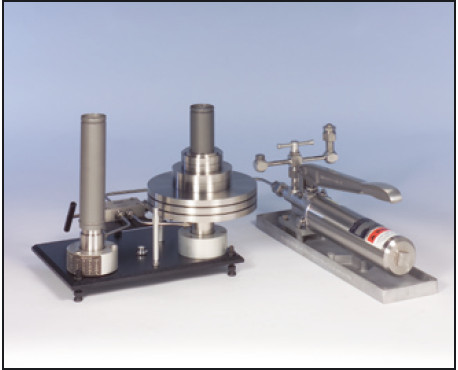

The M&G Type T Deadweight tester is available in ranges to 1,000 bar (15,000 psi). This robust tester has been engineered to withstand the
stresses of daily operation in a manufacturing environment and still maintain its accuracy and repeatability. The Type T is constructed of 300
series stainless steel and Monel and is supplied with Buna N O-rings as a standard unit. Viton and EPT O-rings are optional. This deadweight can
use a water/alcohol mix or hydraulic oils for the pressure medium.
Features
100 to 10,000 kPa (10 to 15,000 psi)
to ±0.015% of Indicated reading
Accuracy ±0.025 and 0.100% is also
available
±0.005% of Indicated reading
psi, kg/cm2, bar, kPa
- Flexible configurations to meet differing applications
- single column for field use
- dual column for lab use
- Robust construction allows for repeated daily use
- Proven in design and application to meet your needs
- Complete tester with tools, cases, and fittings
- Traceable certification supplied with each tester

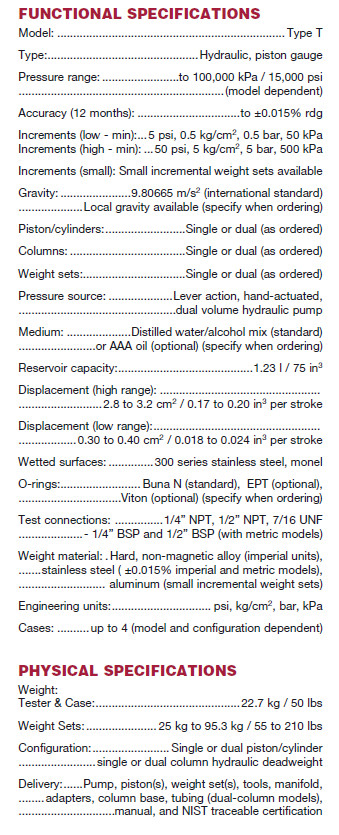

Technical Specification
|
Ametek Type T Hydraulic Pump is designed for high pressure applications up to 15,000 psi (1,000 bar). The pump and system may be ordered with either oil or a water/alcohol mixture as the pressure medium.
|
Ametek HLG single piston may be used as a primary standard instrument where a high accuracy reference measurement is needed. Standard accuracy is ±0.1% and it can also be specified with +0.05% accuracy.
|
Ametek HydraLite HLG gauge dual piston may be used as a primary standard instrument where a high accuracy reference measurement is needed. Standard accuracy is ±0.1% and it can also be specified with +0.05% accuracy.
|
Ametek M&G Type T deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. (Single column, single piston/cylinder, imperial engineering units, ±0.100% accuracy)
|
Ametek PK II Pneumatic Deadweight Tester PK2 Accurate to 0.015% of Reading, Ranges from 4 Inches of Water to 30 PSIG
|
Ametek M&G Type T deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. (Single column, dual piston/cylinder assembly, imperial engineering units, ±0.100% accuracy)
|
Ametek RK Pneumatic Deadweight Tester Accurate to 0.015% of Reading, Ranges from 4 Inches of Water to 300 PSIG
|
Ametek M&G Type DM-T deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. (Dual column, dual piston/cylinder assembly, imperial engineering units, ±0.100% accuracy)
|
Ametek HK Pneumatic Deadweight Tester Accurate to 0.025% of Reading, Ranges from 10 to 1500 PSIG
|
Ametek M&G Type DM-TQ deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. (Dual column, dual piston/cylinder assembly, imperial engineering units, dual weight sets, ±0.015% accuracy)
|
