Ametek RK Deadweight Tester
|
Item Number: RK
Manufacturer: Ametek (JOFRA)
Part Number: RK
Product Options
* denotes required field
Ametek RK Pressure Range/Units Selection*
You must select an option for 'Ametek RK Pressure Range/Units Selection'.
Ametek Deadweight Tester Accuracy Selection*
Do you want your RK Calibrated to a non-standard local gravity?*
* Whole number only
|
|
Ametek RK Deadweight Tester
The AMETEK RK Pneumatic Deadweight Tester is a primary standard that produces a pressure by applying force (weight set) over area (the ceramic ball and nozzle). The RK tester is NIST traceable and accurate to +0.05% using stainless steel weights calibrated to international standard gravity at 980.665 cm/sec2. +/-0.025% and +/-0.015% accuracy are also available.
The RK tester is self-regulating with accuracy independent of the operator. The tester utilizes a virtually frictionless ceramic ball floating on a layer of air within a stainless steel cylinder. The RK tester features a cast-metal base with a quick-leveling system for field or lab setup. The unit may also be mounted to an optional tripod for more convenient setup. The tester may be operated with the cover opened or closed. Weights are located in foam-protective slots in the case.
Features:
Standard Delivery:
- RK Tester
- Stainless Steel Weights, Range Specific
- Hard Carry Case
- NIST Traceable Calibration Certificate (Data Optional)
- User manual
Please call (732) 632-6400 to order fractional weights or carriers.

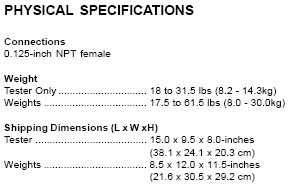

Specifications:
|
Ametek HLG single piston may be used as a primary standard instrument where a high accuracy reference measurement is needed. Standard accuracy is ±0.1% and it can also be specified with +0.05% accuracy.
|
Ametek M&G Type T deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. (Single column, single piston/cylinder, imperial engineering units, ±0.100% accuracy)
|
Ametek PK II Pneumatic Deadweight Tester PK2 Accurate to 0.015% of Reading, Ranges from 4 Inches of Water to 30 PSIG
|
Ametek M&G Type T deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. (Single column, dual piston/cylinder assembly, imperial engineering units, ±0.100% accuracy)
|
Ametek M&G Type T deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. These testers are designed to be primary pressure standards and are available in several ranges and engineering units.
|
Ametek M&G Type DM-T deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. (Dual column, dual piston/cylinder assembly, imperial engineering units, ±0.100% accuracy)
|
Ametek HK Pneumatic Deadweight Tester Accurate to 0.025% of Reading, Ranges from 10 to 1500 PSIG
|
Ametek M&G Type DM-TQ deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. (Dual column, dual piston/cylinder assembly, imperial engineering units, dual weight sets, ±0.015% accuracy)
|
