Ametek HK Deadweight Tester

Ametek HK Deadweight Tester

The AMETEK HK Pneumatic Deadweight Tester is a primary standard used to calibrate pressure and differential pressure gauges, transmitters, transducers, recorders and controllers, and that can provide a reference pressure in process control applications.

The HK tester is self-regulating with accuracy independent of the operator. These testers feature superior accuracy and repeatability and a prefill feature that minimizes the filling of large static output volumes before the test.  The HK tester is very easy to setup and use. The units precision stainless steel weights are calibrated for international specific gravity of 980.665cm/sec².

The HK tester is available in these ranges:

        10 to 300 PSIG
         10 to 500 PSG
        10 to 700 PSIG
        10 to 1000 PSIG
        10 to 1500 PSIG

Features:

• Accurate to+/-0.025% of Indicated Reading
• Five Ranges
            10 to 300 PSIG
            10 to 500 PSIG
            10 to 700 PSIG
            10 to 1000 PSIG
            10 to 1500 PSIG
• Prefill Supplied for Quick Filling Large Static Output Volumes
• NIST Traceable

Standard Delivery:

• HK Tester
• Weights Set, Range Specific
• NIST Traceable Calibration Certificate (Data Optional)
• User manual
• Please call (732) 632-6400 to order fractional weights or carriers.

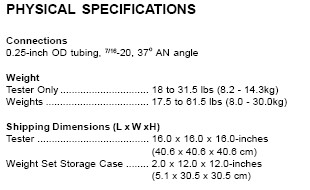

Specifications:

Ametek Jofra HK Data Sheet
