Ametek HLG HydraLite Dual Piston Deadweight Tester
|
Item Number: HLG-
Configuration: -HLG
Manufacturer: Ametek (JOFRA)
Part Number: HLG-
Product Options
* denotes required field
Ametek HLG HydraLite Base model Option*
You must select an option for 'Ametek HLG HydraLite Base model Option'.
* Whole number only
|
|

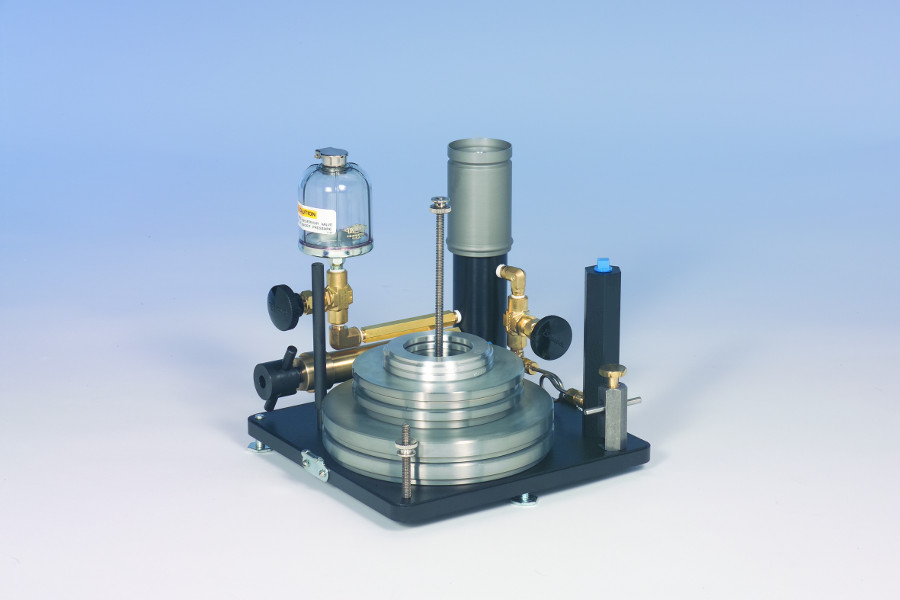

Ametek HLG HydraLite Deadweight Tester
*This Model is available in different Ranges, Please Call For Prices*
The HydraLite Hydraulic Deadweight Tester is a primary standard that features a re-entrant type measuring piston and cylinder assembly
that helps maintain accuracy as the test pressure increases. The HL Series tester is designed for rapid interchanging between
high and low pistons and is NIST traceable and accurate to ±0.05% using non-magnetic die-cast alloy or aluminum weights calibrated
to international standard gravity at 9.80665 m/s2. A compact screw pump with ratchet handle is easy-to-use. The unit is also available
as a deadweight gauge for accurate measurements and use as a comparison standard.
Features
100 to 22,500 kPa (10 to 3,000 psi)
to ±0.05% of Indicated Reading
psi, kg/cm2, bar, kPa
Models are available with dual piston/
cylinder assemblies that utilize one
weight set.

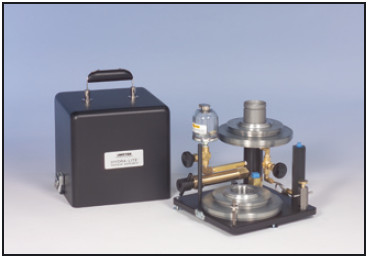

- Compact Design and Portability
The HydraLite is designed for use in the
field and is completely self-contained
within the cover of the unit.
- Includes Compact Screw Pump with Ratchet Handle
The tester models are supplied with a
convenient screw-pump as a pressure
source. This pump has a ratchet feature
that prevents the unit from depressurizing
unexpectedly.
The gauge model can be retrofitted with
the pump as an accessory.
Reduces side thrust and friction on the
measuring piston and cylinder assembly,
thus improving measurement accuracy
- Positive Over-pressure Protection
Prevents Piston Damage
All units are supplied with certifications
that are traceable to NIST.

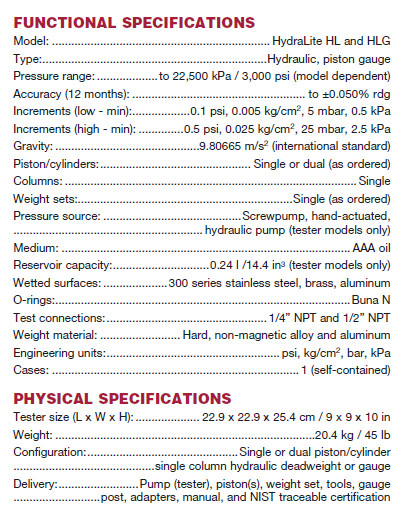

Technical Specification
|
