Ametek Type T Hydraulic Pump
|
Item Number: T
Manufacturer: Ametek (JOFRA)
Part Number: T
Product Options
* denotes required field
Ametek Type T Accessory Option*
Ametek Type T Pressure Medium Option*
Ametek Type T O-ring Option*
* Whole number only
|
|

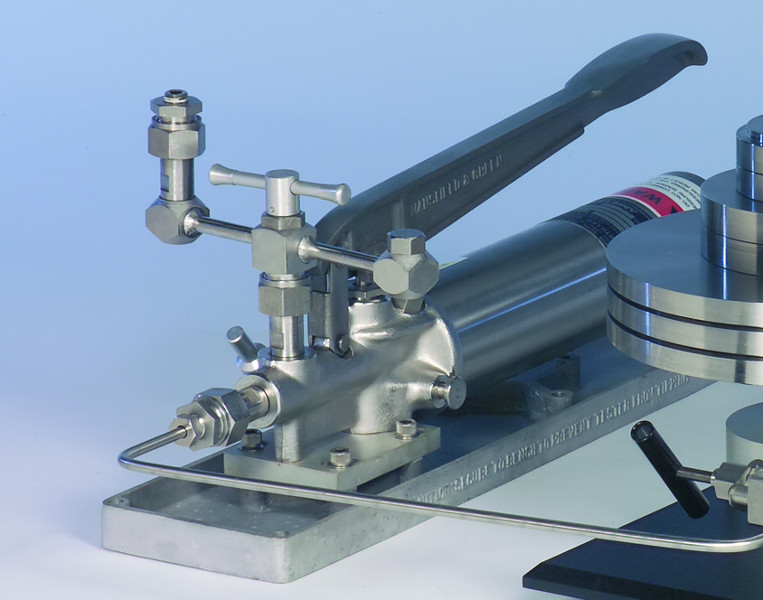

Ametek Type T Hydraulic Pump
The type T pump is designed for high pressure applications up to 15,000 psi (1,000 bar). The pump and system may be ordered with either oil or a water/alcohol mixture as the pressure medium. The pump is constructed of 300 series stainless steel and Monel allowing for the use of other hydraulic media.
Features
- Dual pressure output manifold
- Fine adjustment vernier valve
- Relief valve
- Dual volume control for rapid pressure increase at lower pressures
- Easier pumping at higher pressures.

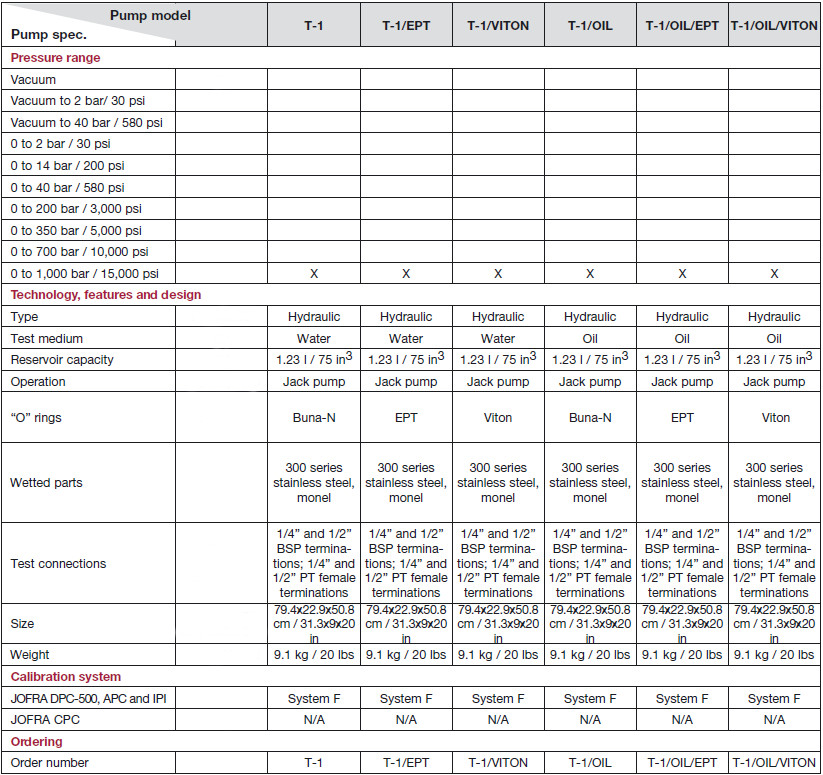

Technical Specification
|
Ametek M&G Type T deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. (Single column, single piston/cylinder, imperial engineering units, ±0.100% accuracy)
|
Ametek M&G Type T deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. (Single column, dual piston/cylinder assembly, imperial engineering units, ±0.100% accuracy)
|
Ametek M&G Type T deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. These testers are designed to be primary pressure standards and are available in several ranges and engineering units.
|
Ametek M&G Type DM-T deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. (Dual column, dual piston/cylinder assembly, imperial engineering units, ±0.100% accuracy)
|
Ametek M&G Type DM-TQ deadweight tester offers laboratory accuracy in an instrument that is designed to withstand an industrial environment. (Dual column, dual piston/cylinder assembly, imperial engineering units, dual weight sets, ±0.015% accuracy)
| |
