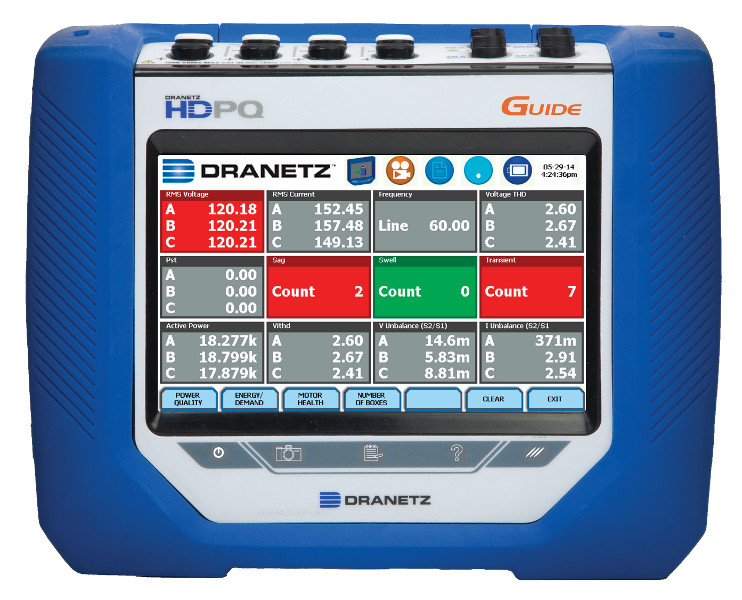

Dranetz HDPQ Guide Power Quality Monitor

• High Definition Power and Energy Analysis – 1000Vrms, AC/DC, 512 samples/cycle
• Eight independent channels, 4 voltage & 4 current
• AnswerModules – Sag directivity, PF capacitor identification, motor – automatic event categorization
• Advanced Power Quality measurements to IEC 61000-4-30 Class A & IEEE 1159

• Harmonics Analysis to meet IEC 61000-4-7 and IEEE 519
• Transient capabilities – V & I – waveshape triggers. Beyond standards
• Perform advanced power measurements to IEEE 1459

• 10,000 cycle pre/post trigger buffer
• Meet EN 50160 Ed 3
• Various CTs available for most current ranges


• Modern communication via Ethernet, Wi-Fi, USB, Bluetooth
• Use VNC for full remote control
• Apple iphone/Pad & Android apps with real time metering and alarm dashboard
• Enhanced Dranetz tech support

• Arc Flash Safety
• UL listed and CE approved
• Durable and rugged enclosure with an easy to grip, shock absorbing , non-conductive boot
• Dropped tested to six feet so let 'em drop it off that ladder!

• Power supply cable retainer
• Integrated test lead managment system

• Automatic circuit detection indicates when the unit is mis-wired thus avoiding incorrect readings and unsafe conditions


• Huge 7” color touch screen
• Automatic setups  for commong PQ testing

• Tablet-like Icon driven interface with taskbar shortcuts and alarm dashboard

(4) Differential Voltage: 16 bit resolution

• 0-1000Vrms, AC/DC, +/- 0.1% reading +/- 0.05% FS
• IEC 61000-4-30 Class A: 40-1000Vrms, ±0.1 % of Udin, range of 10% ~ 150% of Udin
• Transients – High Speed: 10-2000Vpk, +/- 10% of reading, +/- 0.5%FS
• Transients – rms: 0-1400Vpk, ±0.2 % of Udin

(4) Current (rms): 512 s/c, 16 bit resolution

• Range probe dep., AC/DC, +/- 0.1% reading +/- 0.05% FS, ±0.2 % of Udin
• Transients – High Speed: Range probe dep., 10% of Reading, +/- 0.5%FS
• Transients – rms: Range probe dep., ±0.2 % of Udin

Frequency: 10 sec window
16-25Hz, 41-69Hz, +/- 0.01HzCalculated Parameters

Calculated Parameters

Power/Energy – 1 Second sampling
Real Power (W) – P: meets 0.2S requirements, range probe dep.
Apparent Power (VA) – S: meets 0.2S requirements, range probe dep.
Reactive Power (var) – Q: meets 0.2S requirements, range probe dep.
Power Factor (W/VA) -”true” 1 to 0 to 1
Displacement PF 1 to 0 to 1
Demand (in W): meets 0.2S requirements, range probe dep.
Energy (in Wh): meets 0.2S requirements, range probe dep.

Distortion – 200ms, 3 sec, 10 min windows
Vthd: 0-100%, +/- 5% for V>=1% Vnom,
V Ind Harm: DC, 2-127, +/- 5% for V>=1% Vnom
Ithd: 0-100%, +/- 5% for V>=1% Vnom,
I Ind Harm: DC, 2-63, +/- 5% for V>=1% Vnom

Misc.
Pst – 10 minutes: 0.2-10, +/- 0.05 @ Pst=1
Plt – 2 hours: 0.2-10, +/- 0.05 @ Pst=1

Compliance with the following standards:

Power Quality:  IEC 61000-4-30 Class A: Edition 2 (2008)* & IEEE 1159: 2009
* Future firmware upgrade to Edition 3

Power:  IEEE 1459: 2000

Harmonics: IEC 61000-4-7 Class 1: Edition 2 (2008) & IEEE 519: 2014

Voltage Flicker: IEC 61000-4-15: Edition 2 (2010) & IEEE 1453: 2011

Compliance/Testing: EN 50160: 2010

General Specifications

Size (HxWxD) in inches and cm
Weight: 2 kg, 4.3lbs
Operating temperature: 0 to 50 deg C
Storage temperature: -20 to 60 deg C
Humidity: 0-95% non condensing
Clock accuracy and resolution

• Internal: +/- 1 sec/day at 25deg C
• NTP: +/-10 msec
• GPS: +/-1 msec

AC Adapter: 100-240Vac 50/60Hz
Battery capacity and charge time: 3 hours run time on full charge
Memory size: 4GB
Display: 7” WVGA color graphic, Icon based touch LCD, LED Backlit
Languages: English, German, Spanish, French, Italian, Swedish,

Communications

Ethernet, 802.11 b/g/n Wireless
USB On the Go
Bluetooth via USB adapter
VNC remote control
Android & Apple App

Ease of Use Features

Automatic Setups
Pre-programmed monitoring modes
AnswerModules®- Sag/Dip directivity, PF Cap, Motor
Dashboards , PQ, Demand & Energy
Simultaneous PQ, Demand & Energy
Mini Report

Available packages

With CT’s:

• HDPQ-GA10PKG – 10A clamp package (qty (4) TR2510B)
• HDPQ-GA500PKG – 50A clamp package (qty (4) TR2500B)
• HDPQ-GA550PKG – 100A clamp package (qty (4) TR2550B)
• HDPQ-GAFLEX3KPKG – 3000A/24” FLEX package (qty (1) DRANFLEX3003XLB24, qty (1) DRANFLEX3000XLB24)
• HDPQ-GAFLEX6KPKG – 6000A/24” FLEX package (qty (1) DRANFLEX6003XLB24, qty (1) DRANFLEX6000XLB24)
• HDPQ-GAMFLEX6PKG – 300A/6” Micro FLEX package (qty (4) DRANFLEX300MHB6)

Each CT package above includes: (1) Dranetz HDPQ Guide, (1) DV7E-PX, (1) SCC-HDPQ soft carry case and the specified CT’s
