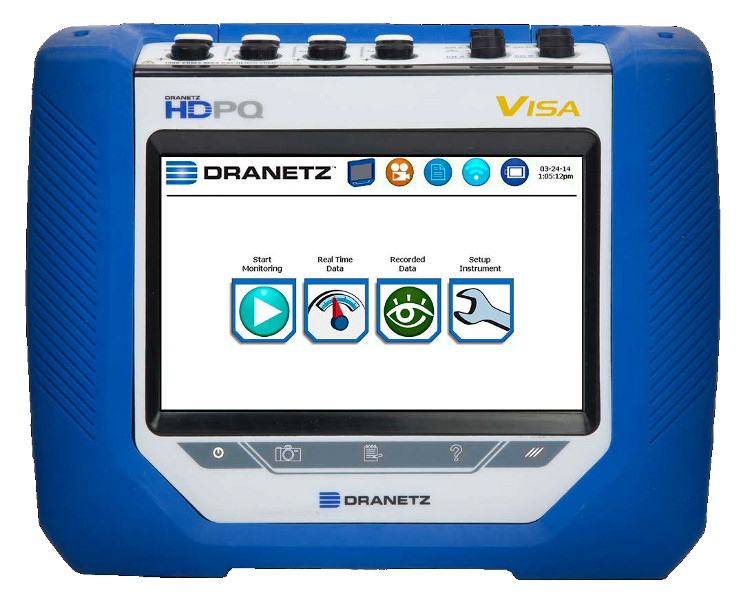

Dranetz HDPQ Visa Power Quality Meter Recorder
|
Item Number: HDPQ-VAPKG
Manufacturer: Dranetz
Part Number: HDPQ-VAPKG
Product Options
* denotes required field
Dranetz HDPQ Visa Package Selection*
You must select an option for 'Dranetz HDPQ Visa Package Selection'.
* Whole number only
|
|
Dranetz HDPQ Visa Power Quality Monitor
The HDPQ Visa offers the best bang for your buck in a Power Quality analyzer. It combines the state-of-the-art power monitoring capabilities with the ‘best in class’ communication capabilities to provide a revolutionary monitoring instrument. With the HDPQ Visa your technicians will be able to review data and change settings remotely from virtually any smartphone, tablet, mobile device, as well as a PC and MAC laptops or desktop system.
Features
Precision
- High Definition Power Monitoring – 1000Vrms, AC/DC, 512 samples/cycle
- Eight unique channels, 4 voltage & 4 current
- Compliant to IEC 61000-4-30 Class A & IEEE 1159
- Anallyze Harmonics to IEC 61000-4-7 & IEEE 519
- Capture transient events – V & I – waveshape triggers, exceeds standards
- 100 cycle pre/post trigger buffer
- EN 50160 Ed 3
- Motor AnswerModule
Communications
- Up to date communications: Ethernet, USB, Optional Bluetooth
- VNC for full remote control
- Apple & Android apps with real time metering and alarm Dashboard
- Enhanced Dranetz tech support
Safe & Rugged
- Arc Flash Safety
- UL listed and CE approved
- Rugged housing with an easy to grip, shock absorbing , non-conductive boot
- Dropped tested to six feet
- Power supply cable retainer
- Test lead management system
- Automatic circuit detection ensures the instrument is wired properly
User Interface
- Large 7” color touch display
- Automatic setups for common power analysis
- Familiar tablet-like graphic interface; Icon driven, taskbar shortcuts, Dashboard
Productivity
• Mini-Report – Screen snapshots, XML file. Easily uploaded and email to the boss • PQ & energy Dashboard’s for real time alarming • Bigger display for more productive local analysis • Dran-View 7 - Data analysis - Reporting - Rescue kit - Post processing
Applications
- Power Quality Surveys and Diagnostics
- Energy management
- Load surveys
- Data logging
- Harmonic analysis
- Compliance testing
- Flicker testing
- Alternative energy system analysis with Solar, Wind – Panel strings, batteries, inverters, grid interconnect
- Capacitor testing
Technical Specifications
Measured Parameters
(4) Differential Voltage: 16 bit resolution
- 0-1000Vrms, AC/DC, +/- 0.1% reading +/- 0.05% FS
- IEC 61000-4-30 Class A: 40-1000Vrms, ±0.1 % of Udin, range of 10% ~ 150% of Udin
- Transients – High Speed: 10-2000Vpk, +/- 10% of reading, +/- 0.5%
- FS Transients – rms: 0-1400Vpk, ±0.2 % of Udin
(4) Current (rms): 512 s/c, 16 bit resolution
- Range probe dep., AC/DC, +/- 0.1% reading +/- 0.05% FS, ±0.2 % of Udin
- Transients – High Speed: Range probe dep., 10% of Reading, +/- 0.5%FS
- Transients – rms: Range probe dep., ±0.2 % of Udin
Frequency: 10 sec window
- 16-25Hz, 41-69Hz, +/- 0.01Hz
Calculated Parameters
Power/Energy – 1 Second sampling
Real Power (W) – P: meets 0.2S requirements, range probe dep.
Apparent Power (VA) – S: meets 0.2S requirements, range probe dep.
Reactive Power (var) – Q: meets 0.2S requirements, range probe dep.
Power Factor (W/VA) -”true” 1 to 0 to 1
Displacement PF 1 to 0 to 1
Demand (in W): meets 0.2S requirements, range probe dep.
Energy (in Wh): meets 0.2S requirements, range probe dep.
Distortion – 200ms, 3 sec, 10 min windows
Vthd: 0-100%, +/- 5% for V>=1% Vnom,
V Ind Harm: DC, 2-127, +/- 5% for V>=1% Vnom
Ithd: 0-100%, +/- 5% for V>=1% Vnom,
I Ind Harm: DC, 2-63, +/- 5% for V>=1% Vnom
Misc.
Pst – 10 minutes: 0.2-10, +/- 0.05 @ Pst=1
Plt – 2 hours: 0.2-10, +/- 0.05 @ Pst=1
Standards Compliance
Power Quality
IEC 61000-4-30 Class A: Edition 2 (2008)*
IEEE 1159: 2009
* Future firmware upgrade to Edition 3
Power
IEEE 1459: 2000
Harmonics
IEC 61000-4-7 Class 1: Edition 2 (2008)
IEEE 519: 2014
Voltage Flicker
IEC 61000-4-15: Edition 2 (2010)
IEEE 1453: 2011
Compliance/Testing
EN 50160: 2010
General Specifications
Size (HxWxD) in inches and cm: Weight: 2 kg, 4.3lbs
Operating temperature: 0 to 50 deg C
Storage temperature: -20 to 60 deg C
Humidity: 0-95% non condensing
Clock accuracy and resolution
- Internal: +/- 1 sec/day at 25deg C
- NTP: +/-10 msec
- GPS: +/-1 msec
AC Adapter: 100-240Vac 50/60Hz
Battery capacity and charge time: 3 hours run time on full charge
Memory size: 4GB
Display: 7” WVGA color graphic, Icon based touch LCD, LED Backlit
Languages: English, German, Spanish, French, Italian, Swedish, Finnish, Polish, Chinese (traditional and simplified), Thai, Korean
Communications
USB On the Go
VNC remote control
Android & Apple Apps
Ease of Use Features
Automatic Setups
Pre-programmed monitoring modes
Dashboards – PQ, Demand & Energy
Simultaneous PQ, Demand & Energy
Mini-Report
Available packages
With CT’s:
- HDPQ-VA10PKG – 10A clamp package (qty (4) TR2510B)
- HDPQ-VA500PKG – 500A clamp package (qty (4) TR2500B)
- HDPQ-VA550PKG – 100A clamp package (qty (4) TR2550B)
- HDPQ-VAFLEX3KPKG – 3000A/24” FLEX package (qty (1) DRANFLEX3003XLB24, qty (1) DRANFLEX3000XLB24)
- HDPQ-VAFLEX3KPKG – 6000A/24” FLEX package (qty (1) DRANFLEX6003XLB24, qty (1) DRANFLEX6000XLB24)
- HDPQ-VAMFLEX6PKG – 300A/6” Micro FLEX package (qty (4) DRANFLEX300MHB6)
Each CT package above includes: (1) Dranetz HDPQ Visa, (1) DV7P-PX, (1) SCC-HDPQ soft carry case and the specified CT’s
|
The Dranetz HDPQ Guide frequencies are 16-25Hz, 42.5-69Hz, +/- 0.01Hz.
|
The Dranetz HDPQ Xplorer features the best in class power quality monitoring capabilities available. It complies with industry standards; IEC 61000-4-30 Class A, IEC 61000-4-7, IEEE 1159, IEEE 519, IEEE 1459. Capture and view transient events with ease.
|
