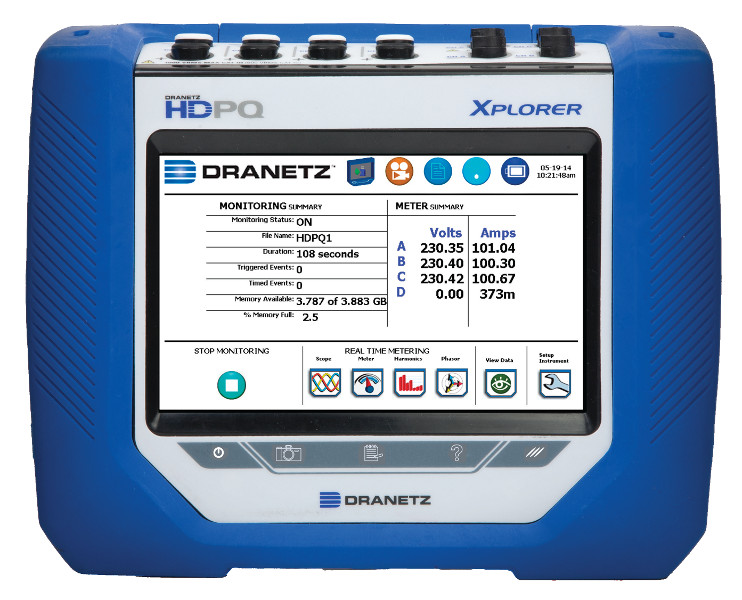

Dranetz HDPQ Xplorer Power Quality Analyzing Monitor
|
Item Number: HDPQ-XAPKG
Manufacturer: Dranetz
Part Number: HDPQ-XAPKG
Product Options
* denotes required field
Dranetz HDPQ Xplorer Package Selection*
You must select an option for 'Dranetz HDPQ Xplorer Package Selection'.
* Whole number only
|
|
Dranetz HDPQ Xplorer Power Quality Analyzer
The Dranetz HDPQ Xplorer Power Quality System Analyzer includes the same features of the Dranetz HDPQ Visa and Guide instruments, with the addition of high speed transient capture capabilities. The HDPQ Xplorer PQ analyzer meets IEC 61000-4-30 Class A, IEC 61000-4-7, IEEE 1159, IEEE 519, IEEE 1459, and other industry standards. The HDPQ Xplorer's 8-channel inputs simultaneously captures and analyzes thousands of parameters by using a range of standard and user defined operating modes. The Xplorer's measurement capabilities include capture of varying frequency transients through peak, waveshape, true rms duration and adaptive high-speed sampling, as well as common power measurements to clearly characterize harmonics anomalies, non-sinusoidal and unbalanced systems.
Features
Precice and Advanced
- High Definition Power & Energy Monitoring – 1000Vrms, AC or DC, 512 samples/cycle
- High Speed Digitized of system transients to 1micro-sec and to 2000 Volts peak
- Record up to 8 channels, 4 voltage & 4 AC or DC current
- AnswerModules allow Sag directivity, PF capacitor identification, motor – automatic event analysis
- Metts IEC 61000-4-30 Class A & IEEE 1159 compliant design
- Analyze Harmonics per IEC 61000-4-7 and IEEE 519
- Capture Voltage and Current Transient with waveshape triggers, going beyond standards standards
- Perform advanced power measurements to IEEE 1459
- 10,000 cycle pre/post trigger buffer
- Meets EN 50160 Ed 3
Communications and ease of use
- Uses todays standards: Ethernet, Wi-Fi, USB, Bluetooth
- VNC for full remote control
- An App for Apple & Android features real time metering and alarm Dashboard
- Enhanced Dranetz tech support
Safe & Durable
- Arc Flash Safety
- UL listed and CE approved
- Ruggedly designed enclosure features easy to grip, shock absorbing , non-conductive boot
- Dropped tested to six feet
- Power supply cable retainer
- Wire management system
- Automatic circuit detection notifies user when the meter is not wired properly
User Interface
- 7” WVGA color touch display
- Automatic setups – PQ, D&E
- Tablet-like GUI, Features: Icon driven, taskbar shortcuts, Dashboard
Productivity
- Mini-report – Screen snapshots, XML file. Easily uploaded and emailed!
- PQ & energy Dashboard’s for real time alarming
- Bigger display for more productive local analysis
- AnswerModules – automatic event categorization
- Dran-View 7
- Data analysis and reporting
- Rescue kit
- Post processing
Applications
- Power Quality Surveys and System Troubleshooting
- Energy Power surveys
- Motor testing & diagnosis
- Fault recording
- Transient recording and analysis
- Inrush testing for transformers, motors, etc.
- Energy management & load surveys
- Data logging
- Harmonics analysis
- Advanced load distortion and imbalance
- Alternative energy applications – Solar, Wind – Panel strings, batteries, inverters, grid interconnect, forward & reverse energy flow
- Compliance testing
- Flicker testing
- Capacitor testing
Technical Specifications
Measured Parameters
(4) Differential Voltage: 512 s/c (1MHZ for HS Trans.), 16 bit resolution
- 0-1000Vrms, AC/DC, +/- 0.1% reading +/- 0.05% FS
- IEC 61000-4-30 Class A: 40-1000Vrms, ±0.1 % of Udin, range of 10% ~ 150% of Udin
- Transients – High Speed: 10-2000Vpk, +/- 10% of reading, +/- 0.5%FS
- Transients – rms: 0-1400Vpk, ±0.2 % of Udin
(4) Current (rms): 512 s/c (1MHZ for HS Trans.), 16 bit resolution
- Range probe dep., AC/DC, +/- 0.1% reading +/- 0.05% FS, ±0.2 % of Udin
- Transients – High Speed: Range probe dep., 10% of Reading, +/- 0.5%FS
- Transients – rms: Range probe dep., ±0.2 % of Udin
Frequency: 10 sec window
- 16-25Hz, 41-69Hz, +/- 0.01Hz
Calculated Parameters
Power/Energy – 1 Second sampling
Real Power (W) – P: meets 0.2S requirements, range probe dependent
Apparent Power (VA) – S: meets 0.2S requirements, range probe dependent
Reactive Power (var) – Q: meets 0.2S requirements, range probe dependent
Power Factor (W/VA) -”true” 1 to 0 to 1
Displacement PF 1 to 0 to 1
Demand (in W): meets 0.2S requirements, range probe dep.
Energy (in Wh): meets 0.2S requirements, range probe dep.
Distortion – 200ms, 3 sec, 10 min windows
Vthd: 0-100%, +/- 5% for V>=1% Vnom,
V Ind Harm: DC, 2-127, +/- 5% for V>=1% Vnom
Ithd: 0-100%, +/- 5% for V>=1% Vnom,
I Ind Harm: DC, 2-63, +/- 5% for V>=1% Vnom
Misc.
Pst – 10 minutes: 0.2-10, +/- 0.05 @ Pst=1
Plt – 2 hours: 0.2-10, +/- 0.05 @ Pst=1
Standards Compliance
Power Quality IEC 61000-4-30 Class A: Edition 2 (2008)*
IEEE 1159: 2009
* Future firmware upgrade to Edition 3
Power
IEEE 1459: 2000
Harmonics
IEC 61000-4-7 Class 1: Edition 2 (2008)
IEEE 519: 2014
Voltage Flicker
IEC 61000-4-15: Edition 2 (2010) IEEE 1453: 2011
Compliance/Testing
EN 50160: 2010
General Specifications
Size (HxWxD) in inches and cm
Weight: 2 kg, 4.3lbs
Operating temperature: 0 to 50 deg C
Storage temperature: -20 to 60 deg C
Humidity: 0-95% non condensing
Clock accuracy and resolution
Internal: +/- 1 sec/day at 25deg C
NTP: +/-10 msec
GPS: +/-1 msec
AC Adapter: 100-240Vac 50/60Hz
Battery capacity and charge time: 3 hours run time on full charge
Memory size: 4GB
Display: 7” WVGA color graphic, Icon based touch LCD, LED Backlit
Languages: English, German, Spanish, French, Italian, Swedish, Finnish, Polish, Chinese (traditional and simplified), Thai, Korean
Communications
Ethernet, 802.11 b/g/n Wireless
USB On the Go
Bluetooth via USB adapter
VNC remote control Android & Apple App
Ease of Use Features
Automatic Setups
Pre-programmed monitoring modes
AnswerModules®- Sag/Dip directivity, PF Cap, Motor
Dashboards , PQ, Demand & Energy
Simultaneous PQ, Demand & Energy
Mini Report
Available packages
With CT’s:
- HDPQ-XA10PKG – 10A clamp package (qty (4) TR2510B)
- HDPQ-XA500PKG – 50A clamp package (qty (4) TR2500B)
- HDPQ-XA550PKG – 100A clamp package (qty (4) TR2550B)
- HDPQ-XAFLEX3KPKG – 3000A/24” FLEX package (qty (1) DRANFLEX3003XLB24, qty (1) DRANFLEX3000XLB24)
- HDPQ-XAFLEX6KPKG – 6000A/24” FLEX package (qty (1) DRANFLEX6003XLB24, qty (1) DRANFLEX6000XLB24)
- HDPQ-XAMFLEX6PKG – 300A/6” Micro FLEX package (qty (4) DRANFLEX300MHB6)
Each CT package above includes: (1) Dranetz HDPQ Xplorer, (1) DV7E-PX, (1) SCC-HDPQ soft carry case and the specified CT’s
|
The Dranetz HDPQ Visa power analyzer enables users to review power measurement data and change settings remotely from virtually any smartphone device. The HDPQ Visa provides high definition PQ & Energy Monitoring from 1000Vrms AC/DC and 512 samples/cycle
|
The Dranetz HDPQ Guide frequencies are 16-25Hz, 42.5-69Hz, +/- 0.01Hz.
|
