Amprobe AM-530 True-rms Electrical Contractor Multimeter
|
Item Number: AM-530
Manufacturer: Amprobe
Part Number: AM-530
* Whole number only
|
|
Amprobe AM-530 True-rms Electrical Contractor Multimeter
The Amprobe AM-530 True-rms Electrical Contractor Multimeter is the fully-featured multimeter of choice for the professional electrical contractor. Measure and verify presence of voltage in order to connect equipment or to perform repairs, run new wiring, check continuity of electrical connections, identify blown fuses, troubleshoot motors or check transformers. The AM-530 is true-rms sensing to accurately measure voltage on systems affected by harmonics as well as a built-in flashlight to detect wire colors in the dark, a “third hand probe holder and VolTect ™ non-contact voltage detection.
Features
- Voltage up to 750V ac and 1000V dc, ac/dc current, resistance, frequency, capacitance, and temperature.
- CAT III 600V, CAT II 1000V
- True-rms
- VolTect™ Non-contact voltage detection
- Audible continuity
- Diode test
- Data hold
- Max/min memory
- Relative zero mode
- Built-in flashlight and back lit LCD display with analog bar graph
- Built-in test leads storage and “third hand test lead holder
- Auto and manual ranging
- Auto power off
- Low battery warning

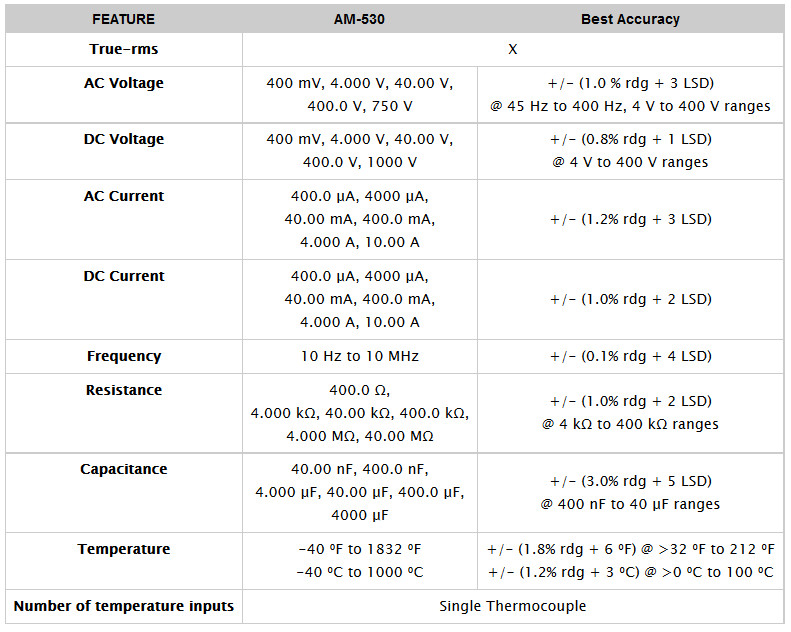

Technical Specifications
|
Amprobe AM-500 is one of the most affordable autoranging multimeters available. Install, troubleshoot or repair light fixtures, fans, appliances, or automotive electrical problems with ease and safety of a CAT III 600V rated product.
|
Amprobe AM-510 Commercial/Residential Multimeter is designed for light commercial and advanced residential applications.
|
Amprobe AM-520 HVAC Multimeter is complete with key functions such as temperature, micro amps used for flame sensor troubleshooting and capacitance to check motor startup capacitors.
|
Amprobe AM-560 measures a complete range of electrical parameters and key functions such as dual thermocouples for taking differential temperature measurements.
|
Amprobe AM-570 is the best multimeter in its class designed for professional electricians who need to maintain service or troubleshoot advanced electrical systems in the most demanding environments.
| |
