Amprobe AM-570 Industrial Multimeter

Amprobe AM-570 Industrial Multimeter

The Amprobe AM-570 is the best multimeter in its class designed for professional electricians who need to maintain service or troubleshoot advanced electrical systems in the most demanding environments. Packed full of features such as true-rms, dual thermocouples for taking differential temperature measurements, a low impedance function to detect stray voltage, and a low pass filter to accurately take measurements on variable frequency drives, the Amprobe AM-570 Digital Multimeter allows for quick go-no-go checks without the need for an additional tool.



Features

• AC/DC Voltage up to 1000V, ac/dc current, resistance, frequency, capacitance, temperature, duty cycle.
• CAT IV 600V, CAT III 1000V
• Low Z - to detect stray voltages
• Low pass filter for variable frequency drives
• VolTect Plus™ Non-contact voltage detection
• Audible continuity
• Diode test
• Dual reading backlit LCD display with analog bar graph
• Data hold
• Max/min memory
• Peak hold (crest)
• Relative zero mode
• Built-in flashlight
• Built-in test leads storage and “third hand" holder
• Warning against improper test leads connection
• Auto and manual ranging
• Auto power off
• Low battery warning

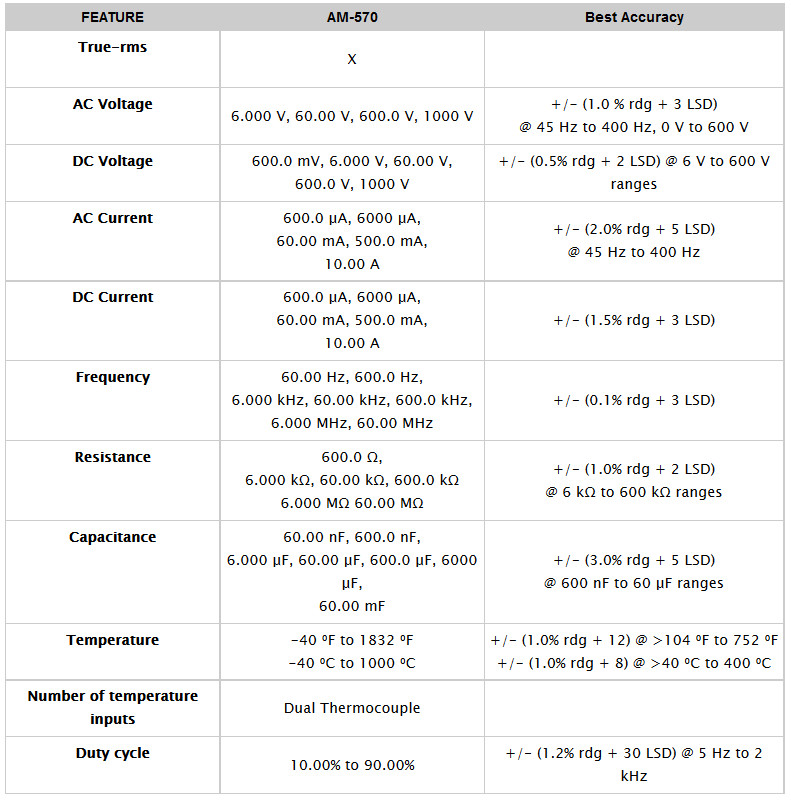

Technical Specifications
