Amprobe AM-560 Advanced HVAC Multimeter
|
Item Number: AM-560
Manufacturer: Amprobe
Part Number: AM-560
* Whole number only
|
|
Amprobe AM-560 Advanced HVAC Multimeter
The AM-560 Advanced HVAC Multimeter is specifically designed for the more demanding HVAC applications. The AM-560 measures a complete range of electrical parameters and key functions such as dual thermocouples for taking differential temperature measurements, low pass filter to take accurate measurements on variable frequency drives and capacitance to check motor startup capacitors. It also features micro amps for flame sensor troubleshooting, and a complete range of electrical parameters. With built-in flashlight and VolTect ™ non-contact voltage detection, the AM-560 is the choice multimeter for a professional HVAC technician.
Features
- AC/DC Voltage up to 1000V, AC/DC current, resistance, frequency, capacitance, temperature, duty cycle.
- CAT IV 600V, CAT III 1000V
- Dual thermocouple to take simultaneous temperature readings on low and high side of an HVAC system
- Low pass filter for variable frequency drives
- VolTect Plus™ Non-contact voltage detection
- Audible continuity
- Diode test
- Dual reading backlit LCD display with analog bar graph
- Data hold
- Max/min memory
- Peak hold (crest)
- Relative zero mode
- Built in work light
- Built in test leads storage and “third hand" test lead holder
- Warning against improper test leads connection
- Auto and manual ranging
- Auto power off and low battery warning
Technical Specifications
|
Amprobe AM-500 is one of the most affordable autoranging multimeters available. Install, troubleshoot or repair light fixtures, fans, appliances, or automotive electrical problems with ease and safety of a CAT III 600V rated product.
|
Amprobe AM-510 Commercial/Residential Multimeter is designed for light commercial and advanced residential applications.
|
Amprobe AM-520 HVAC Multimeter is complete with key functions such as temperature, micro amps used for flame sensor troubleshooting and capacitance to check motor startup capacitors.
|

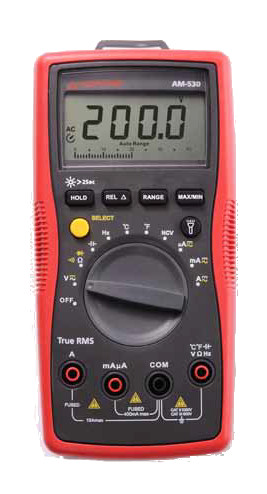

Amprobe AM-530 True-rms Electrical Contractor Multimeter is the fully-featured multimeter of choice for the professional electrical contractor.
|
Amprobe AM-570 is the best multimeter in its class designed for professional electricians who need to maintain service or troubleshoot advanced electrical systems in the most demanding environments.
| |
