Rotronic CP11 Handheld Indoor Air Quality Meter
|
Item Number: CP11
Manufacturer: Rotronic
Part Number: 1600.CP11
* Whole number only
|

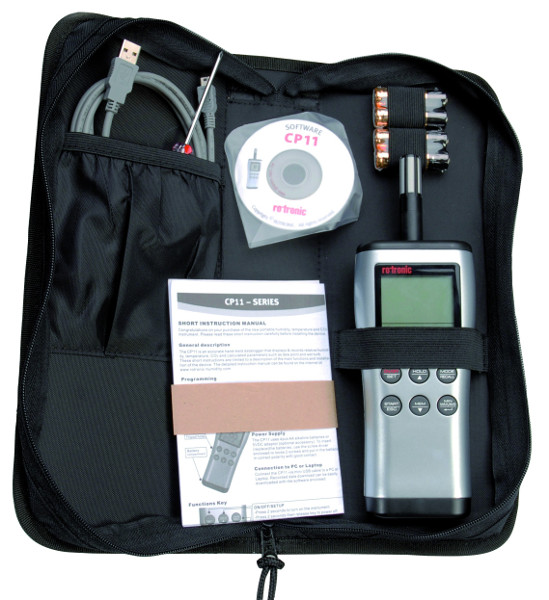

 Rotronic CP11 Handheld Indoor Air Quality Meter Rotronic CP11 shown with Carry Case, Log Express Software, & USB Cable |
|

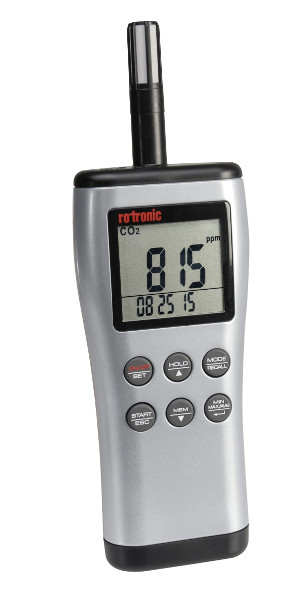

Rotronic CP11 Handheld Indoor Air Quality Meter
The CP11 is the most recent improvement of an economical multiple parameter meter that all the while measures and records CO2, humidity and temperature. The CP11 is also capable of calculating the dew point and wet bulb temperature. Equipped with the field-tested ROTRONIC HYGROMER® IN-1 humidity sensor, this instrument offers top notch esteem for cash. The CP11 includes the ROTRONIC SW2.1 software which can be utilized to program, download data and save logged files.
Features
- Measures and logs CO2, relative humidity and temperature
- Calculates the dew point
- Hygromer® IN-1 humidity sensor
- 18,000 data point memory for CO2, humidity and temperature values
- Maximum, minimum and average value display
- Adjustable audible CO2 alarm
- Display with backlight
- Adjustable auto power off function
- Mini USB interface
Applications

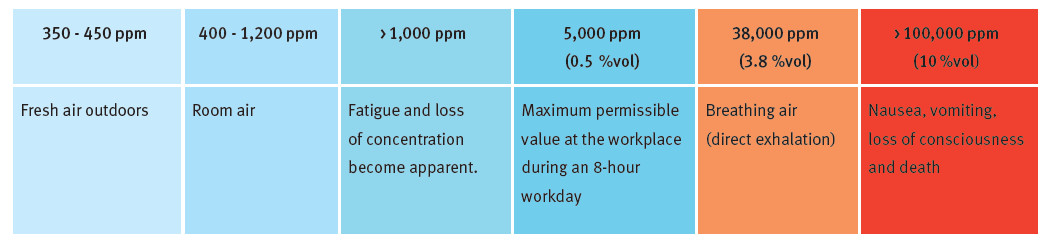

Guidelines

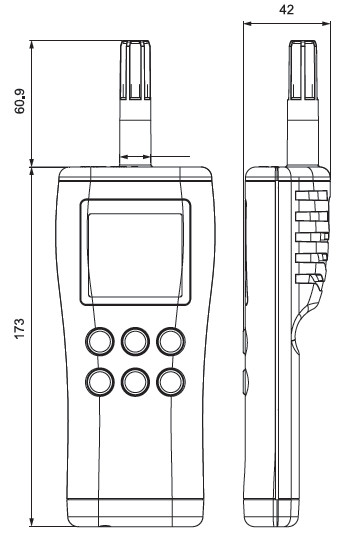

Dimensions
Technical Specifications
| Weight |
290 g |
|---|
| Dimensions |
76.7 x 41.8 x 233.9 mm |
|---|
| Range of application |
0…50 °C / 0.1…99.9 %RH, non-condensing |
|---|
| Accuracy at 23 ±5 °C |
±30 ppm ±5 % of the measured value, < 2.5 %RH (10...90 %RH), ±0.3 °K |
|---|
| Measuring range |
0…5000 ppm, 0.1...99.95 %RH, -20...60 °C |
|---|
| Measurement principle |
Non dispersive infrared (NDIR) with automatic baseline correction (ABC) |
|---|
| Adjustment points |
0, 400 ppm and 35, 80 %RH |
|---|
| Pressure dependence |
+1.6 % reading per kPa |
|---|
| Null drift |
< 10 ppm/year |
|---|
| Power supply |
4 x AA batteries / optional AC adapter AC1214 |
|---|
| Current consumption |
40 mA (typical) |
|---|
| Battery life |
50 h |
|---|
| Measured value memory |
18,000 values with time stamp, automatic recording (%RH / °C / ppm), 99 single values with time stamp, manual recording, (%RH / °C / DP / Tw / ppm) |
|---|
| Warm-up time |
< 1 min. |
|---|
| Long term stability |
< 1.5 %RH per year |
|---|
| Humidity sensor |
ROTRONIC HYGROMER® IN-1 |
|---|
| Temperature sensor |
Thermistor |
|---|
| Response time |
<10 sec @ 30 cc/min. flow, <3 min diffusion time |
|---|
| Response time t 63 |
<30 s, without filter |
|---|
| Calculations |
Dew point, wet bulb temperature |
|---|
| Parameters shown |
CO2, relative humidity and temperature |
|---|
| Clock |
Real time clock |
|---|
| Alarm functions |
Adjustable for CO2 measurement |
|---|
| Housing |
ABS |
|---|
| IP protection rating |
IP30 |
|---|
| CE / EMC conform |
2004/108/EC |
|---|
|
