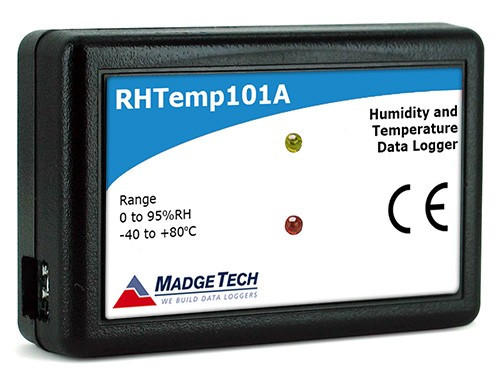

MadgeTech RHTemp101A Humidity Temperature Data Logger
|
Item Number: RHTemp101A
Manufacturer: MadgeTech
Part Number: RHTemp101A
Product Options
* denotes required field
NIST Traceable Calibration - Data Logger*
* Whole number only
|
|
MadgeTech RHTemp101A Humidity Temperature Data Logger
The RHTemp101A is one of MadgeTech’s series of low cost, state-of-the-art data loggers. MadgeTech has taken the lead in offering the most advanced, low cost, battery powered data loggers in the world today.
The RHTemp101A offers a 10 year battery life, a 1 second reading rate, a multiple start/stop function, ultra-high speed download capability, 500,000 readings per channel storage capacity, optional memory wrap, battery life indicator, optional password protection, programmable high-low humidity alarms and more. The RHTemp101A is priced at $149 each and can be delivered from stock now. Our research has shown that the RHTemp101A is second to no other data logger when it comes to price and performance.
Using the MadgeTech Software, starting, stopping and downloading from the RHTemp101A is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K,°R, %RH, mg/ml water vapor concentration and dew point. The data can also be automatically exported to Excel® for further calculations.
As the leader in low power data logger technology, MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The RHTemp101A was designed with our customers in mind. MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with the technology. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.
Features
- 10 Year Battery Life
- 1 second Reading Rate
- Multiple Start/Stop Function
- Ultra High Speed Download
- 1,000,000 Readings Per Channel, Storage Capacity
- Memory Wrap
- Precision RTD Sensing Element
- Battery Life Indicator
- Optional Password Protection
- Programmable High and Low Alarms
- N.I.S.T. Traceable
- Field Upgradeable
Technical Specifications
TEMPERATURE
| Temperature Sensor |
Precision RTD Element |
|---|
| Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
|---|
| Temperature Resolution |
0.01°C (0.018°F) |
|---|
| Temperature Calibrated Accuracy |
±0.5°C (±0.9°F) |
|---|
HUMIDITY
| Humidity Sensor |
Internal semiconductor |
|---|
| Humidity Range |
0~95% RH |
|---|
| Humidity Resolution |
0.1% RH |
|---|
| Humidity Calibrated Accuracy |
±3.0%RH (±2%RH typical at 25ºC/77°F) |
|---|
| RH Units |
%RH, dew pt., water vapor, concentration (mg/hl) |
|---|
GENERAL
| Memory |
500,000 readings per channel; software configurable memory wrap
250,000 readings in multiple start/stop mode |
|---|
| Reading Rate |
1 reading every second to 1 reading every 24 hours |
|---|
| Alarm |
Yes, Temperature |
|---|
| Baud Rate |
115,200 |
|---|
| LED Indicators |
Red & Green |
|---|
| Push-Button Start |
Yes |
|---|
| Battery Life |
10 years typical at a 15 minute reading rate |
|---|
| Material |
ABS plastic |
|---|
| Dimensions |
1.4" x 2.2" x 0.6" (36mm x 56mm x 16mm) |
|---|
| Operating Environment |
-40°C~+80°C (-40°F to +176°F), 0~95%RH non-condensing |
|---|
| Required Interface Package |
IFC200 |
|---|
| Approvals |
CE |
|---|
| Weight |
LBS |
|---|

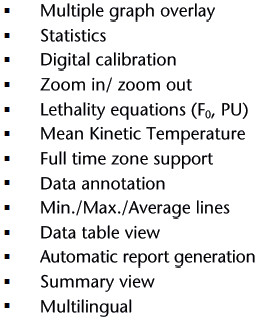

Software Features:
|
MadgeTech’s IFC200 interface cable communicates between stand alone data loggers and the MadgeTech software. Through this interface, loggers can be started, stopped or downloaded.
| |
